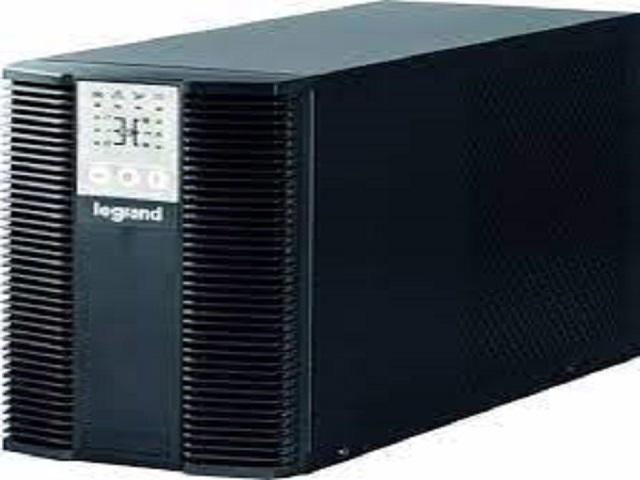

UPS Legrand Keor LP FR On-Line Doubla Conversie 1000VA 900
Prețul inițial a fost: 2,384.98 lei.2,110.40 leiPrețul curent este: 2,110.40 lei.
Stoc epuizat
Report Abuse
|
Keor LP SERIES |
|
||
|
On – Line Double Conversion, transformerless |
|||
|
EN 62040-3 CLASS = VFI |
|||
|
|
|||
|
Power factor correction PFC (>0,99) |
|
||
|
User friendly Led interface |
|
||
|
Wide input voltage range and frequency |
|||
|
Availability to configure as 50/60Hz Frequency Converter from LCD Panel |
|||
|
Smart communication port and SNMP management capability |
|||
|
Hot Swappable Battery |
|
||
|
Emergency shutdown control through EPO |
|||
|
Overload & short circuit protection |
|
||
|
Powerful Built-in Charger |
|
||
|
Cold start (DC power on) |
|
||
|
Extended back up time with battery cabinet |
|||
|
Advanced battery management (ABM) |
|||
|
RS232 and SNMP can be activated simultaneously |
|||
|
Compact size & light weight |
|
||
| Culoare |
Negru |
|---|---|
| Capacitate putere UPS |
900W |
| Greutate |
10 kg |
| RS-232 ports |
1 |
| Web-based management |
Yes |
| Management protocols |
SNMP |
| Audible alarm(s) |
Yes |
| Efficiency |
90% |
| Tip UPS: |
Online |
| Form factor |
Compact |
| Capacitate Rack: |
None |
| Ecran LCD: |
Nu |
| Port USB |
Nu |
| Output power |
900 W |
| Number of input phases |
1 |
| AC outlet types |
C13 coupler |
| Power plug |
C14 coupler |
| Serial interface |
Yes |
| Waveform |
Sine |
| Input operation voltage (max) |
300 V |
| Automatic battery test |
Yes |
| Emergency Power Off (EPO) |
Yes |
| Serial interface type |
RS-232 |
| Output power capacity |
1 kVA |
| Input frequency |
45/65 Hz |
| Battery capacity |
7 Ah |
| UPS topology |
Double-conversion (Online) |
| Crest factor |
3:1 |
| Input power factor |
0.99 |
| Emergency Power Off (EPO) connector |
Yes |
| Output operation voltage (max) |
230 V |
| AC outlets quantity |
4 AC outlet(s) |
| Input operation voltage (min) |
160 V |
| Output operation voltage (min) |
230 V |
| Output voltage regulation |
1% |
| Power factor |
0.98 |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Audible alarm modes |
Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| Number of type F outputs |
1 |
| Typical backup time at half load |
6 min |
| Protectie supratensiune |
Da |
| Montare in Rack |
Nu |
| Management |
Da |
| Display |
Da |
| Operating temperature (T-T) |
0 – 40 °C |
| Battery recharge time |
3 h |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Operating relative humidity (H-H) |
20 – 80% |
| Number of batteries supported |
2 |
| LED indicators |
Yes |
| Noise level |
50 dB |
| Battery voltage |
24 V |
| Depth |
14.4 mm |
| Height |
36.7 mm |
| International Protection (IP) code |
IP21 |
| Certification |
CE, EN 62040-1, EN 62040-2 |
| Weight |
10 kg |
| Schuko |
1 |
| Tip: |
Online |
| Tensiune de alimentare |
230 V |
| Alarme sonore |
Da |
| Putere |
1000 VA |
| Incarcare |
900 W |
| Baterie |
2 |
| Timp mediu de functionare |
5 min (100%) |
| Dimensiuni |
367 mm x 236 mm x 144 mm |
| IEC C13 |
3 |
| Producator |
LEGRAND |
