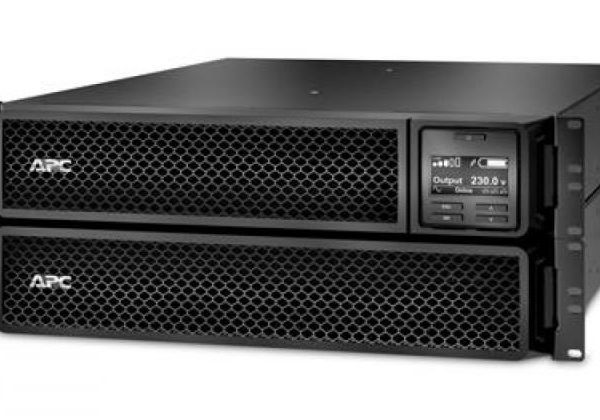

UPS APC Smart-UPS SRT online dubla-conversie 2200VA / 1980W 8

Name: UPS APC Smart-UPS SRT online dubla-conversie 2200VA / 1980W 8
SKU: SRT2200XLI
Availability: InStock

Prețul inițial a fost: 15,687.70 lei.Prețul curent este: 10,681.98 lei.

2 în stoc

Adaugă la favorite

SKU: SRT2200XLI Categorie: UPS

Descriere

APC Smart-UPS SRT 2200VA 230V

High density, double-conversion on-line power protection with scalable runtime

Includes: CD with software, Country-specific detachable power cord, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card

Output power capacity

1.98kWatts / 2.2kVA

Output Connections

(2) IEC 60320 C19 (Battery Backup)

(8) IEC 320 C13 (Battery Backup)

(8) IEC 60320 C13 (Battery Backup)

(2) IEC 320 C19 (Battery Backup)

(2) IEC Jumpers (Battery Backup)

Nominal Output Voltage

230V

Nominal Input Voltage

230V

Input Connections

BS1363A British, IEC 60320 C20, Schuko CEE 7 / EU1-16P

Cord Length

2.4meters

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion

Less than 2 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220, 240

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Internal bypass (automatic and manual)

Livrare

Informații suplimentare

Rackable	No
USB Port	Yes
Quick installation guide	Yes
Operating altitude	0 – 3000 m
Storage relative humidity (H-H)	0 – 95%
Web-based management	Yes
Surge protection	Yes
Audible alarm(s)	Yes
Tip UPS:	Online
Capacitate putere UPS	1980W
Capacitate Rack:	None
Ecran LCD:	Da
Port USB	Da
Output frequency	50/60 Hz
Serial interface	Yes
Waveform	Sine
Hot-swap battery	Yes
Automatic battery test	Yes
Cold start	Yes
Non-operating altitude	0 – 15000 m
Sustainability certificates	ENERGY STAR, Green Premium
Nominal output voltage	230 V
Nominal input voltage	230 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Emergency Power Off (EPO)	Yes
AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
Form factor	Rackmount/Tower
Auto-restart	Yes
Number of output IEC jumpers	2
SmartSlot	Yes
UPS topology	Double-conversion (Online)
Input operation voltage (min)	100 V
Input operation voltage (max)	275 V
Input frequency	40 – 70 Hz
Crest factor	3:1
AC outlets quantity	10 AC outlet(s)
Serial interface type	RJ-45
Bracket	Yes
Output power capacity	2.2 kVA
Output power	1980 W
Surge energy rating	340 J
Efficiency	92.2%
Battery capacity	367 VAh
Typical backup time at full load	3.9 min
Typical backup time at half load	11.6 min
Total carbon footprint (kg of CO2e)	3634.43
Interface	SmartSlot
UPS-Management	Yes
Operating temperature (T-T)	0 – 40 °C
Number of batteries supported	1
Software CD	Yes
Weight	2.5 kg
Battery recharge time	3 h
Battery technology	Sealed Lead Acid (VRLA)
Operating relative humidity (H-H)	0 – 95%
LED indicators	Yes
Warranty card	Yes
Harmonized System (HS) code	85078000
Display type	LCD
Height	43.2 mm
Width	85 mm
Battery life (max)	5 year(s)
Storage temperature (T-T)	-15 – 45 °C
Cables included	USB cable
International Protection (IP) code	IP20
Products per pallet	12 pc(s)
Package height	246 mm
Noise level	55 dB
Cable length	2.44 m
Certification	CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
Package width	599 mm
Depth	58.4 mm
Package depth	810 mm
Package weight	30.8 kg
Packaging content	Power cord Removable support feet
Producator	APC
Garantie	36
