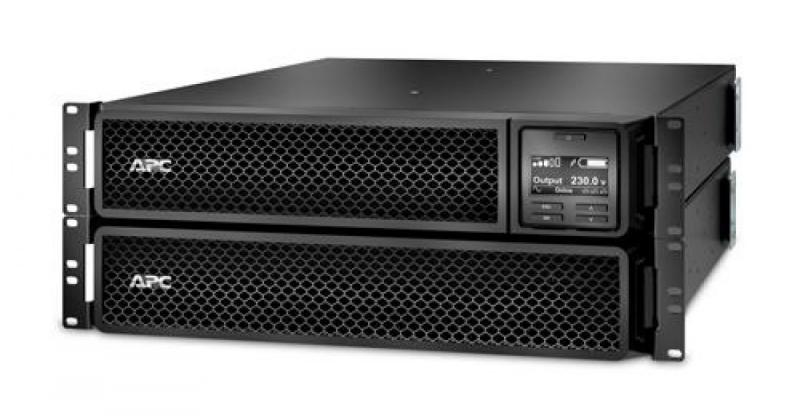

UPS APC Smart-UPS SRT online dubla-conversie 2200VA / 1980W 8

Name: UPS APC Smart-UPS SRT online dubla-conversie 2200VA / 1980W 8
SKU: SRT2200RMXLI
Availability: InStock

Prețul inițial a fost: 17,272.46 lei.Prețul curent este: 14,106.38 lei.

8 în stoc

Adaugă la favorite

SKU: SRT2200RMXLI Categorie: UPS

Descriere

APC Smart-UPS SRT 2200VA RM 230V

High density, double-conversion on-line power protection with scalable runtime

Includes: CD with software, Country-specific detachable power cord, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, USB cable, Warranty card

Output power capacity

1.98kWatts / 2.2kVA

Rack Height

Output Connections

(2) IEC 60320 C19 (Battery Backup)

(2) IEC Jumpers (Battery Backup)

(2) IEC 320 C19 (Battery Backup)

(8) IEC 60320 C13 (Battery Backup)

(8) IEC 320 C13 (Battery Backup)

Nominal Output Voltage

230V

Nominal Input Voltage

230V

Input Connections

BS1363A British, IEC 60320 C20, Schuko CEE 7 / EU1-16P

Cord Length

2.4meters

Output Voltage Distortion

Less than 2 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220, 240

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Built-in bypass

Livrare

Informații suplimentare

Culoare	Negru
Rackable	Yes
USB Port	Yes
Greutate	2.5 kg
Quick installation guide	Yes
Operating altitude	0 – 3000 m
Storage relative humidity (H-H)	0 – 95%
Web-based management	Yes
Rack mount kit	Yes
Surge protection	Yes
Audible alarm(s)	Yes
Tip UPS:	Online
Capacitate putere UPS	1980W
Capacitate Rack:	2U
Ecran LCD:	Da
Port USB	Da
Serial interface	Yes
Waveform	Sine
Output frequency regulation	50/60 Hz
Hot-swap battery	Yes
Automatic battery test	Yes
Cold start	Yes
Non-operating altitude	0 – 15000 m
Sustainability certificates	ENERGY STAR, Green Premium
Nominal output voltage	230 V
Nominal input voltage	230 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Emergency Power Off (EPO)	Yes
AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
Form factor	Rackmount/Tower
Rack capacity	2U
Auto-restart	Yes
Number of output IEC jumpers	2
SmartSlot	Yes
UPS topology	Double-conversion (Online)
Input operation voltage (min)	100 V
Input operation voltage (max)	275 V
Input frequency	40 – 70 Hz
Crest factor	3:1
AC outlets quantity	10 AC outlet(s)
Serial interface type	RJ-45
Bracket	Yes
Output power capacity	2.2 kVA
Output power	1980 W
Surge energy rating	340 J
Efficiency	92.2%
Battery capacity	367 VAh
Typical backup time at full load	3.9 min
Typical backup time at half load	11.6 min
Total carbon footprint (kg of CO2e)	3656.4
Protectie supratensiune	Da
UPS-Management	Yes
Display	Da
Operating temperature (T-T)	0 – 40 °C
Number of batteries supported	1
Software CD	Yes
Weight	2.5 kg
Battery recharge time	3 h
Battery technology	Sealed Lead Acid (VRLA)
Operating relative humidity (H-H)	0 – 95%
LED indicators	Yes
Harmonized System (HS) code	85078000
Display type	LCD
Battery life (max)	5 year(s)
Cables included	USB cable
International Protection (IP) code	IP20
Products per pallet	12 pc(s)
Package height	246 mm
Noise level	55 dB
Cable length	2.44 m
Certification	CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
Package width	599 mm
Width	432 mm
Depth	58.4 mm
Package depth	810 mm
Storage temperature (T-T)	-20 – 50 °C
Package weight	3.4 kg
Height	8.5 mm
Numar baterii	1
Tip:	Online
IEC C13	8
Alarme sonore	Da
IEC C19	2
Tensiune de alimentare	230V
Montare in Rack	2U
Baterie	Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Putere	2200 VA
Interfata	1x USB1 x RJ-451 x Serial DB-9 RS-232
Timp incarcare	3 h
Schuko	10
Management	Gestionare pe baza de Web
Capacitate baterie	367 VAh
Baterie inlocuitoare	APCRBC141
Timp mediu de functionare	11.6 minute
Dimensiuni	584 x 432 x 85 mm
Producator	APC
Garantie	36
