APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V, Line Interactive,3 ani

Name: APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V, Line Interactive,3 ani
SKU: SMX3000HV
Availability: OutOfStock

18,459.47 lei

Stoc epuizat

Adaugă la favorite

SKU: SMX3000HV Categorie: UPS

Descriere

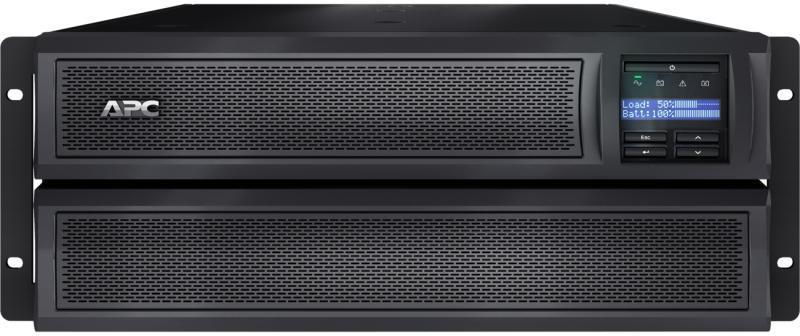

APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Includes: CD with software, Documentation CD, Rack mounting brackets, Smart UPS signalling RS-232 cable, USB cable, User manual

Output power capacity

2.7kWatts / 3.0kVA

Rack Height

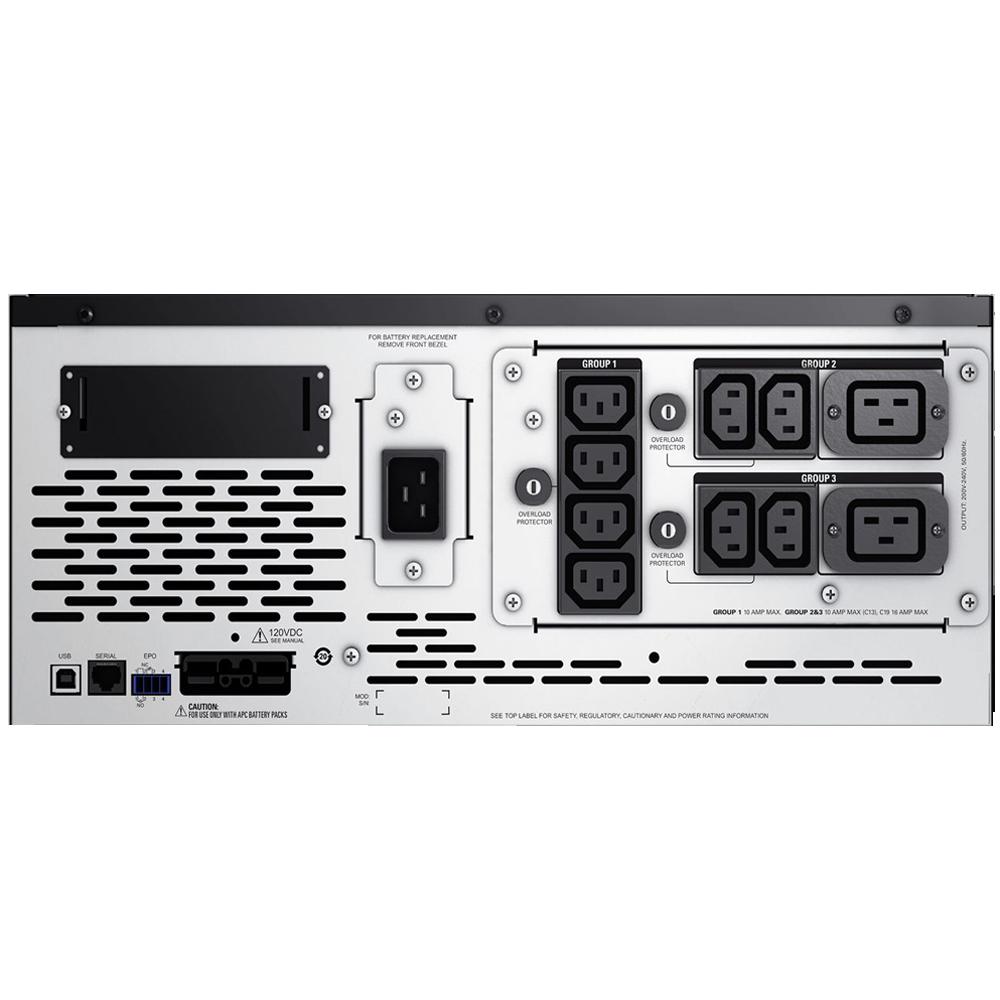

Output Connections

(2) IEC 320 C19 (Battery Backup)

(2) IEC Jumpers (Battery Backup)

(8) IEC 320 C13 (Battery Backup)

Nominal Output Voltage

230V

Nominal Input Voltage

208V, 230V

Input Connections

BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P

Cord Length

1.8meters

Output Voltage Distortion

Less than 5 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

208, 220, 240

Load Crest Factor

3 : 1

Topology

Line interactive

Waveform type

Sine wave

Transfer Time

6 ms typical : 10 ms maximum

Livrare

Informații suplimentare

Culoare	Negru
Quick installation guide	Yes
Operating altitude	0 – 3000 m
Storage relative humidity (H-H)	0 – 95%
Capacitate putere UPS	3000W
Rack mount kit	Yes
Surge protection	Yes
Audible alarm(s)	Yes
Tip UPS:	Line Interactive
Capacitate Rack:	4U
Ecran LCD:	Da
Port USB	Da
UPS topology	Line-Interactive
Input operation voltage (max)	280 V
Waveform	Sine
Output frequency regulation	50/60 Hz
Hot-swap battery	Yes
Automatic battery test	Yes
Non-operating altitude	0 – 15000 m
Nominal output voltage	230 V
Output power	2700 W
Output operation voltage (max)	240 V
Automatic Voltage Regulation (AVR)	Yes
Emergency Power Off (EPO)	Yes
AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
Form factor	Rackmount/Tower
Output power capacity	3 kVA
Auto-restart	Yes
Number of output IEC jumpers	2
SmartSlot	Yes
Crest factor	3:1
AC outlets quantity	10 AC outlet(s)
Rack capacity	4U
Output operation voltage (min)	208 V
Input operation voltage (min)	140 V
Surge energy rating	645 J
Hold time (min)	2 ms
Hold time (max)	10 ms
Efficiency	98.5%
Battery capacity	738 VAh
Typical backup time at full load	6.25 min
Typical backup time at half load	18 min
Total carbon footprint (kg of CO2e)	2447.6
Display	Da
Operating temperature (T-T)	0 – 40 °C
Software CD	Yes
Battery recharge time	3 h
Battery technology	Sealed Lead Acid (VRLA)
Operating relative humidity (H-H)	0 – 95%
Harmonized System (HS) code	85078000
Display type	LCD
LED indicators	Status
Height	43.2 mm
Battery life (max)	5 year(s)
Cable length	1.83 m
Storage temperature (T-T)	-15 – 45 °C
Cables included	RS-232, USB cable
Noise level	55 dB
Package height	330 mm
Products per pallet	6 pc(s)
Product colour	Black, Stainless steel
Width	178 mm
Depth	48.3 mm
Weight	38.6 kg
Package width	586 mm
Package depth	633 mm
Package weight	47.7 kg
Tip:	Line-interactive
Atentionari Baterie slaba	Da
Numar baterii	1
IEC C13	8
Atentionari Mod baterie	Da
Alarme sonore	Da
Putere	3000 VA
IEC C19	2
Tensiune de alimentare	230V
Baterie	Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Incarcare	2,7 kW
Timp incarcare	3 ore
Altii	2x IEC Jumpers
Montare in Rack	Da4U
Timp de transfer	2 – 4 ms
Interfata	SmartSlot
Capacitate baterie	738 VAh
Baterie inlocuitoare	APCRBC143
Timp mediu de functionare	110 min @270W6.3 min @2700W
Dimensiuni	432 x 178 x 483 mm
Greutate	38.64 Kg
Producator	APC
Garantie	36
