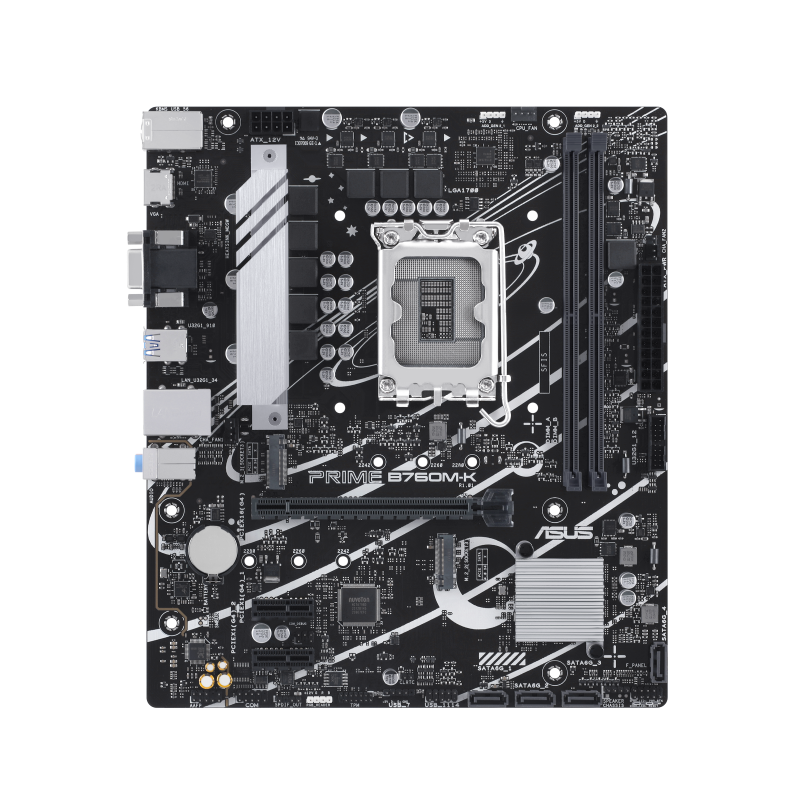

Placa de baza ASUS PRIME B760M-K, Socket 1700, DDR5, Micro-ATX

Name: Placa de baza ASUS PRIME B760M-K, Socket 1700, DDR5, Micro-ATX
SKU: PRIME B760M-K
Availability: InStock

Prețul inițial a fost: 676.90 lei.Prețul curent este: 568.83 lei.

40 în stoc

Adaugă la favorite

SKU: PRIME B760M-K Categorie: Placi de baza

Descriere

Placa de baza ASUS PRIME B760M-K LGA 1700, 2x DDR5, 1x VGA 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 4.0 x1, 2x M.2, 4x SATA 6GB/s, mATX

Livrare

Informații suplimentare

PCI	0
Serial-or-Paralel	No/No
Video-Connection	VGA/HDMI
Wi-FI	No
USB3	4-8
PCI-Ex16	1
Onboard-CPU	No
RAID support	Yes
Component for	PC
Memory channels	Dual-channel
Processor manufacturer	Intel
Ethernet LAN	Yes
HDMI ports quantity	1
Maximum internal memory	96 GB
USB 2.0 ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Audio output channels	7.1 channels
PCI Express x16 (Gen 4.x) slots	1
Number of memory slots	2
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	2
S/PDIF out port	Yes
VGA (D-Sub) ports quantity	1
Parallel processing technology support	Not supported
DVI-D ports quantity	0
Windows operating systems supported	Windows 10 x64, Windows 11
Model Chipset	B760
Gaming	Nu
Soclu Procesor	Socket 1700
Tip Memorie:	DDR5
Numar sloturi memorie	2
Memorie maxima	96 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
Supported memory types	DDR5-SDRAM
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
TPM connector	Yes
RGB LED pin header	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Motherboard chipset family	Intel
Processor socket	LGA 1700
Maximum number of SMP processors	1
Supported processor sockets	LGA 1700
12V power connector	Yes
ECC сompatibility	Non-ECC
Number of storage drives supported	6
S/PDIF out connector	Yes
Number of COM connectors	1
Motherboard chipset	Intel B760
BIOS memory size	128 Mbit
Number of chassis fan connectors	1
PCI Express x1 (Gen 4.x) slots	2
Supported memory clock speeds	8000,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
MB-Socket	1700
MB-Format	micro-ATX
PCI-Ex1	2
RAM-Slots	2
Cables included	SATA
Width	244 mm
Package width	270 mm
Package height	51.5 mm
Package depth	263 mm
Package weight	1.01 kg
Depth	21.1 mm
Format	Micro-ATX
Producator	ASUS
Garantie	36
