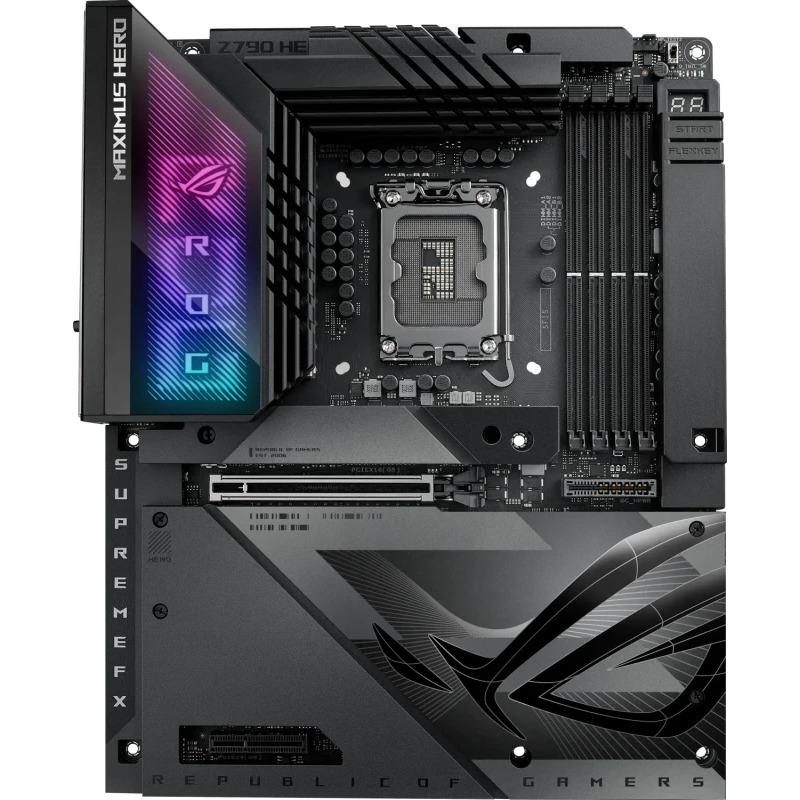

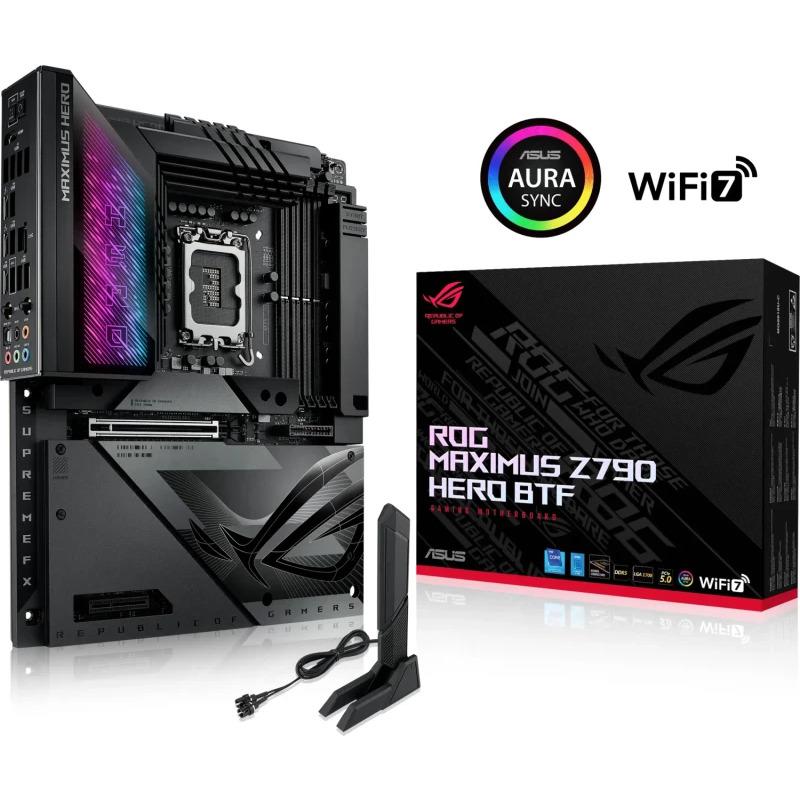

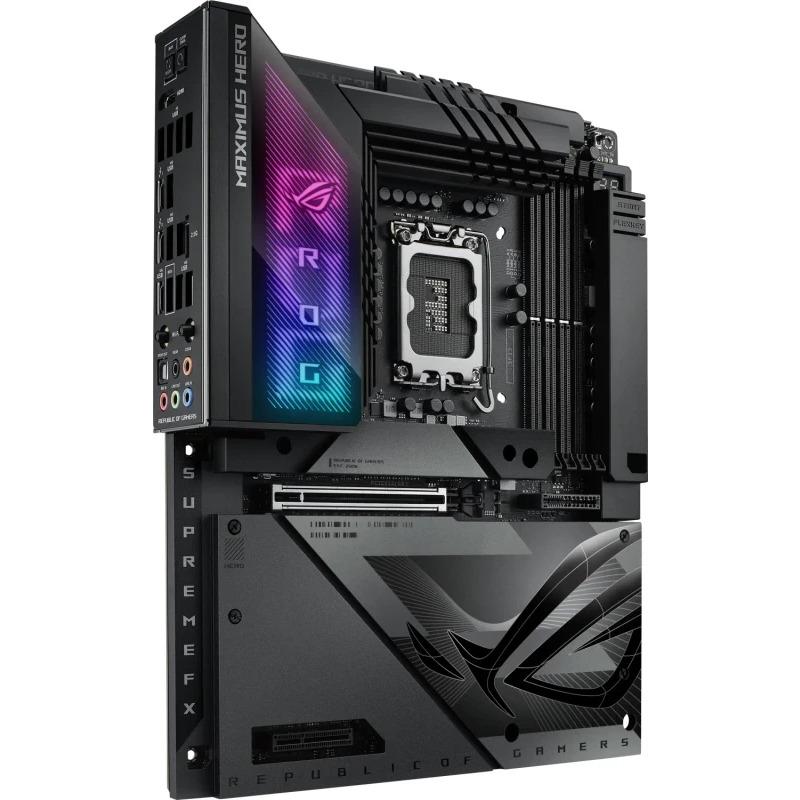

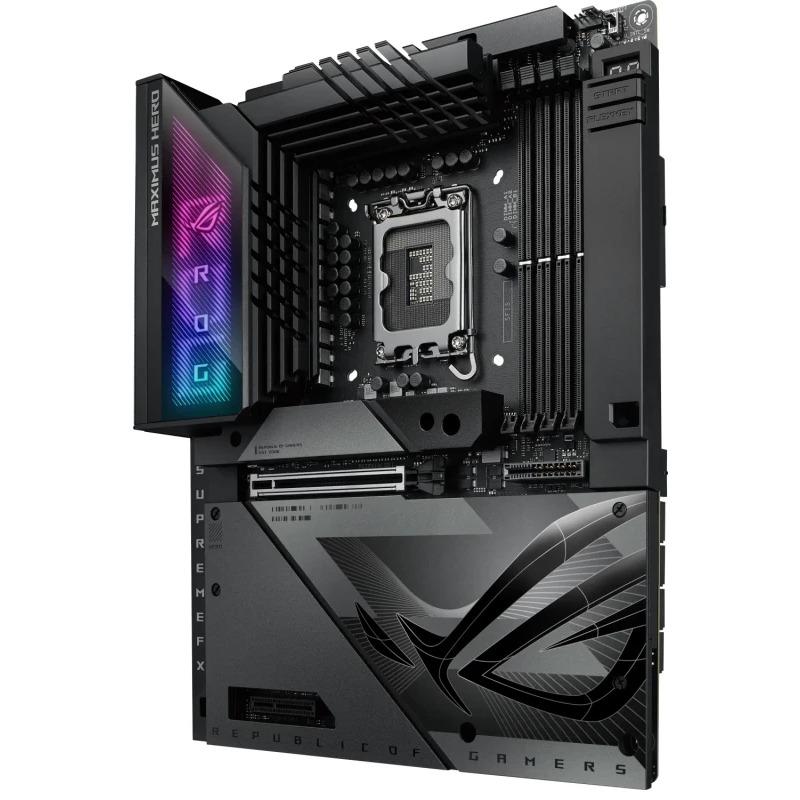

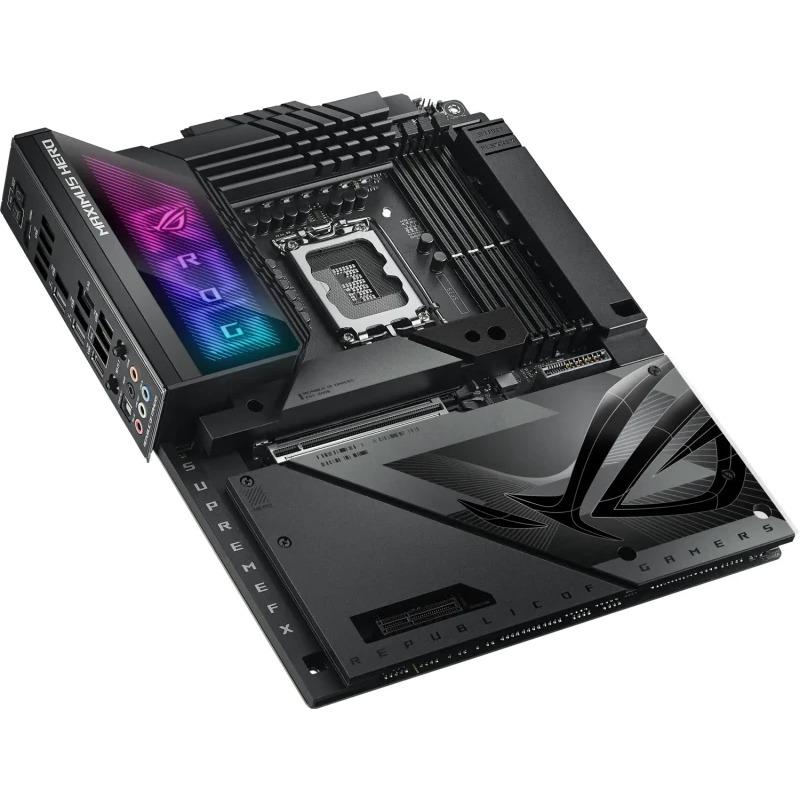

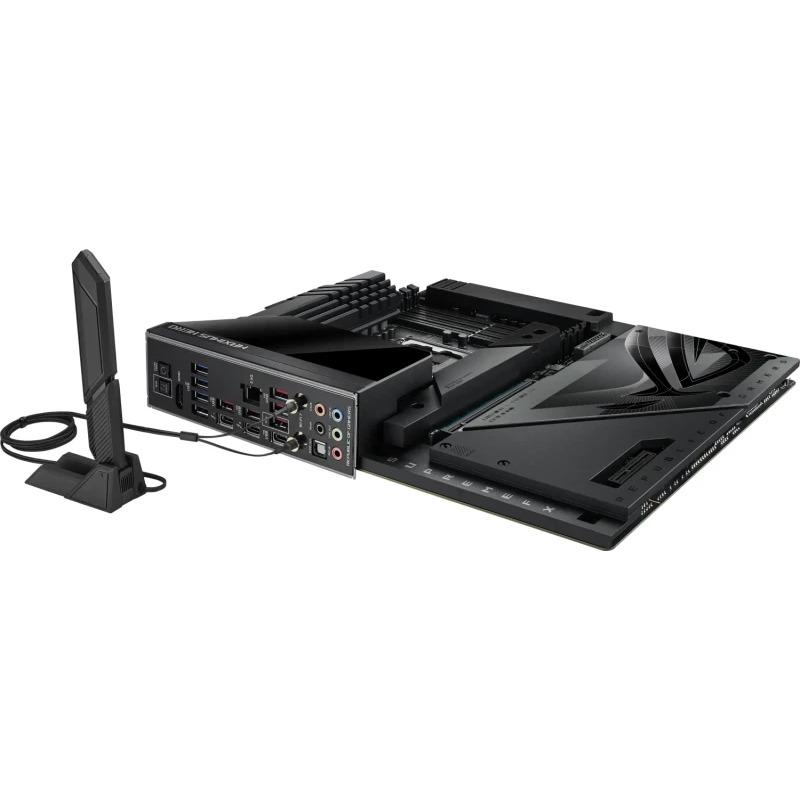

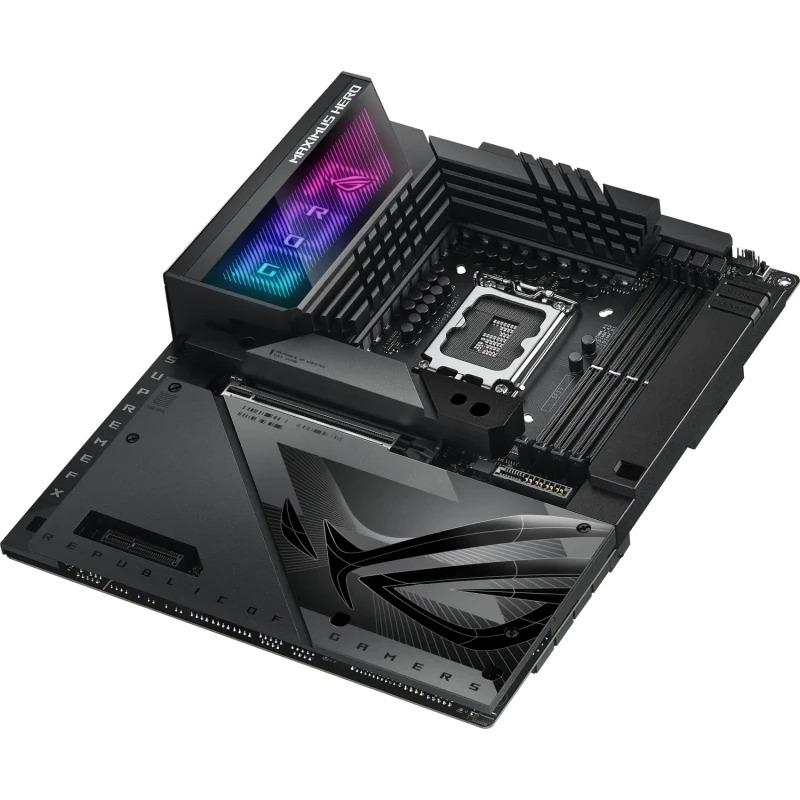

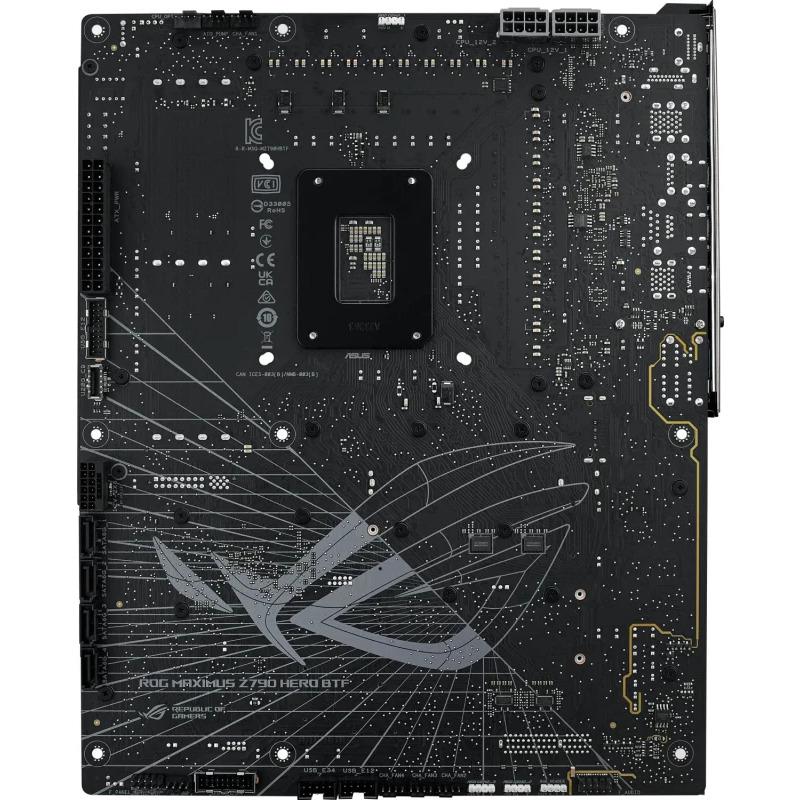

Placa de bază ASUS ROG MAXIMUS Z790 HERO BTF LGA1700

Name: Placa de bază ASUS ROG MAXIMUS Z790 HERO BTF LGA1700
SKU: ROG MAXIMUS Z790 HERO BTF
Availability: OutOfStock

5,536.22 lei

Stoc epuizat

Adaugă la favorite

SKU: ROG MAXIMUS Z790 HERO BTF Categorie: Placi de baza

Descriere

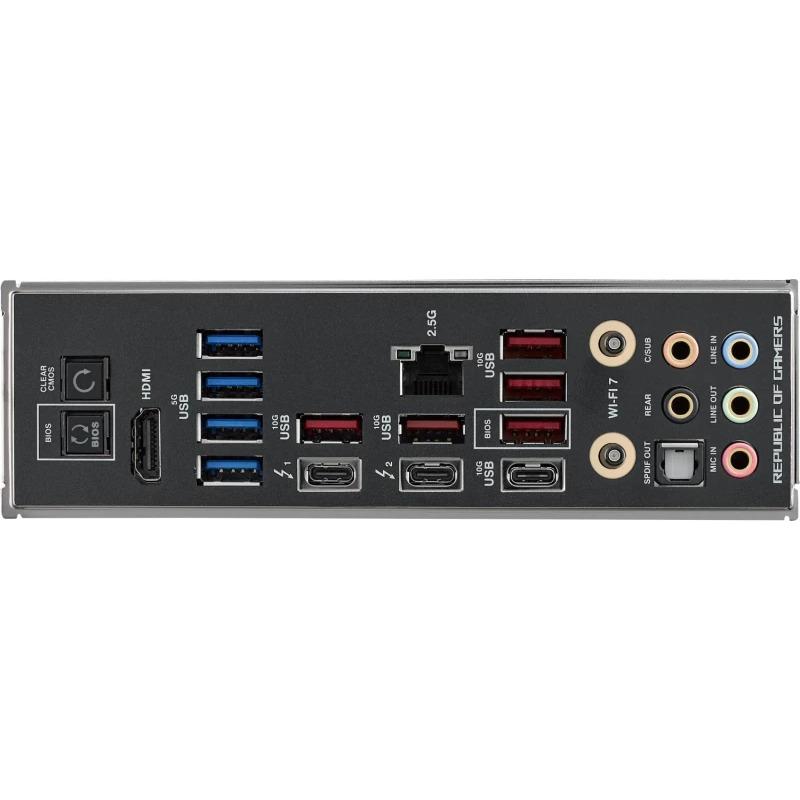

Placa de baza ASUS ROG MAXIMUS Z790 HERO BTF LGA1700, 4x DDR5, 1x PCIE 5.0 1x PCIE 4.0, 1x HDMI 2x Intel Thunderbolt, 5x M.2, 4x SATA 6GB/s, ATX

Livrare

Informații suplimentare

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	Yes
Onboard-CPU	No
RAID support	Yes
Component for	PC
Windows operating systems supported	Windows 10, Windows 11
Thunderbolt ports quantity	2
Memory channels	Dual-channel
Processor manufacturer	Intel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Audio output channels	7.1 channels
Line-in	Yes
PCI Express x16 (Gen 5.x) slots	1
PCI Express x4 (Gen 4.x) slots	1
On-board graphics card	No
Supported storage drive types	HDD & SSD
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
S/PDIF out port	Yes
Maximum internal memory	192 GB
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
Drivers included	Yes
Model Chipset	Z790
Gaming	Da
Format	ATX
Soclu Procesor	Socket 1700
Tip Memorie:	DDR5
Numar sloturi memorie	4
Memorie maxima	192 GB
Tip slot interfata grafica	PCIe 5.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
USB Type-C	Da
HDMI	Da
Thunderbolt	Da
Sloturi M.2	5
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of SATA connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
mSATA ports quantity	0
Supported memory types	DDR5-SDRAM
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
Number of chassis fan connectors	4
RGB LED pin header	Yes
WiFi-AP antenna jack	2
Ethernet interface type	2.5 Gigabit Ethernet
Motherboard form factor	ATX
Motherboard chipset family	Intel
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
Number of storage drives supported	9
USB 3.2 Gen 2x2 connectors	1
12V power connector	Yes
Number of M.2 (M) slots	5
Clear CMOS button	Yes
ECC сompatibility	Non-ECC
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Back-to-BIOS button	Yes
Motherboard chipset	Intel Z790
Audio Chip	Realtek ALC4082
Supported memory clock speeds	4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,8000 MHz
Microphone in	Yes
Headphone outputs	1
Bluetooth	Yes
Product colour	Black
Bluetooth version	5.4
Ethernet LAN (RJ-45) ports	1
Cables included	SATA
Power source type	ATX
Width	30.5 mm
Depth	24.4 mm
Producator	ASUS
Garantie	36
