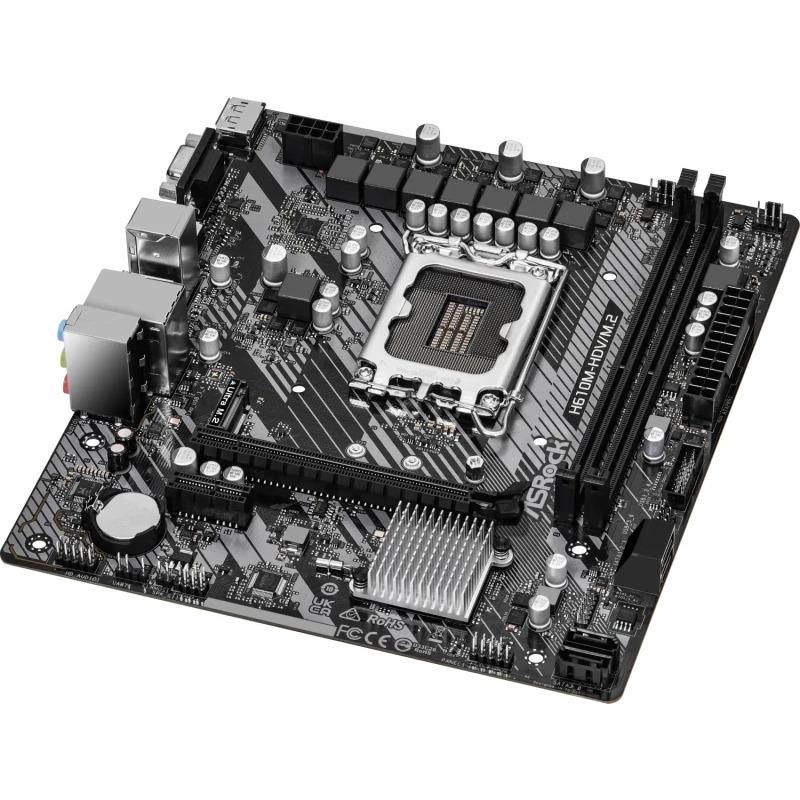

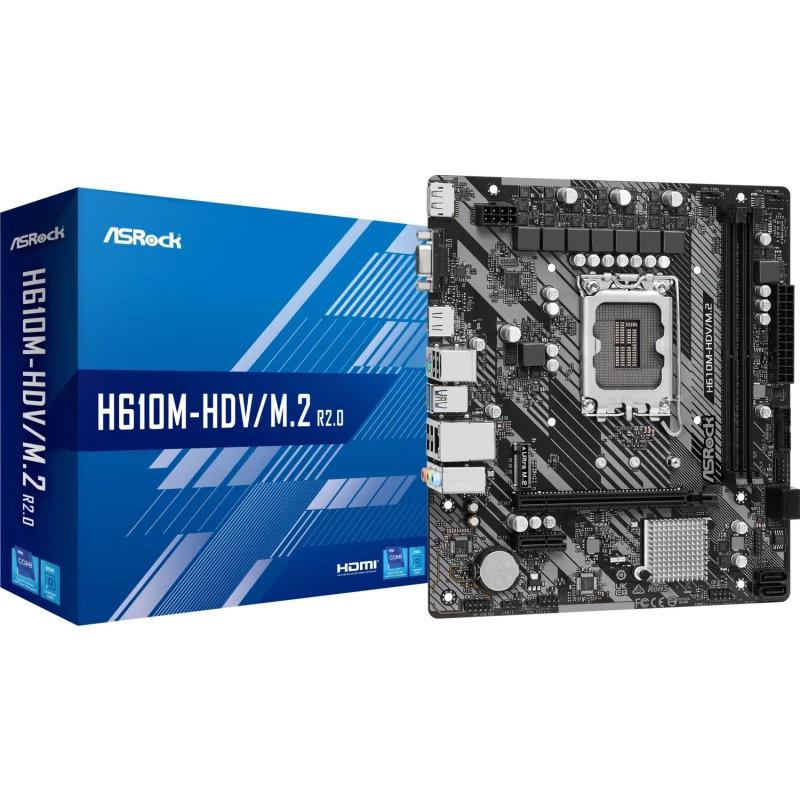

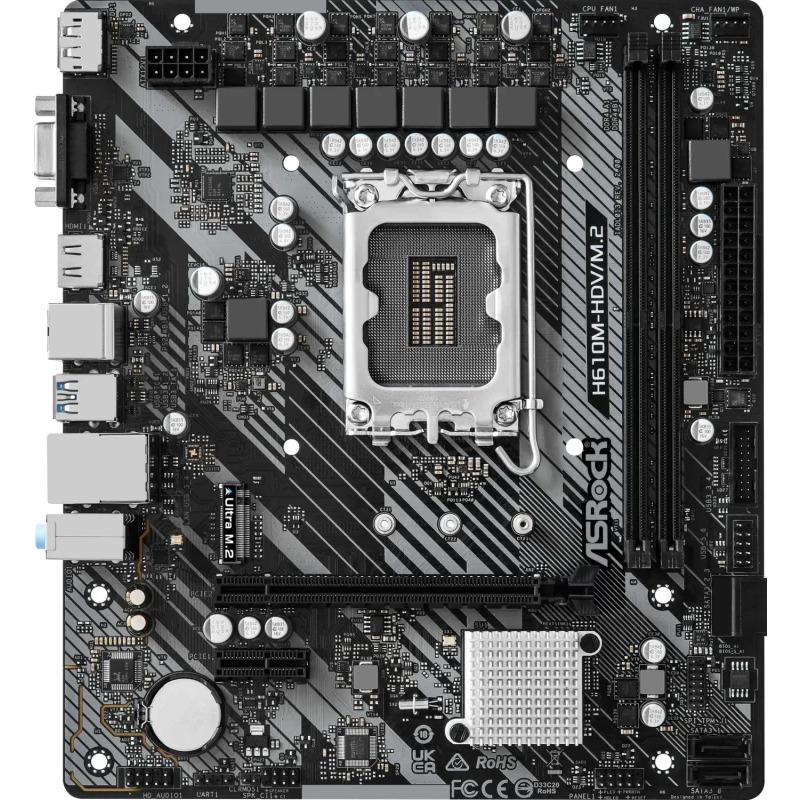

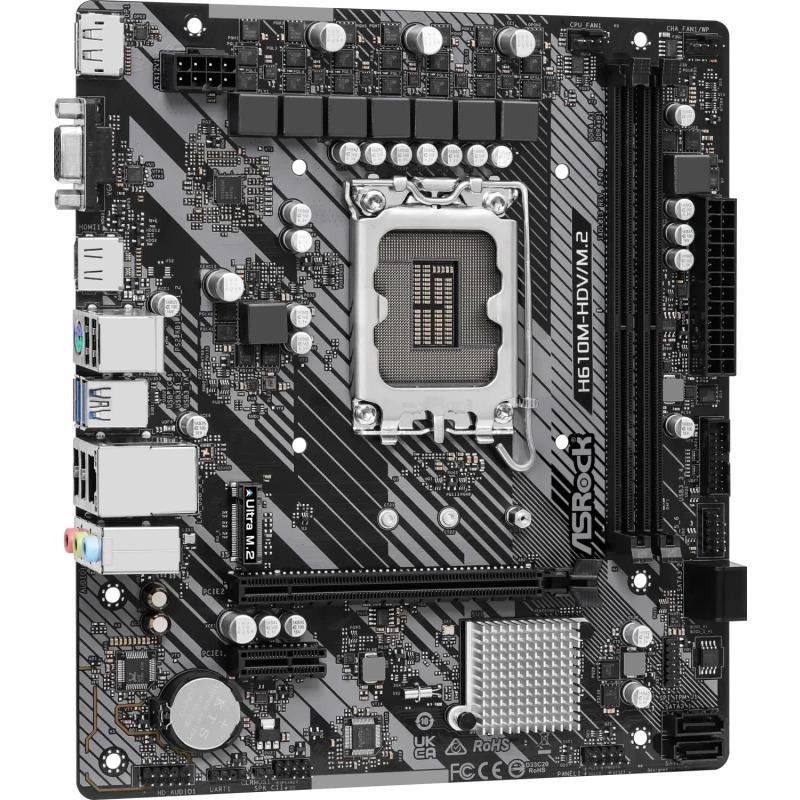

Placa de bază ASRock H610M-HDV/M.2 R2.0 LGA1700

Name: Placa de bază ASRock H610M-HDV/M.2 R2.0 LGA1700
SKU: H610M-HDV/M.2 R2.0
Availability: OutOfStock

449.90 lei

Stoc epuizat

Adaugă la favorite

SKU: H610M-HDV/M.2 R2.0 Categorie: Placi de baza

Descriere

Placa de baza ASROCK H610M-HDV/M.2 R2.0 LGA1700, 2x DDR4, 1x PCIE 4.0 x16 1x PCIE 3.0 x1 1x Ultra M.2 4x SATA 6GB/s, mATX

Livrare

Informații suplimentare

PCI	0
Serial-or-Paralel	No/No

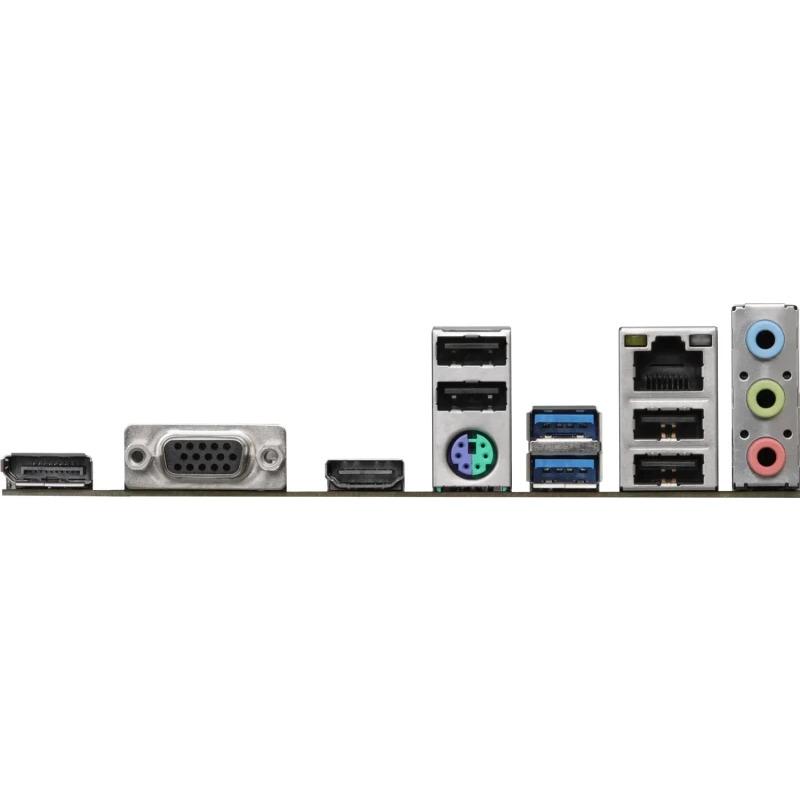

Video-Connection	HDMI/DP
Wi-FI	No
Onboard-CPU	No
Component for	PC
Wake-on-LAN ready	Yes
DisplayPort version	1.4
USB connector type	USB Type-A
Memory channels	Dual-channel
Processor manufacturer	Intel
Maximum internal memory	64 GB
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Graphics card family	Intel
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
Audio output channels	7.1 channels
PCI Express x1 (Gen 3.x) slots	1
Line-in	Yes
Audio Chip	Realtek ALC897
PCI Express x16 (Gen 4.x) slots	1
Number of memory slots	2
Supported storage drive types	HDD & SSD
Supported memory types	DDR4-SDRAM
LAN controller	Realtek RTL8111H
Number of M.2 (M) slots	1
VGA (D-Sub) ports quantity	1
HDCP	Yes
Screws included	Yes
Sustainability certificates	ErP
DisplayPorts quantity	1
Maximum resolution	7680 x 4320 pixels
Parallel processing technology support	Not supported
DVI-D ports quantity	0
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Drivers included	Yes
Model Chipset	H610
Gaming	Nu
Format	Micro-ATX (mATX)
Soclu Procesor	Socket 1700
Tip Memorie:	DDR4
Numar sloturi memorie	2
Memorie maxima	64 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	1
RJ-45 LAN	1
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
Number of HDDs supported	4
TPM connector	Yes
Motherboard chipset family	Intel
System Management BIOS (SMBIOS) version	2.7
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
Discrete graphics support	Yes
12V power connector	Yes
BIOS memory size	128 Mbit
Chassis intrusion connector	Yes
USB 2.0 connectors	1
ACPI version	6.0
Number of storage drives supported	5
Number of chassis fan connectors	1
Supported memory clock speeds	3200 MHz
ECC сompatibility	ECC
Motherboard chipset	Intel H610
Graphics card	Intel Iris Xe Graphics
PC health monitoring	CPU, Fan, Voltage, Water cooling
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Compatible processor series	Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
USB Type-C	N/A
Microphone in	Yes
Headphone outputs	1
Ethernet LAN (RJ-45) ports	1
Cables included	SATA
Product colour	Black, Grey, Silver
Width	220 mm
Depth	193 mm
Compliance certificates	CE, EuP, Federal Communications Commission (FCC)
Certification	– FCC, CE – ErP/EuP ready
Producator	ASROCK
Garantie	36
