Descriere

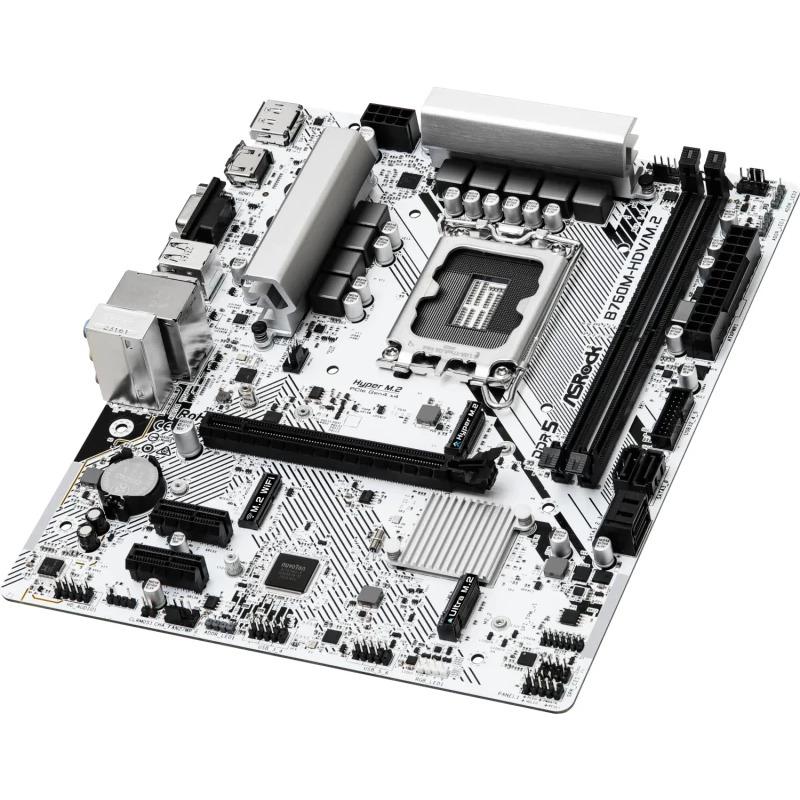

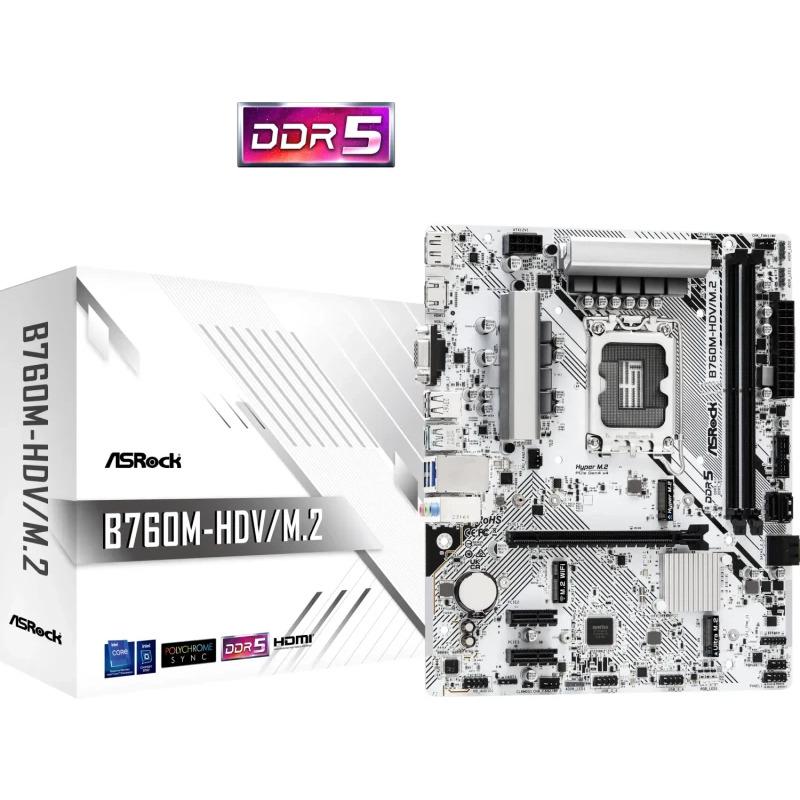

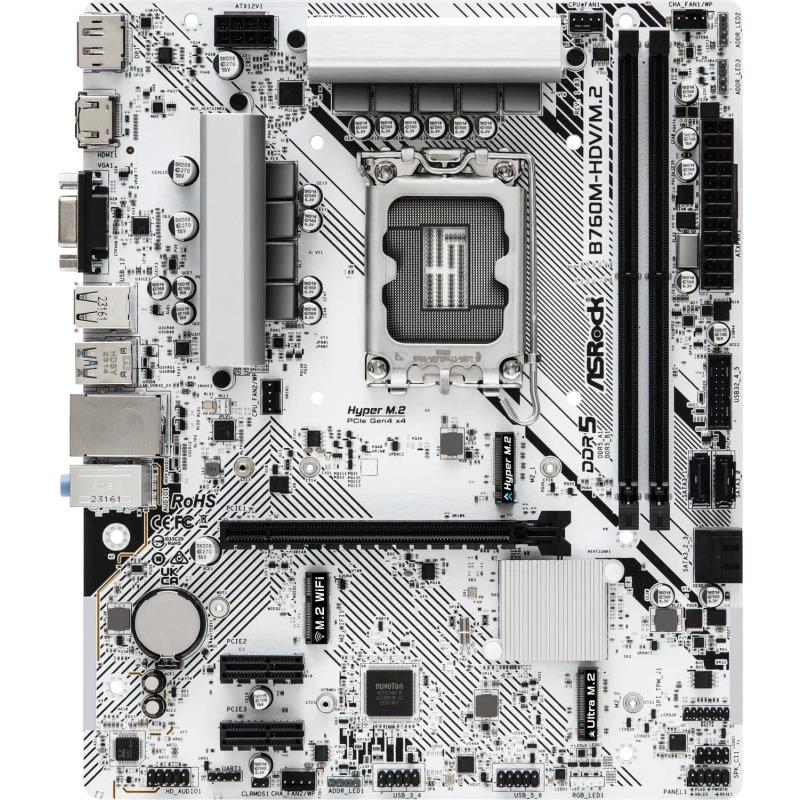

Placa de baza ASROCK B760M-HDV/M.2 LGA1700, 2x DDR5, 1x HDMI 1X DP 1X D- Sub, 1x PCIE 4.0 x16 2x PCIE 3.0 x1 1x M.2 1x Hyper M.2 1x Ultra M.2, 4x SATA 6GB/s, mATX
Livrare
Informații suplimentare
| PCI |
0 |
|---|---|
| Serial-or-Paralel |
No/No |
| Video-Connection |
HDMI/DP |
| Wi-FI |
No |
| USB3 |
4-8 |
| PCI-Ex1 |
1 |
| Onboard-CPU |
No |
| RAID support |
Yes |
| Component for |
PC |
| DisplayPort version |
1.4 |
| Memory channels |
Dual-channel |
| Processor manufacturer |
Intel |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
1 |
| Maximum internal memory |
96 GB |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| PCI Express x1 (Gen 3.x) slots |
2 |
| Audio output channels |
7.1 channels |
| Line-in |
Yes |
| Audio Chip |
Realtek ALC897 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| Number of memory slots |
2 |
| Number of M.2 (M) slots |
1 |
| VGA (D-Sub) ports quantity |
1 |
| Screws included |
Yes |
| DisplayPorts quantity |
1 |
| Parallel processing technology support |
Not supported |
| DVI-D ports quantity |
0 |
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| Model Chipset |
B760 |
| Gaming |
Nu |
| Soclu Procesor |
Socket 1700 |
| Tip Memorie: |
DDR5 |
| Numar sloturi memorie |
2 |
| Memorie maxima |
96 GB |
| Tip slot interfata grafica |
PCIe 4.0 x16 |
| Chipset audio integrat |
Realtek |
| Canale audio |
7.1 |
| Wireless |
Nu |
| Bluetooth |
Nu |
| USB Type-C |
Da |
| HDMI |
Da |
| Thunderbolt |
Nu |
| Sloturi M.2 |
1 |
| RJ-45 LAN |
1 |
| Memory slots type |
DIMM |
| Unbuffered memory |
Yes |
| Supported storage drive interfaces |
M.2, SATA III |
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| Number of SATA III connectors |
4 |
| Front panel audio connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| Motherboard form factor |
micro ATX |
| Supported memory types |
DDR5-SDRAM |
| RAID levels |
0, 1, 5, 10 |
| TPM connector |
Yes |
| RGB LED pin header |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Motherboard chipset family |
Intel |
| Processor socket |
LGA 1700 |
| ECC сompatibility |
Non-ECC |
| Motherboard chipset |
Intel B760 |
| BIOS memory size |
128 Mbit |
| LAN controller |
Dragon RTL8125BG |
| BIOS type |
EFI AMI |
| MB-Socket |
1700 |
| MB-Format |
micro-ATX |
| RAM-Slots |
2 |
| PCI-Ex16 |
2 |
| Microphone in |
Yes |
| Depth |
201 mm |
| Cables included |
SATA |
| Width |
244 mm |
| Format |
Micro-ATX |
| Producator |
ASROCK |
| Garantie |
