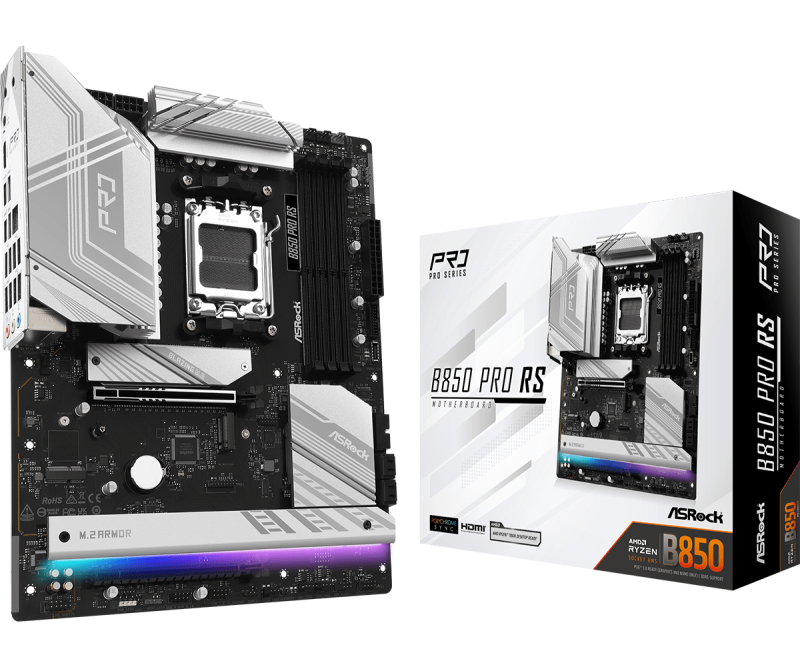

Placa de baza ASRock B850 Pro RS, Socket AM5, DDR5,
1,370.03 lei
Stoc epuizat
Descriere
Placa de Baza ASROCK B850 PRO RS AM5, 4x DDR5, 1x HDMI 1x USB3.2, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 5x M.2, 2x SATA 6GB/s, ATX
Informații suplimentare
| PCI |
0 |
|---|---|
| Serial-or-Paralel |
No/No |
| Video-Connection |
HDMI |
| Wi-FI |
No |
| Onboard-CPU |
No |
| RAID support |
Yes |
| Component for |
PC |
| Memory channels |
Dual-channel |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
1 |
| Processor manufacturer |
AMD |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| Audio output channels |
7.1 channels |
| Line-in |
Yes |
| PCI Express x16 (Gen 5.x) slots |
1 |
| Audio Chip |
Realtek ALC897 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| Number of M.2 (M) slots |
1 |
| VGA (D-Sub) ports quantity |
0 |
| DVI-D ports quantity |
0 |
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| Model Chipset |
B850 |
| Gaming |
Nu |
| Format |
ATX |
| Soclu Procesor |
Socket AM5 |
| Tip Memorie: |
DDR5 |
| Numar sloturi memorie |
4 |
| Memorie maxima |
256 GB |
| Tip slot interfata grafica |
PCIe 5.0 x16 |
| Chipset audio integrat |
Realtek |
| Canale audio |
7.1 |
| Wireless |
Nu |
| Bluetooth |
Nu |
| USB Type-C |
Da |
| HDMI |
Da |
| Thunderbolt |
Nu |
| Sloturi M.2 |
5 |
| RJ-45 LAN |
1 |
| Number of memory slots |
4 |
| Memory slots type |
DIMM |
| Supported storage drive interfaces |
M.2, SATA III |
| USB 2.0 connectors |
2 |
| Number of SATA III connectors |
4 |
| Front panel audio connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| Motherboard chipset family |
AMD |
| BIOS type |
UEFI AMI |
| BIOS memory size |
256 Mbit |
| Supported memory types |
DDR5-SDRAM |
| Maximum internal memory |
256 GB |
| Number of CPU fan connectors |
2 |
| Number of chassis fan connectors |
4 |
| Number of EPS power connectors (8-pin) |
2 |
| TPM connector |
Yes |
| RGB LED pin header |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Motherboard form factor |
ATX |
| USB 3.2 Gen 2x2 connectors |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| RAID levels |
0, 1, 10 |
| Processor socket |
Socket AM5 |
| Compatible processor series |
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| LAN controller |
Dragon RTL8125BG |
| Motherboard chipset |
AMD B850 |
| USB 2.0 ports quantity |
6 |
| ECC сompatibility |
ECC |
| Microphone in |
Yes |
| Cables included |
SATA |
| Width |
30.5 mm |
| Depth |
24.4 mm |
| Producator |
ASROCK |
| Garantie |
