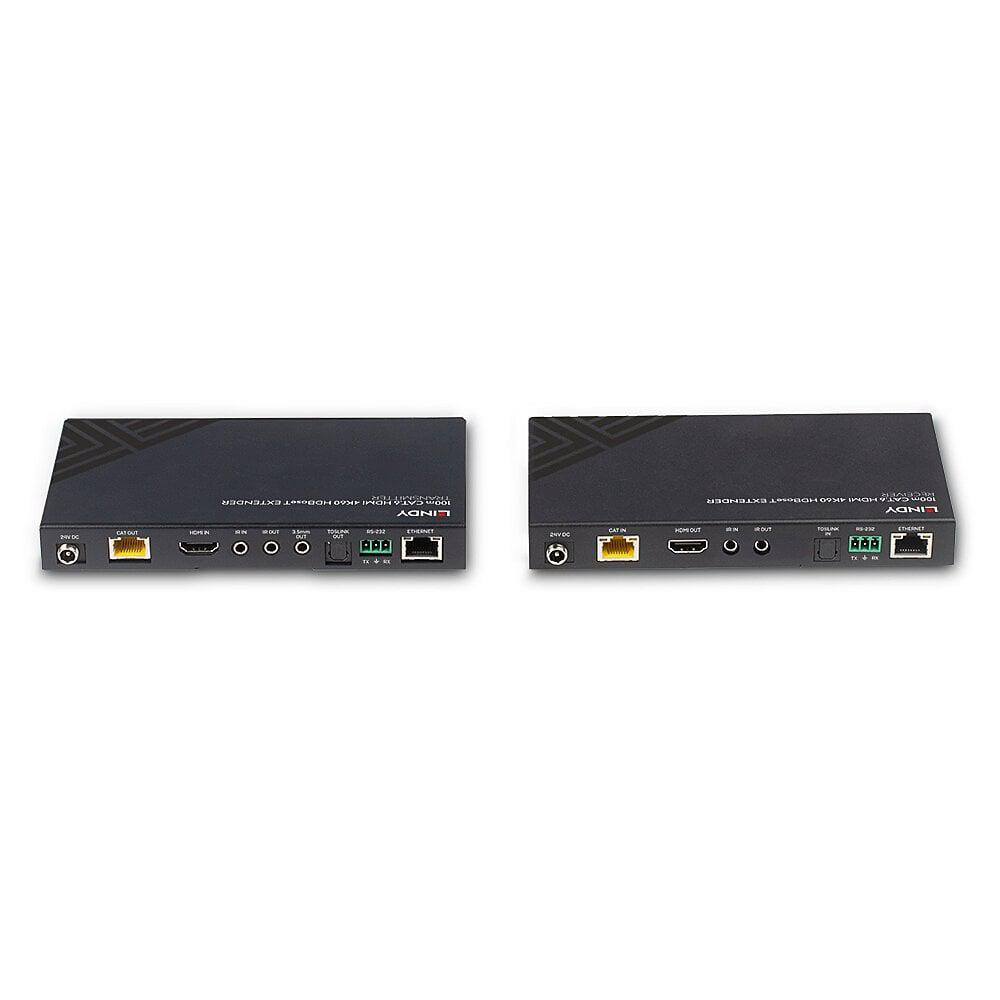

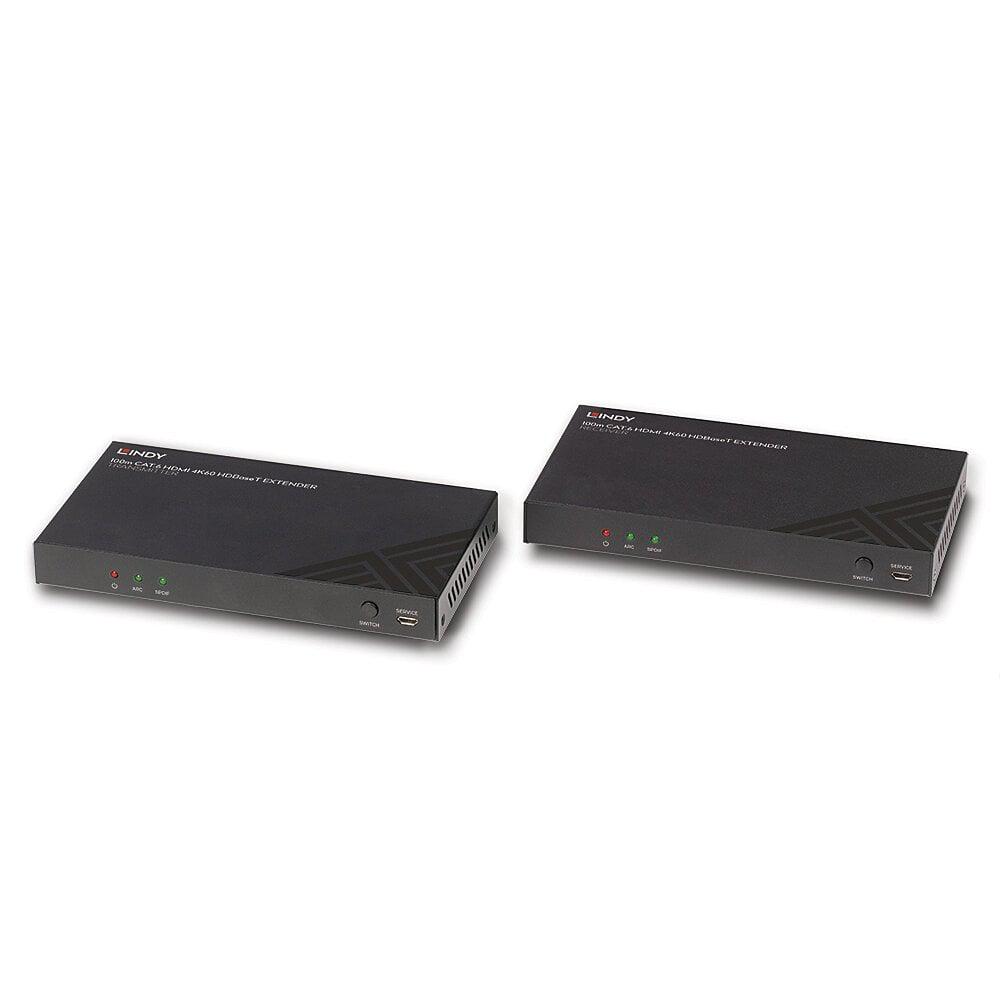

Lindy 100m Cat.6 HDMI 4K60 HDBaseT Extender Description Distributes HDMI resolutions up to 100m over Cat.6 network cable via HDBaseT technology Supports HDMI 18G resolutions up to 4K@60Hz 4:4:4, with additional support for HDR ARC Support as well as RS-232, CEC & Ethernet pass-through & bi- directional IR for simple control Supports PoC (Power over cable), requiring a power supply connection from only one side of the installation Technical details Specifications AV Interface: HDMI Interface Standard: HDMI 2.0 Supported Bandwidth: 18 Gbps Maximum Distance: 70m (229.66ft) – 3840×2160@60Hz 4:4:4 8bit 100m (328.08ft) – 1920×1080@60Hz Maximum Resolution: 3840×2160@60Hz 4:4:4 8bit HDCP Support: 2.2 EDID Pass Through: Pass-through Supported Audio: HDMI Audio Pass-through TosLink (Optical) Up to 5.1Ch 3.5mm Up to 2.0Ch Separate Audio Ports: TosLink (Optical), 3.5mm IR Support: 20 – 60KHz CEC Support: Pass-through Serial Interface: RS-232 Transmission Protocol: HDBaseT Transmission Medium: 1 x Cat.6 Laser Class (only for Fibre): – Wavelength (only for Fibre): – Chipset: VS2310TX-A1 Special Features: HDMI Loop Out Port PoC (Power over Cat.6) ARC Support Connectors Transmitter Input: HDMI Type A (Female), 3.5mm IR (Female) Transmitter Output: RJ-45 (Female), TosLink (Optical) (Female), 3.5mm Audio (Female), 3.5mm IR (Female) Receiver Input: RJ-45 (Female), Toslink (Optical) (Female), 3.5mm IR (Female) Receiver Output: HDMI Type A (Female), 3.5mm IR (Female) Bi-directional Ports: RS-232 3-Pin Terminal Block, RJ-45 Ethernet (Female) Power: 5.5/2.1mm Physical Properties Dimensions (approx.) WxDxH: 163x90x16mm (6.42×3.54×0.63in) per unit Housing Material: Metal Net Weight: 0.77kg (1.7lb) Operating Temperature : 0°C – 40°C (32°F – 104°F) Storage Temperature: -20°C – 60°C (-4°F – 140°F) Humidity: 20 – 90% RH (non-condensing) Power Requirements: 24VDC 1A Colour: Black Miscellaneous Packaging Type: Carton Box Packaging Dimensions: 265x70x210mm (10.43×2.76×8.27in) Gross Weight: 1.28kg (2.82lb) Warranty (Years): 2 Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65 Package Contents HDBaseT HDMI Extender, Transmitter HDBaseT HDMI Extender, Receiver IR Emitter Cable, 1.5m IR Receiver Cable, 1.5m 4 x Mounting Ears & 8 x Screws 2 x 3-Pin Terminal Block Multi-country Power Supply (UK, EU, US & AUS) Lindy Manual Purchasing Information No.: 38340 EAN: 4002888383400 https://www.lindy-international.com/100m-Cat-6-HDMI-4K60-Audio-IR-RS- 232-HDBaseT-Extender-.htm?websale8=ld0101.ld021102&pi=38340 &ci=10
| Material |
Metal |
|---|---|
| Connectivity technology |
Wired |
| Maximum refresh rate |
60 Hz |
| USB 2.0 ports quantity |
2 |
| Maximum digital resolution |
3840 x 2160 pixels |
| USB port type |
USB Type-A |
| Maximum transfer distance |
100 m |
| AC adapter output current |
1 A |
| Cable types supported |
Cat6 |
| RJ-45 ports quantity (transmitter) |
1 |
| RJ-45 ports quantity (receiver) |
1 |
| Transmitter video port type |
HDMI |
| Receiver local video port type |
HDMI |
| Distanta maxima: |
100 m |
| Numar porturi RJ-45: |
2 |
| Interfata HDMI |
Da |
| Numar porturi USB |
2 |
| Rezolutie maxima |
3840 x 2160 pixeli |
| Supported bandwidth |
18 Gbit/s |
| AC adapter output voltage |
24 V |
| Transmitter width |
16.3 cm |
| Transmitter depth |
9 cm |
| Transmitter height |
1.6 cm |
| Receiver width |
16.3 cm |
| Receiver depth |
9 cm |
| Receiver height |
1.6 cm |
| Product colour |
Black |
| Operating temperature (T-T) |
0 – 40 °C |
| Harmonized System (HS) code |
84733080 |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
20 – 90% |
| Manual |
Yes |
| Package height |
210 mm |
| Package width |
265 mm |
| Weight |
770 g |
| Package weight |
1.28 kg |
| Package depth |
70 mm |
| Producator |
LINDY |
| Garantie |
