Descriere

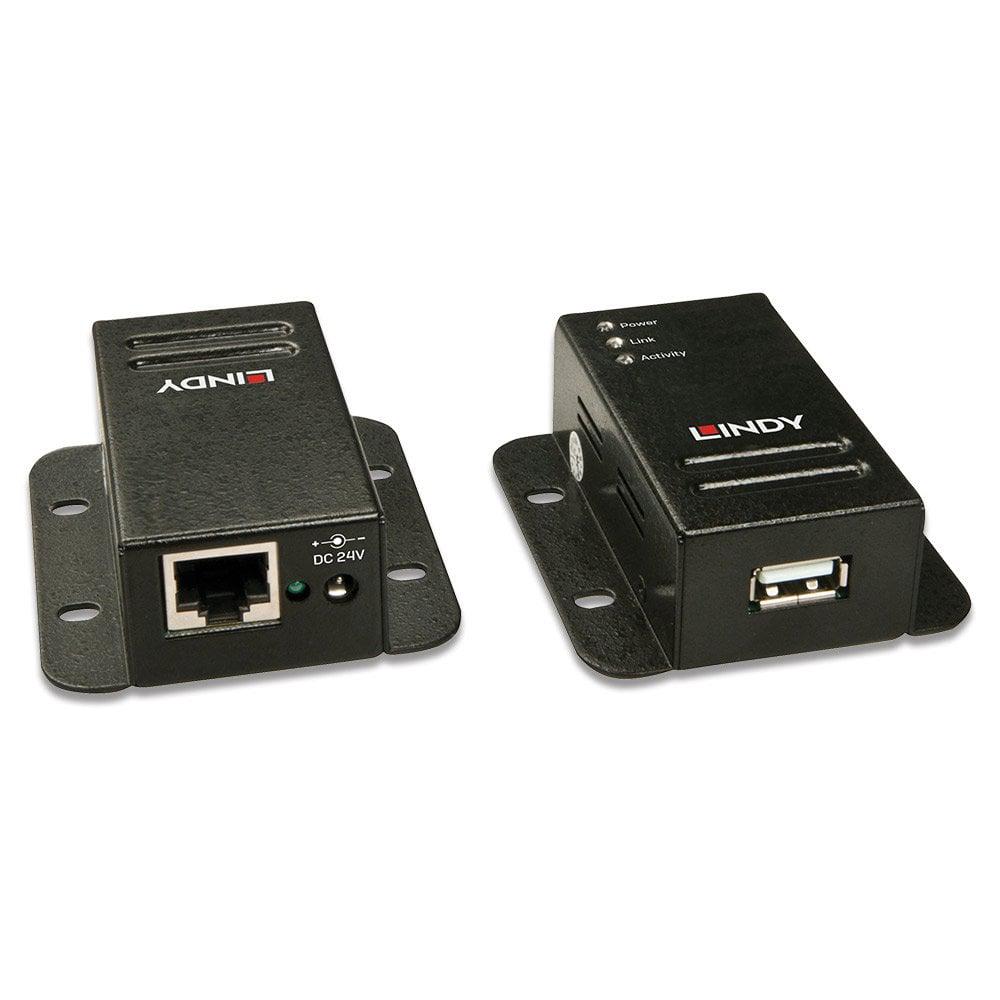

Lindy 50m USB 2.0 Cat.5e Extender Technical details Specifications USB Standard: USB 2.0 Supported Bandwidth: 480Mbps Maximum Distance: 50m (164.04ft) Transmission Medium: Cat.5/5e/6 or higher network cable Chipset: NS1021 Special Features: Power over Cable Connectors Transmitter Input: USB Type B (Female) Transmitter Output: RJ45 (Female) Receiver Input: RJ45 (Female) Receiver Output: 1 x USB Type A (Female) Power: 3.5/1.35mm DC socket Physical Properties Dimensions WxDxH: 60x67x23mm (2.36×2.64×0.91in) (TX) 60x67x23mm (2.36×2.64×0.91in) (RX) Housing Material: Metal Net Weight: 0.3kg (0.66lb) Operating Temperature: -0° – 70°C (32°F – 158°F) Storage Temperature: -20°C – 80°C (-4°F – 176°F) Humidity: 0 – 90% RH (non-condensing) Power Requirements: 24VDC 0.5A Colour: Black Miscellaneous Packaging Type: Carton Box Packaging Dimensions: 185x140x55mm (7.28×5.51×2.17in) Gross Weight: 0.4kg (0.88lb) Warranty (Years): 2 Certificated: CE, FCC, RoHS, REACH Package Contents Transmitter unit Receiver unit 0.5m USB 2.0 A Male to B Male cable Multi-Country Power Supply (EU, UK, US & AUS) Lindy Manual Purchasing information No.: 42680 EAN: 4002888426800 https://www.lindy-international.com/50m-USB-2-0-Cat-5e-Extender-.htm? websale8=ld0101.ld021102&pi=42680&ci=50

Livrare

Informații suplimentare

Plug and Play	Yes
USB 2.0 ports quantity	2
Power over Ethernet (PoE)	Yes
Included power plug types	AU, EU, UK, US
Data transfer rate	480 Mbit/s
Power note	3.5/1.35mm DC
Storage relative humidity (H-H)	0 – 90%
Output voltage	24 V
Output current	0.5 A
Cable types supported	Cat5, Cat5e, Cat6
RJ-45 ports quantity (transmitter)	1
RJ-45 ports quantity (receiver)	1
Maximum transfer distance	50 m
Distanta maxima:	50 m
Numar porturi RJ-45:	2
Interfata HDMI	Nu
Rezolutie maxima	None
Supported bandwidth	480Mbps
Transmitter width	6 cm
Transmitter depth	6.7 cm
Transmitter height	2.3 cm
Receiver height	2.3 cm
Numar porturi USB	2
Chipset	NS1021
Input current	0.25 A
Receiver width	6 cm
Receiver depth	6.7 cm
Product colour	Black
DC-in jack	Yes
Operating relative humidity (H-H)	0 – 90%
Harmonized System (HS) code	85176990
Storage temperature (T-T)	-20 – 80 °C
Manual	Yes
LED indicators	Yes
Operating temperature (T-T)	0 – 70 °C
Housing material	Metal
Package type	Box
Weight	300 g
Package width	185 mm
Package height	55 mm
Package depth	140 mm
Package weight	400 g
Cables included	USB Type-A to USB Type-B
Producator	LINDY
Garantie	24
