UPS Legrand Keor PDU monofazat, 800VA/480W, IN 1xIEC 10A OUT

Name: UPS Legrand Keor PDU monofazat, 800VA/480W, IN 1xIEC 10A OUT
SKU: 000000000000310332
Availability: OutOfStock

Prețul inițial a fost: 1,077.46 lei.Prețul curent este: 953.60 lei.

Stoc epuizat

Adaugă la favorite

SKU: 000000000000310332 Categorie: UPS

Descriere

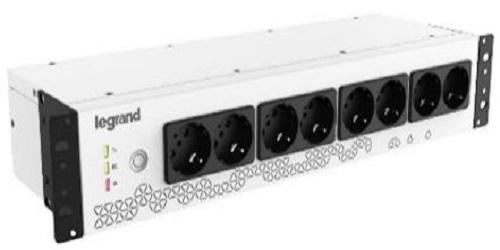

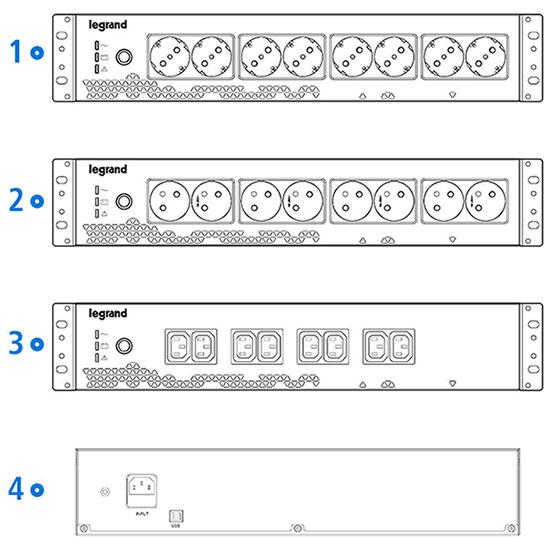

Keor PDU is a new UPS specifically designed for installation in 19-inch panels and racks.
Its PDU style design with ultra compact dimensions provides 8 sockets with up to 15 minute autonomy in just 2 rack units.

Livrare

Informații suplimentare

Culoare	Alb
USB Port	Yes
Capacitate putere UPS	480W
Products per master (outer) case	1 pc(s)
Pallet net width	120 cm
Tip UPS:	Offline
Capacitate Rack:	2U
Ecran LCD:	Nu
Port USB	Da
Output operation voltage (min)	207 V
Output operation voltage (max)	253 V
Output frequency	50/60 Hz
Number of input phases	1
Number of output phases	1
Efficiency	98%
Output power factor	0.6
AC outlet types	C13 coupler
Power plug	C14 coupler
USB port type	USB Type-B
Waveform	Sine
Rack capacity	2U
Output voltage regulation	10%
Input frequency	45/65 Hz
Output frequency regulation	1 Hz
Potential-free output	No
Auto shut-off	No
Pallet net length	100 cm
Form factor	Rackmount
Input operation voltage (min)	160 V
Output power capacity	0.8 kVA
Output power	480 W
Input operation voltage (max)	290 V
Typical backup time at half load	10 min
UPS topology	Standby (Offline)
Battery capacity	9 Ah
Maximum current	10 A
Power protection features	Overdischarge, Overload, Short circuit
AC outlets quantity	16 AC outlet(s)
Number of type F outputs	8
Master (outer) case width	159 mm
Master (outer) case length	528 mm
Master (outer) case height	255 mm
Pallet net height	102 cm
Pallet net weight	306.6 kg
Master (outer) case gross weight	6.39 kg
Montare in Rack	Da
Operating temperature (T-T)	0 – 40 °C
Number of batteries supported	1
Power source type	AC
Battery technology	Sealed Lead Acid (VRLA)
Product colour	Black, White
Depth	150 mm
Compliance certificates	CE
Operating relative humidity (H-H)	0 – 95%
Sustainability compliance	Yes
Width	88 mm
Harmonized System (HS) code	85078000
Weight	5.5 kg
Noise level	40 dB
Package height	440 mm
Height	440 mm
Products per pallet	48 pc(s)
Package width	88 mm
Certification	EN 62040-1, EN 62040-2
Package depth	5.81 mm
Package weight	6.07 kg
Atentionari Supraincarcare	Da
Tip:	Offline
Incarcare	480 W
Numar baterii	1
Capacitate baterie	12V/9Ah
Putere	800 VA
Dimensiuni	440 x 150 x 88 mm
Schuko	8
Atentionari Scurt-circuit	Da
Producator	LEGRAND
Garantie	24
