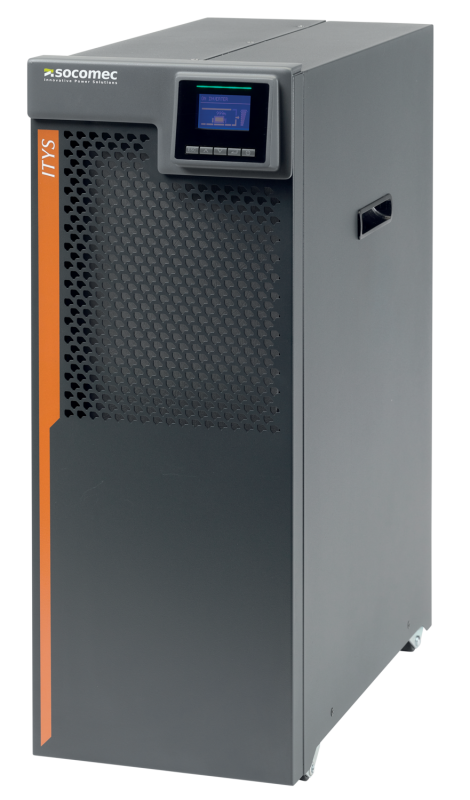

Name: SOCOMEC ITYS 10kVA VFI UPS 1/1 PF=1 WI
SKU: ITY3-TW108B
Availability: OutOfStock

SOCOMEC ITYS 10kVA VFI UPS 1/1 PF=1 WI

Stoc epuizat

SKU: ITY3-TW108B Categorie: UPS

Descriere

SOCOMEC ITYS 10kVA VFI UPS 1/1 PF=1 WI

Livrare

Informații suplimentare

USB Port	Yes
Cooling type	Active
ECO mode	Yes
RS-232 ports	1
Tip UPS:	Online
Capacitate Rack:	None
Ecran LCD:	Da
Port USB	Da
Output frequency	50/60 Hz
Number of output phases	1
Efficiency (ECO mode)	98%
USB port type	USB Type-B
Built-in fan	Yes
Safety	IEC/EN 62040-1, AS 62040.1.1, AS 62040.1.2
Waveform	Sine
Form factor	Tower
Input operation voltage (max)	276 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Emergency Power Off (EPO)	Yes
UPS topology	Double-conversion (Online)
Crest factor	3:1
Input power factor	0.99
Input operation voltage (min)	160 V
Output power factor	1
Power protection features	Short circuit
Operating altitude	0 – 1000 m
Efficiency	95%
Operating temperature (T-T)	0 – 40 °C
Ethernet LAN (RJ-45) ports	1
Battery technology	Sealed Lead Acid (VRLA)
Width	225 mm
Operating relative humidity (H-H)	0 – 95%
Manual	Yes
LED indicators	Yes
Country of origin	China
Display type	LCD
Control type	Buttons
International Protection (IP) code	IP20
Noise level	55 dB
Product colour	Black, Grey, Orange
Certification	IEC/EN 62040-2, AS 62040.2 IEC/EN 62040-3 CE, RCM (E2376)
Battery voltage	192 V
Depth	469 mm
Charging current	12 A
Height	596 mm
Capacitate putere UPS	8500W
Output power capacity	8.5 kVA
Output power	8500 W
Number of input phases	3
Typical backup time at full load	5.8 min
Weight	58 kg
Producator	SOCOMEC
Garantie	24
