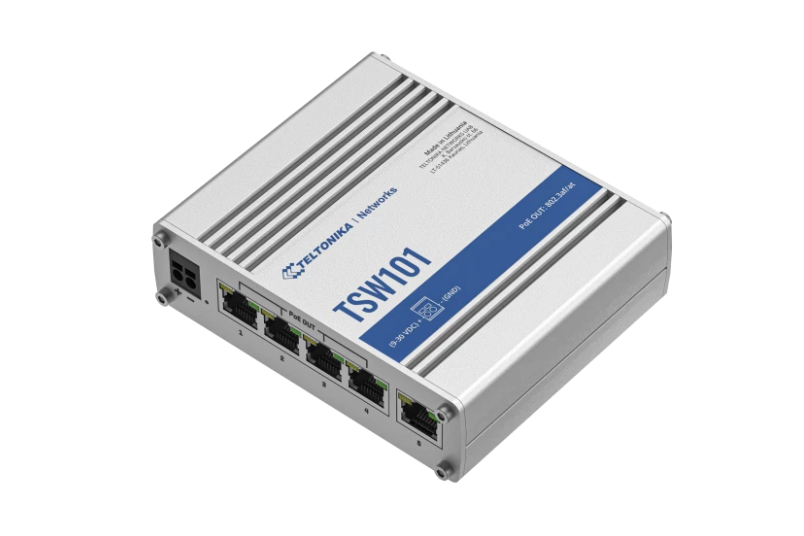

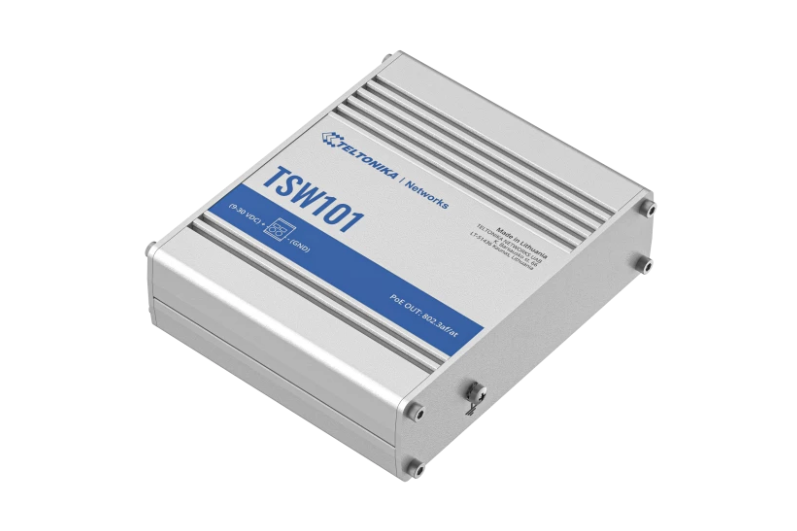

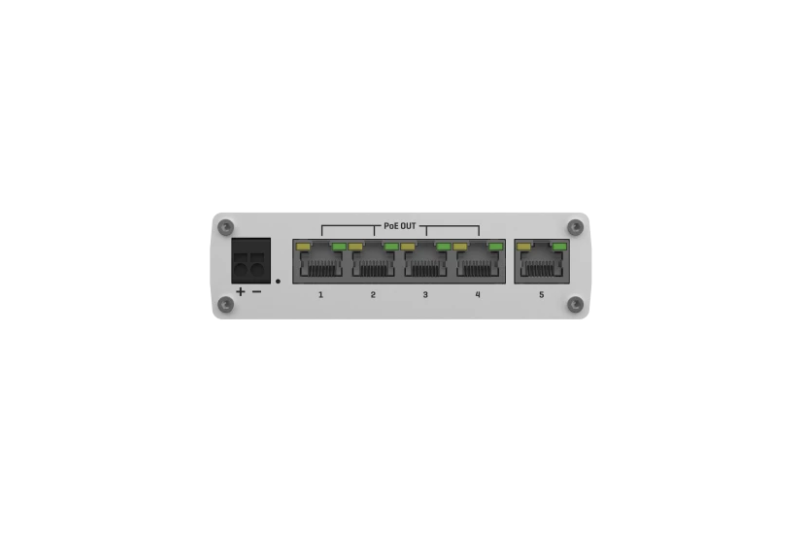

Name: TELTONIKA AUTOMOTIVE 5PORT POE+ SWITCH TSW101, interfata: 5 x ETH
SKU: TSW101
Availability: OutOfStock

Descriere

TELTONIKA AUTOMOTIVE 5PORT POE+ SWITCH TSW101, interfata: 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover, Standarde retea: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3ad, Porturi POE: 1-4, Buget POE: 60W, Lungime cablu max: 100m, Latime de banda: 10Gbps, Carcasa aluminiu, Dimensiuni: 115 x 32 x 95 mm, Greutate: 384 g.

Livrare

Informații suplimentare

LAN-Port-Type	Gigabit
Jumbo frames support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Passive PoE
Auto MDI/MDI-X	Yes
Input voltage	9 – 30 V
Networking standards	IEEE 802.3, IEEE 802.3az, IEEE 802.3u
10G support	No
Basic switching RJ-45 Ethernet ports type	5
Jumbo frames	9216
MAC address table	2000 entries
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet (PoE) power per port	30 W
Switching capacity	10 Gbit/s
Power connector	Terminal block (2-pin)
Total Power over Ethernet (PoE) budget	120 W
Porturi RJ 45	5-10
Viteza Transfer	Gigabit
Porturi SFP	N/A
Montare in Rack	Nu
Management	Nu
PoE	Da
Operating relative humidity (H-H)	10 – 90%
Operating temperature (T-T)	-40 – 75 °C
Depth	32 mm
Width	115 mm
Height	95 mm
Housing material	Aluminium
Power source	DC
Product colour	Metallic
LED indicators	Power, Status
International Protection (IP) code	IP30
Power consumption (typical)	0.64 W
Power consumption (max)	2.31 W
Weight	354 g
Certification	CE, REACH, RoHS, WEEE TSW101 CE TSW101 UKCA TSW101 FCC TSW101 IC TSW101 CB TSW101 RCM E-Mark
Harmonized System (HS) code	851762
Producator	TELTONIKA
Garantie	24
