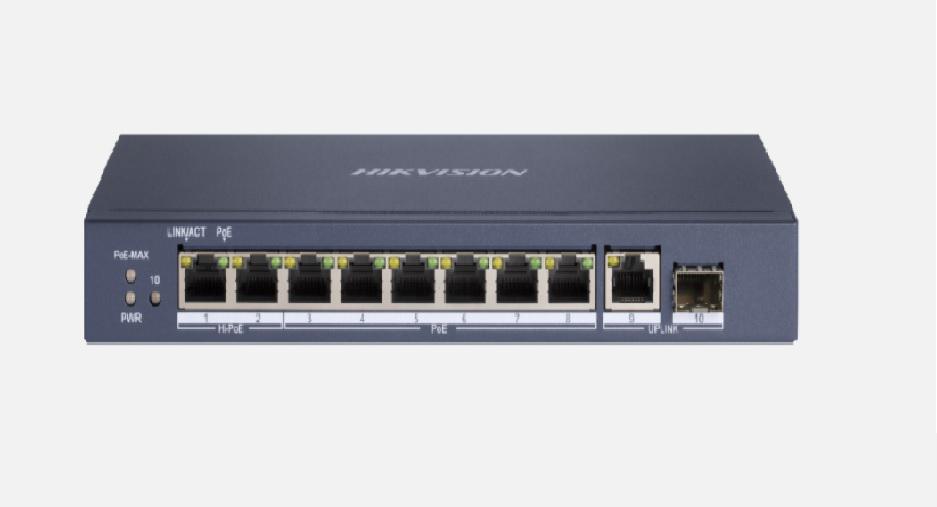

Switch 8 porturi POE Gigabit, Hikvision DS-3E0510HP-E, fara management, 6 × gigabit PoE ports, 2 × gigabit Hi-PoE ports, 1 × gigabit RJ45 port, and 1 × gigabit fiber optical port, IEEE 802.3at/af/bt standard for Hi- PoE ports (Max. 90 W PoE output), IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output, Up to 300 m long-range transmission, PoE watchdog, MAC address table: 4 K, Internal cache: 1.5 Mbits, Hi-PoE port: Port 1 si 2 (Max. port power 90W), POE port: port 3-8 ( Max. port power 30W), PoE power budget: 110W, material metal, dimensiuni: 217.6 mm × 108.55 mm × 27.8 mm, greutate: 0.59 kg
| Storage relative humidity (H-H) |
5 – 95% |
|---|---|
| Power over Ethernet (PoE) |
Yes |
| Full duplex |
Yes |
| Rack mounting |
No |
| Basic switching RJ-45 Ethernet ports type |
8 |
| DC input voltage |
54 V |
| Fiber ports quantity |
1 |
| Installed SFP modules quantity |
0 |
| 10G support |
No |
| Switch type |
Unmanaged |
| Switching capacity |
20 Gbit/s |
| Forwarding rate |
14.88 Mpps |
| Store-and-forward |
Yes |
| MAC address table |
4000 entries |
| Input current |
2.22 A |
| Total Power over Ethernet (PoE) budget |
110 W |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Porturi RJ 45 |
5-10 |
| Viteza Transfer |
Gigabit |
| Porturi SFP |
N/A |
| Montare in Rack |
Nu |
| Power over Ethernet (PoE) ports quantity |
6 |
| Management |
Nu |
| PoE |
Da |
| Storage temperature (T-T) |
-40 – 85 °C |
| Product colour |
Blue |
| Harmonized System (HS) code |
85176990 |
| Housing material |
Metal |
| Power consumption (max) |
120 W |
| Width |
217.6 mm |
| Depth |
278 mm |
| Weight |
590 g |
| Height |
1085 mm |
| Producator |
HIKVISION |
