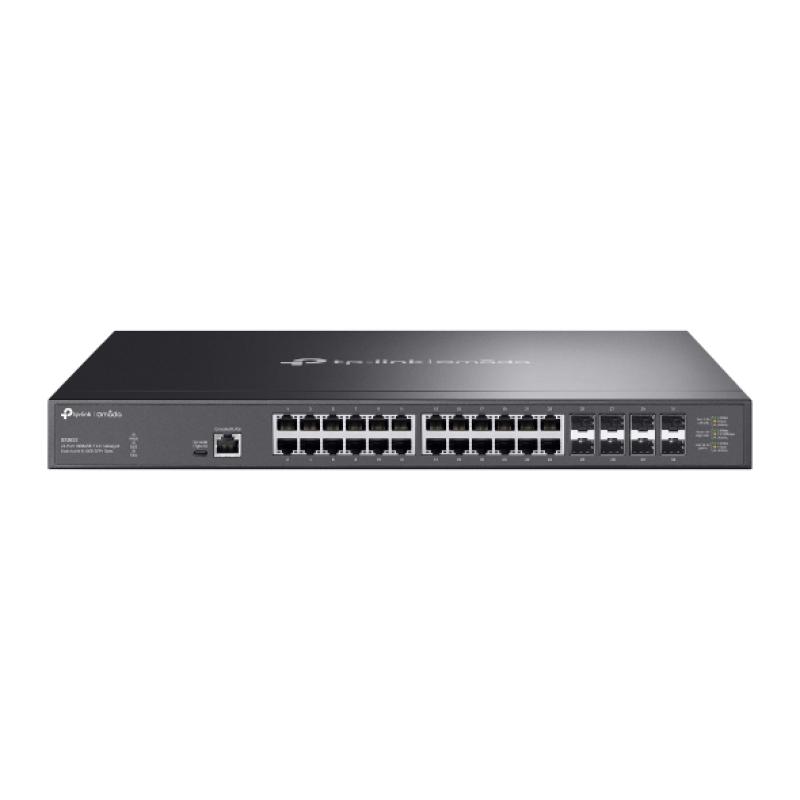

Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+
13,056.00 lei
Stoc epuizat
Report Abuse
Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots PORT: 24× 10G RJ45 Ports, 8× 10G SFP+ Slots, RJ45/USB Type C Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller, Static Routing, DHCP Server, OAM, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, ERPS, LACP, CLI, SNMP, Dual Image/Configuration, IPv6
| Layer |
Layer-2 |
|---|---|
| Stackable |
Yes |
| Rackable |
No |
| LAN-Port-Type |
10Gigabit |
| Redundant-PSU |
Yes |
| LAN Ports |
16 |
| Storage relative humidity (H-H) |
5 – 90% |
| Jumbo frames support |
Yes |
| Power supply included |
Yes |
| USB Type-C ports quantity |
1 |
| Number of fans |
2 fan(s) |
| Rack mounting |
Yes |
| VLAN support |
Yes |
| Quality of Service (QoS) support |
Yes |
| Static route |
Yes |
| Web-based management |
Yes |
| System event log |
Yes |
| Switch type |
Managed |
| 10G support |
Yes |
| Port mirroring |
Yes |
| Form factor |
1U |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Access Control List (ACL) |
Yes |
| Power over Ethernet (PoE) |
No |
| Flow control support |
Yes |
| Rate limiting |
Yes |
| IGMP snooping |
Yes |
| Rack mount kit |
Yes |
| Configuring Location Settings (CLI) |
Yes |
| Basic switching RJ-45 Ethernet ports type |
24 |
| Broadcast storm control |
Yes |
| Spanning tree protocol |
Yes |
| Multicast support |
Yes |
| Jumbo frames |
9000 |
| IP routing |
Yes |
| SSH/SSL support |
Yes |
| Loop protection |
Yes |
| ARP inspection |
Yes |
| MAC address table |
32000 entries |
| Authentication type |
AAA, RADIUS, TACACS+ |
| Switch layer |
L2/L2+ |
| Switching capacity |
640 Gbit/s |
| Console port |
RJ-45/USB Type-C |
| Virtual LAN features |
MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN |
| Authentication |
Auto VLAN, MAC-based authentication, Port-based authentication |
| Packet buffer memory |
24 MB |
| Porturi RJ 45 |
24-28 |
| Viteza Transfer |
10G+ |
| Porturi SFP |
5-8 |
| Montare in Rack |
Da |
| SFP module slots quantity |
8 |
| Networking standards |
IEEE 802.3az |
| Forwarding rate |
240 Mpps |
| DHCP features |
DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping |
| Heat dissipation |
363.23 BTU/h |
| Management |
Da |
| PoE |
Nu |
| Quick start guide |
Yes |
| LED indicators |
Yes |
| Depth |
220 mm |
| Power source |
AC |
| AC input frequency |
50/60 Hz |
| Cables included |
AC, LAN (RJ-45) |
| Cloud-managed |
Yes |
| Power consumption (max) |
106.5 W |
| Producator |
TP-LINK |
| Garantie |
