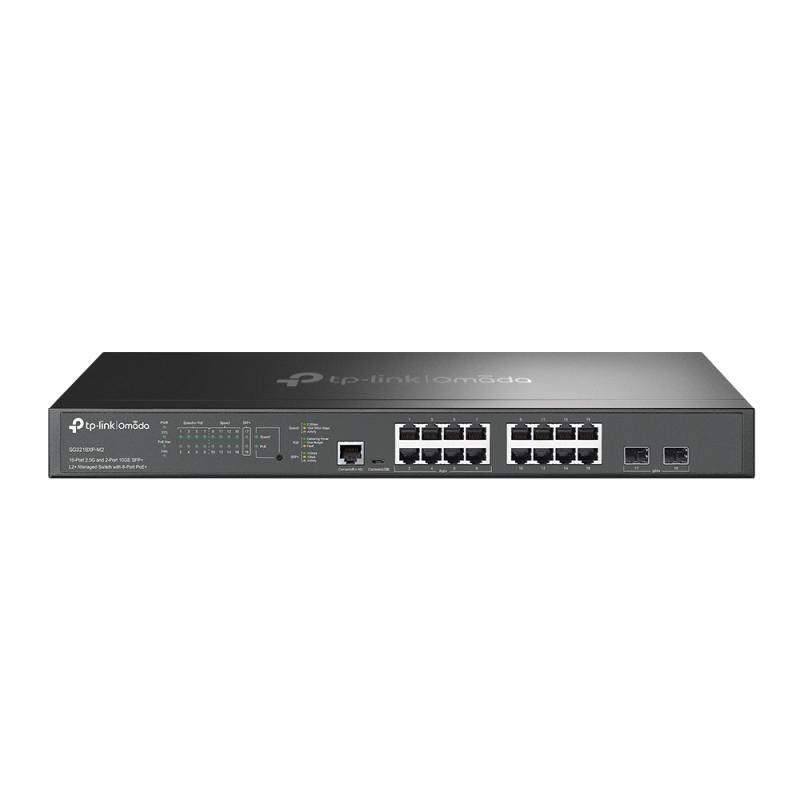

Omada 16-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch
5,312.00 lei
Stoc epuizat
Report Abuse
Omada 16-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8- Port PoE+ PORT: 8× 2.5G PoE+ Ports, 8× 2.5G Non-PoE Ports, 2× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3at/af, 240 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller,Static Routing, OAM, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6
| LAN-Port-Type |
FastEthernet |
|---|---|
| Storage relative humidity (H-H) |
5 – 90% |
| Password protection |
Yes |
| Jumbo frames support |
Yes |
| Link aggregation |
Yes |
| Power supply included |
Yes |
| Power over Ethernet (PoE) |
Yes |
| Number of fans |
2 fan(s) |
| Rack mounting |
Yes |
| VLAN support |
Yes |
| Quality of Service (QoS) support |
Yes |
| Static route |
Yes |
| Web-based management |
Yes |
| System event log |
Yes |
| Switch type |
Managed |
| 10G support |
Yes |
| Port mirroring |
Yes |
| Switching capacity |
120 Gbit/s |
| Form factor |
1U |
| MAC address filtering |
Yes |
| Access Control List (ACL) |
Yes |
| Flow control support |
Yes |
| Ethernet LAN data rates |
100,1000,2500 Mbit/s |
| Rate limiting |
Yes |
| IGMP snooping |
Yes |
| Installed SFP modules quantity |
0 |
| Configuring Location Settings (CLI) |
Yes |
| Broadcast storm control |
Yes |
| Spanning tree protocol |
Yes |
| Multicast support |
Yes |
| Basic switching RJ-45 Ethernet ports type |
16 |
| Jumbo frames |
9000 |
| IP routing |
Yes |
| MAC address table |
16000 entries |
| SSH/SSL support |
Yes |
| Loop protection |
Yes |
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| ARP inspection |
Yes |
| BPDU filtering/protection |
Yes |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Power over Ethernet (PoE) power per port |
30 W |
| Power connector |
AC-in jack |
| Packet buffer memory |
12 MB |
| Head-of-line (HOL) blocking |
Yes |
| Static port security |
Yes |
| Networking standards |
IEEE 802.1D, IEEE 802.1s, IEEE 802.1w |
| Virtual LAN features |
MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Number of static routes |
48 |
| DHCP features |
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Security algorithms |
HTTPS, SSH, SSH-2, SSL/TLS |
| IP-MAC-Port binding |
Yes |
| Authentication |
MAC-based authentication, Port-based authentication |
| Authentication type |
AAA, TACACS+ |
| Queue scheduling algorithms |
SP, WRR+SP, Weighted Round Robin (WRR) |
| Multicast Listener Discovery (MLD) snooping |
Y |
| Total Power over Ethernet (PoE) budget |
240 W |
| Forwarding rate |
89.28 Mpps |
| Number of IP interfaces |
32 |
| Management protocols |
SNMP v1/v2c/v3, SNTP |
| Heat dissipation |
1021.64 BTU/h |
| Porturi RJ 45 |
11-18 |
| Viteza Transfer |
2.5G |
| Porturi SFP |
1-2 |
| Montare in Rack |
Nu |
| SFP module slots quantity |
2 |
| Console port |
RJ-45/micro-USB |
| Management |
Da |
| PoE |
Da |
| Quick start guide |
Yes |
| Cables included |
AC |
| Operating relative humidity (H-H) |
10 – 90% |
| Operating temperature (T-T) |
0 – 50 °C |
| Depth |
180 mm |
| Storage temperature (T-T) |
-40 – 70 °C |
| Sustainability compliance |
Yes |
| LED indicators |
Yes |
| Package type |
Box |
| Power source |
AC |
| AC input voltage |
100 – 240 V |
| Compliance certificates |
Federal Communications Commission (FCC), RoHS |
| Cloud-managed |
Yes |
| Power consumption (max) |
299.4 W |
| Producator |
TP-LINK |
