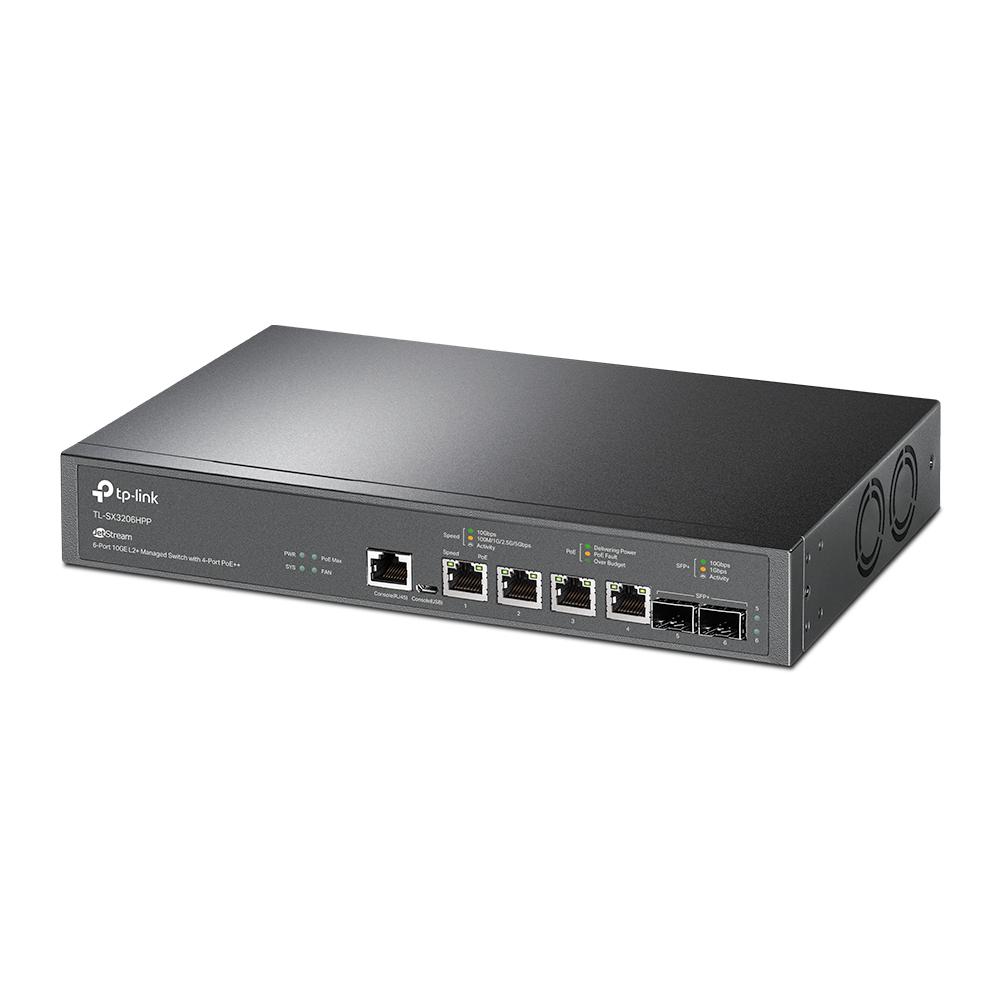

"JetStream™ 4-Port 10GBase-T and 2-Port 10GE SFP+ L2+ Managed Switch
5,984.00 lei
Stoc epuizat
Report Abuse

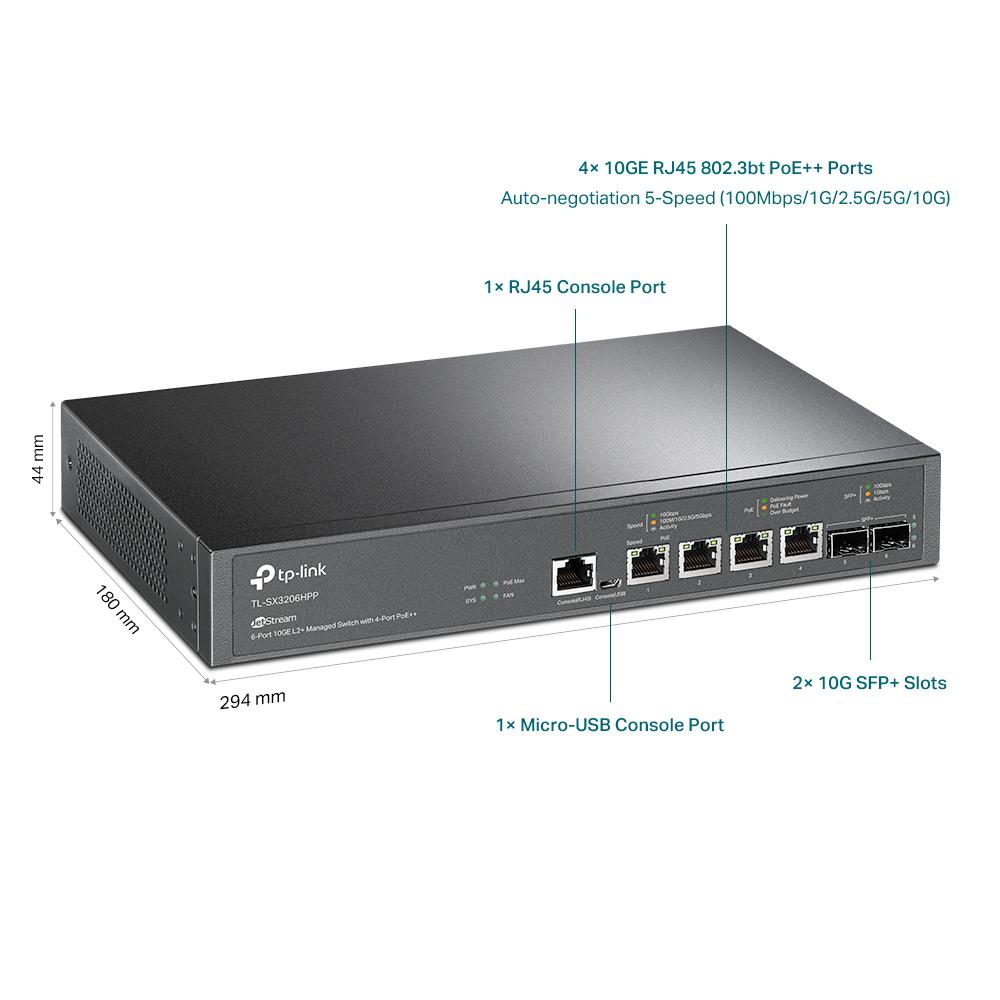

„JetStream™ 4-Port 10GBase-T and 2-Port 10GE SFP+ L2+ Managed Switch with 4-Port PoE++ PORT: 4× 10G PoE++ Ports, 2× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3bt/at/af, 200 W PoE Power, 1U 13-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller,Static Routing, OAM, DDM, sFlow, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6”
| LAN-Port-Type |
10Gigabit |
|---|---|
| Storage relative humidity (H-H) |
5 – 95% |
| Jumbo frames support |
Yes |
| Link aggregation |
Yes |
| Power supply included |
Yes |
| Power over Ethernet (PoE) |
Yes |
| Number of fans |
2 fan(s) |
| Rack mounting |
Yes |
| VLAN support |
Yes |
| Quality of Service (QoS) support |
Yes |
| Static route |
Yes |
| Web-based management |
Yes |
| System event log |
Yes |
| Switch type |
Managed |
| Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
| 10G support |
Yes |
| Port mirroring |
Yes |
| Switching capacity |
120 Gbit/s |
| Power over Ethernet (PoE) power per port |
60 W |
| Access Control List (ACL) |
Yes |
| Switch layer |
L2 |
| Flow control support |
Yes |
| Rate limiting |
Yes |
| IGMP snooping |
Yes |
| Rack mount kit |
Yes |
| Installed SFP modules quantity |
0 |
| Configuring Location Settings (CLI) |
Yes |
| Broadcast storm control |
Yes |
| Spanning tree protocol |
Yes |
| Multicast support |
Yes |
| Jumbo frames |
9000 |
| IP routing |
Yes |
| Number of VLANs |
4000 |
| SSH/SSL support |
Yes |
| Loop protection |
Yes |
| ARP inspection |
Yes |
| MAC address table |
32000 entries |
| Multicast Listener Discovery (MLD) snooping |
MLD v1/v2 |
| BPDU filtering/protection |
Yes |

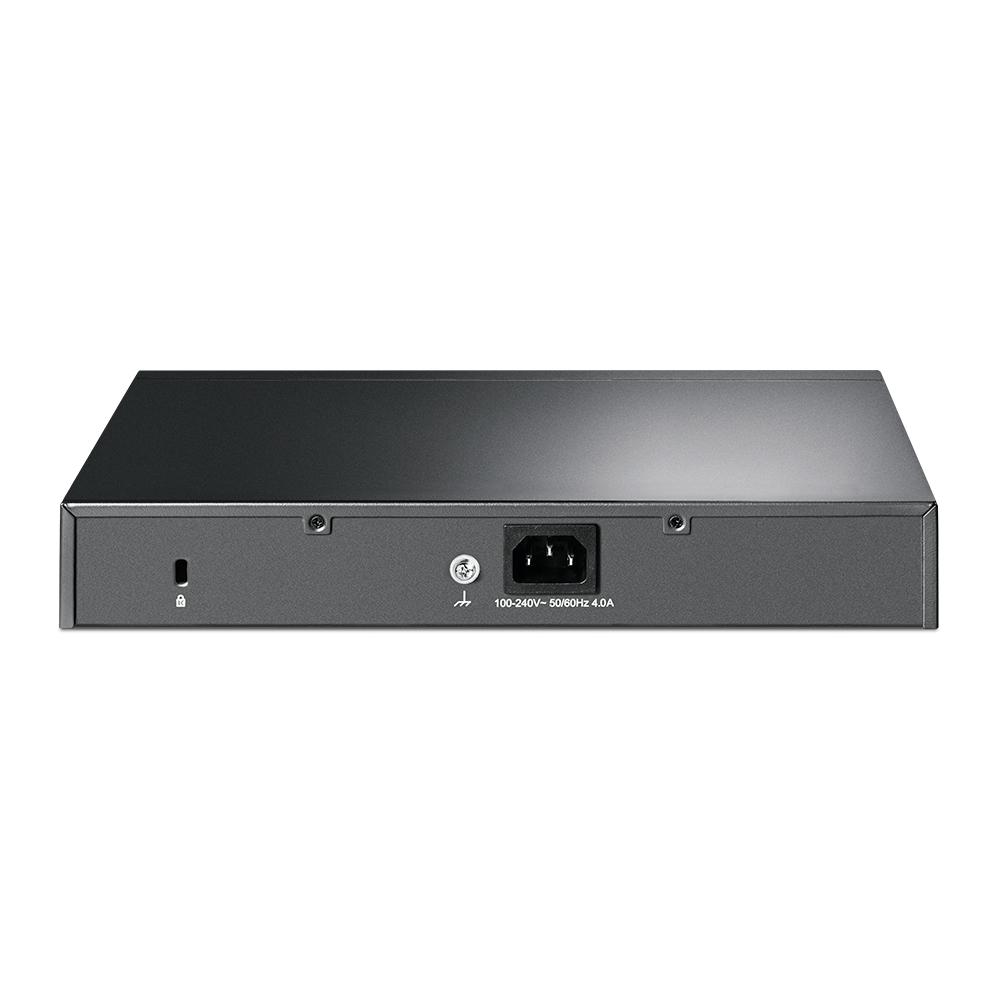

| Power connector |
AC-in jack |
| Head-of-line (HOL) blocking |
Yes |
| Console port |
RJ-45/micro-USB |
| Number of static routes |
48 |
| Authentication type |
AAA, RADIUS, TACACS+ |
| Packet buffer memory |
16 MB |
| Virtual LAN features |
Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN |
| Power over Ethernet plus (PoE+) ports quantity |
4 |
| Forwarding rate |
89.28 Mpps |
| MIB support |
Yes |
| DHCP features |
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client |
| Routing entries |
512 |
| Security algorithms |
HTTPS, SSL/TLS |
| Authentication |
Guest VLAN |
| Total Power over Ethernet (PoE) budget |
200 W |
| Heat dissipation |
835.67 BTU/h |
| Porturi RJ 45 |
1-4 |
| Viteza Transfer |
10G+ |
| Porturi SFP |
1-2 |
| Montare in Rack |
Nu |
| SFP module slots quantity |
2 |
| Management |
Da |
| PoE |
Da |
| Product colour |
Black |
| Quick start guide |
Yes |
| Cables included |
AC |
| Operating relative humidity (H-H) |
10 – 90% |
| Harmonized System (HS) code |
85176990 |
| Operating temperature (T-T) |
0 – 50 °C |
| Depth |
180 mm |
| Storage temperature (T-T) |
-40 – 70 °C |
| LED indicators |
Yes |
| Power source |
AC |
| Package height |
80 mm |
| Package width |
400 mm |
| AC input voltage |
100 – 240 V |
| AC input frequency |
50/60 Hz |
| Package depth |
250 mm |
| Cloud-managed |
Yes |
| Height |
44 mm |
| Package weight |
2.62 kg |
| Power consumption (max) |
244.9 W |
| Width |
294 mm |
| Producator |
TP-LINK |
