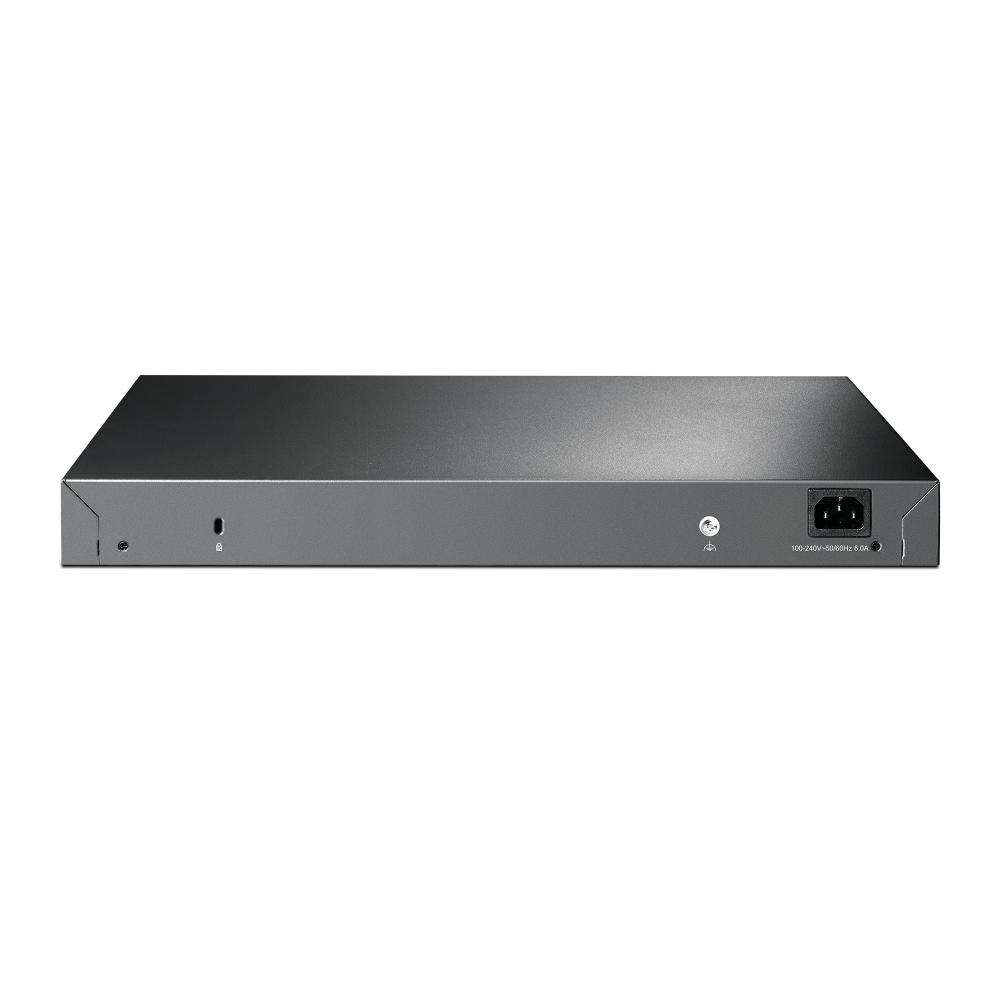

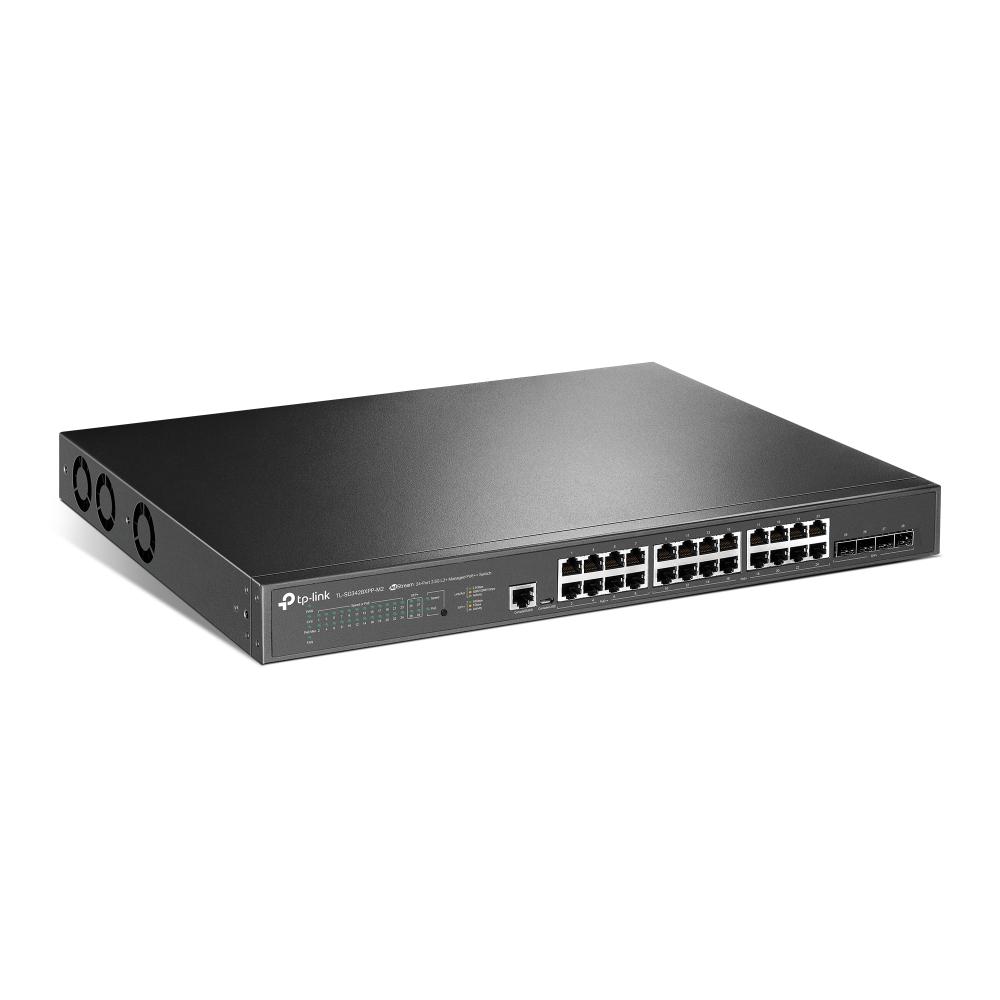

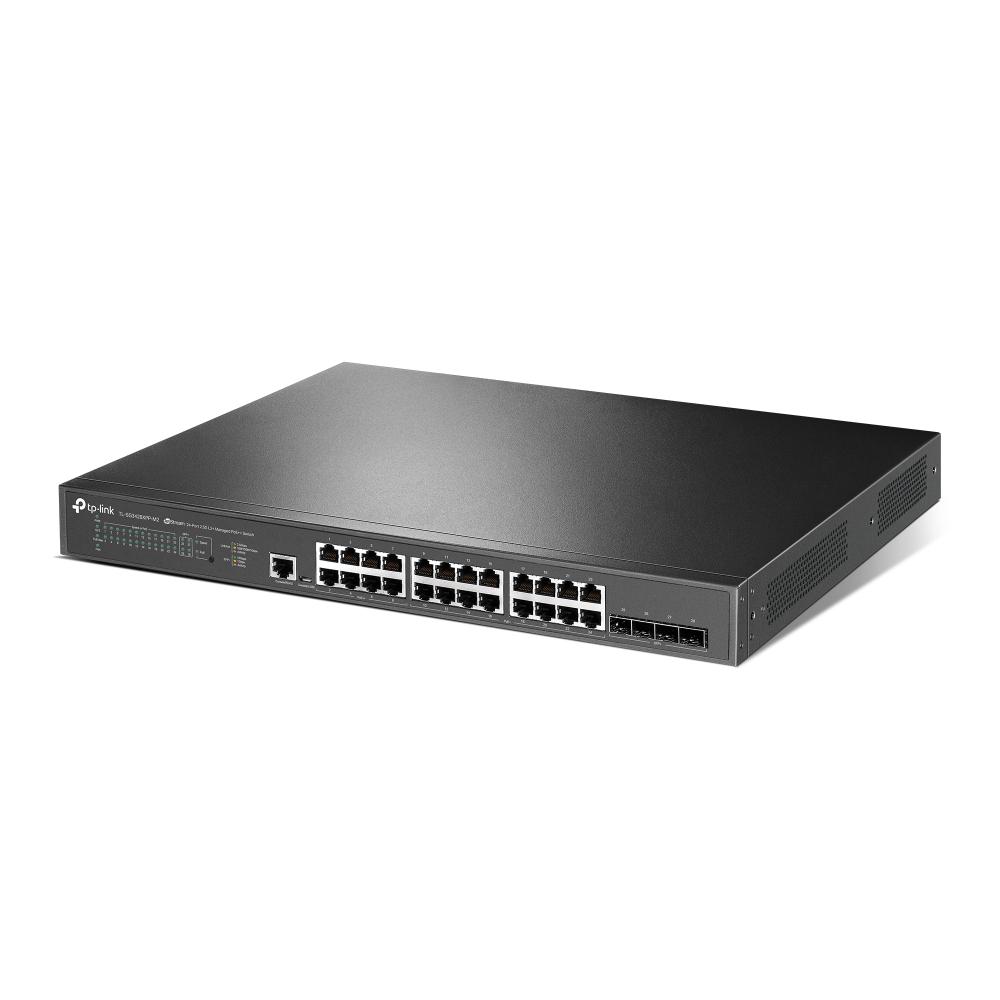

"JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch
Prețul inițial a fost: 9,520.00 lei.6,016.00 leiPrețul curent este: 6,016.00 lei.
Stoc epuizat
Report Abuse
„JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ PORT: 24× 2.5G RJ45 Ports (8× 2.5G PoE++ Ports & 16× 2.5G PoE+ Ports), 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3bt/at/af, 500 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, OAM, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6”
| Layer |
Layer-2 |
|---|---|
| Stackable |
No |
| Rackable |
Yes |
| LAN-Port-Type |
Gigabit |
| Redundant-PSU |
Yes |
| Storage relative humidity (H-H) |
5 – 90% |
| Password protection |
Yes |
| Jumbo frames support |
Yes |
| Link aggregation |
Yes |
| Power supply included |
Yes |
| Power over Ethernet (PoE) |
Yes |
| Number of fans |
3 fan(s) |
| Full duplex |
Yes |
| Rack mounting |
Yes |
| VLAN support |
Yes |
| Quality of Service (QoS) support |
Yes |
| Static route |
Yes |
| Web-based management |
Yes |
| System event log |
Yes |
| Switch type |
Managed |
| 10G support |
Yes |
| Port mirroring |
Yes |
| Form factor |
1U |
| Access Control List (ACL) |
Yes |
| Internal memory |
256 MB |
| Flow control support |
Yes |
| Rate limiting |
Yes |
| IGMP snooping |
Yes |
| Redundant power supply (RPS) support |
Yes |
| Rack mount kit |
Yes |
| Redundant fans support |
Yes |
| Installed SFP modules quantity |
0 |
| Ethernet LAN data rates |
10,100,1000,2500,10000 Mbit/s |
| Configuring Location Settings (CLI) |
Yes |
| Basic switching RJ-45 Ethernet ports type |
24 |
| Half duplex |
Yes |
| Broadcast storm control |
Yes |
| Spanning tree protocol |
Yes |
| Number of queues |
8 |
| Multicast support |
Yes |
| Jumbo frames |
9000 |
| SSH/SSL support |
Yes |
| Loop protection |
Yes |
| Authentication |
Guest VLAN, MAC-based authentication, Port-based authentication |
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Flash memory |
32 MB |
| ARP inspection |
Yes |
| MAC address table |
32000 entries |
| Multicast Listener Discovery (MLD) snooping |
MLD v1/v2 |
| BPDU filtering/protection |
Yes |
| Store-and-forward |
Yes |
| Head-of-line (HOL) blocking |
Yes |
| Static port security |
Yes |
| Number of static routes |
48 |
| DHCP features |
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Security algorithms |
HTTPS, SSH, SSH-2, SSL/TLS |
| IP-MAC-Port binding |
Yes |
| Queue scheduling algorithms |
SP, WRR+SP, Weighted Round Robin (WRR) |
| Power over Ethernet plus (PoE+) ports quantity |
16 |
| Power over Ethernet 4PPoE (PoE++) ports quantity |
8 |
| Packet buffer memory |
16 MB |
| IPv4 routes |
48 |
| IPv6 routes |
48 |
| Number of IP interfaces |
32 |
| Total Power over Ethernet (PoE) budget |
500 W |
| Switching capacity |
200 Gbit/s |
| Memory type |
DRAM |
| MIB support |
RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925 |
| 2.5G Ethernet (copper) ports quantity |
24 |
| Virtual LAN features |
MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN |
| Forwarding rate |
148.8 Mpps |
| Authentication type |
AAA, IEEE 802.1x, RADIUS, TACACS+ |
| IPv4 & IPv6 features |
IPv4/IPv6 access-control list (ACL), IPv6 ping, IPv6 portal, IPv6 tracert |
| Heat dissipation |
2153.45 BTU/h |
| Porturi RJ 45 |
24-28 |
| Viteza Transfer |
2.5G |
| Porturi SFP |
1-2 |
| Montare in Rack |
Da |
| SFP module slots quantity |
4 |
| Console port |
RJ-45/micro-USB |
| LAN Ports |
24 |
| Management |
Da |
| PoE |
Da |
| Operating temperature (T-T) |
0 – 40 °C |
| Quick start guide |
Yes |
| Cables included |
AC |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Sustainability compliance |
Yes |
| LED indicators |
Yes |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Depth |
330 mm |
| AC input voltage |
100 – 240 V |
| Cloud-managed |
Yes |
| Power source |
AC/PoE |
| Power consumption (max) |
629.1 W |
| Producator |
TP-LINK |
| Garantie |
