Descriere

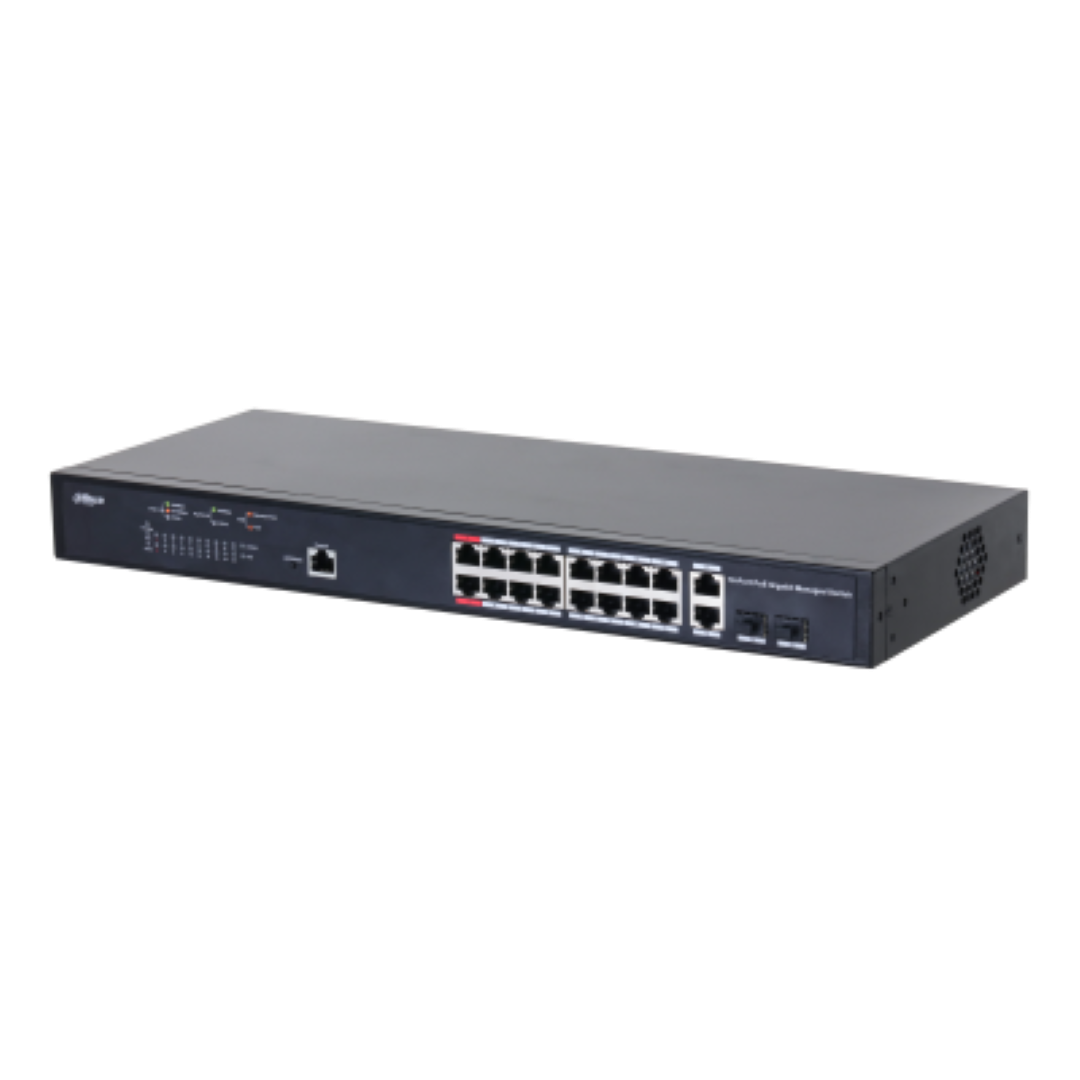

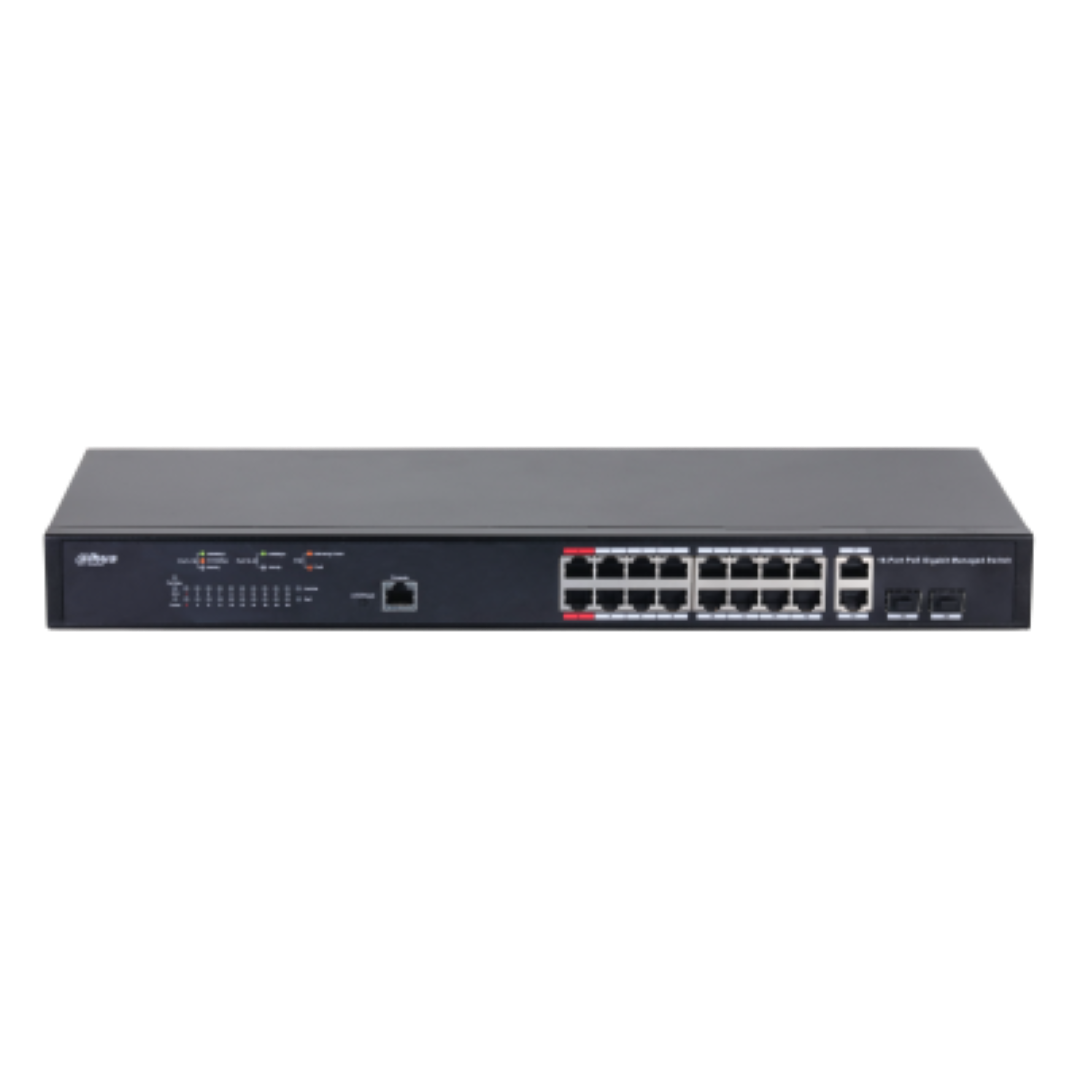

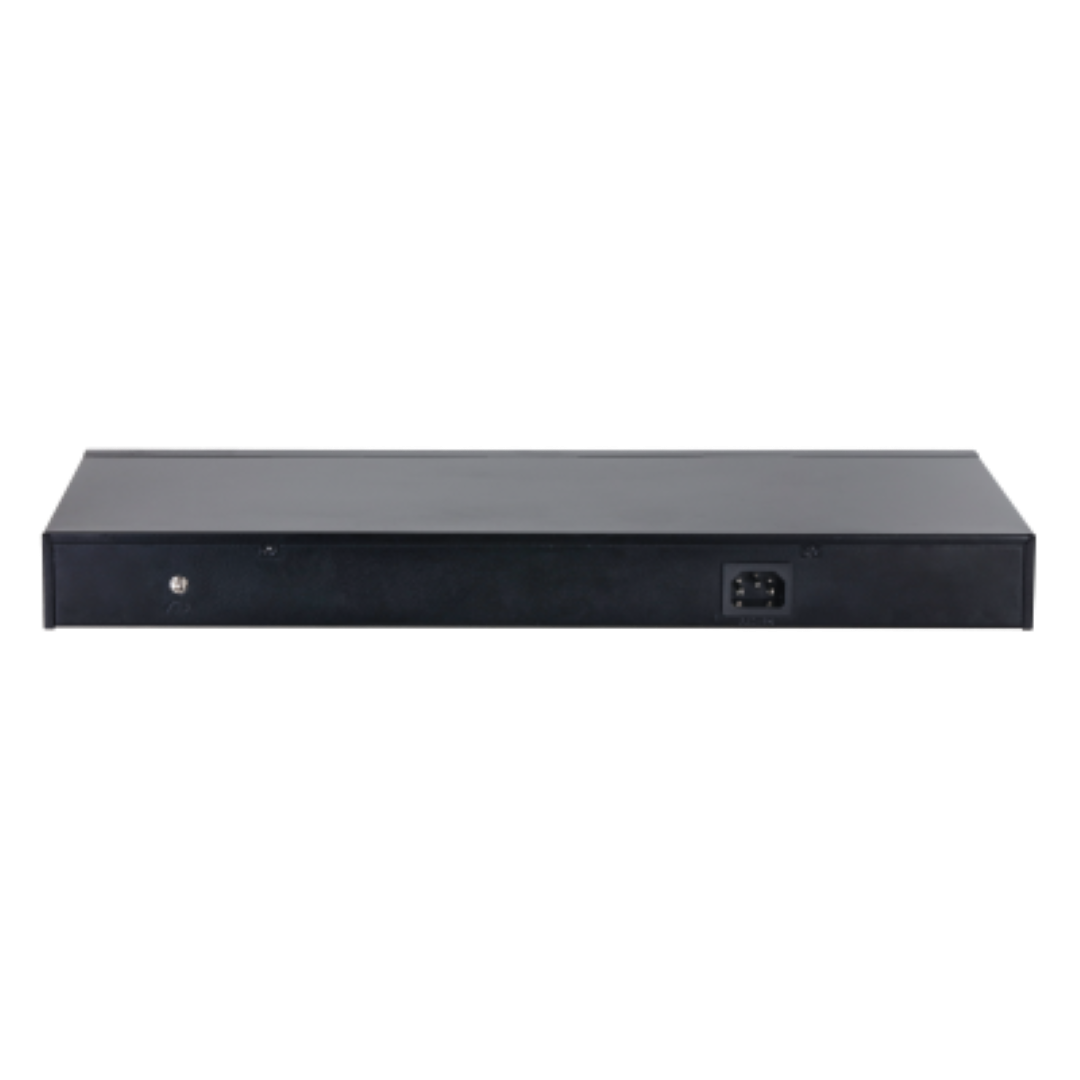

Dahua Managed Switch 18 porturi, 16 porturi POE, Gigabit, Port 1-16:16 × 10M/100M/1000MBase-T (PoE), Port 17-18:2 × 10M/100M/1000MBase-T (uplink) (combo), Port 17-18:2 × 1000M SFP (uplink)(combo), 1 × Console port, Managed L2, Capacitate switch: 56 Gbps, Packet Forwarding Rate: 29.76 Mpps, Dimensiuni: 440 mm × 185.8 mm × 44 mm, Distanta transmitere POE: 250m, Buget POE: 130W.

Livrare

Informații suplimentare

Storage relative humidity (H-H)	5 – 90%
Jumbo frames support	Yes
Link aggregation	Yes
Power supply included	Yes
Input current	3 A
Power over Ethernet (PoE)	Yes
Reset button	Yes
Rack mounting	Yes
VLAN support	Yes
Web-based management	Yes
Switch type	Managed
Combo SFP ports quantity	2
Switch layer	L2
Number of power supply units	1
Console port	RJ-45
10G support	No
Multicast support	Yes
Basic switching RJ-45 Ethernet ports type	16
Number of VLANs	4000
MAC address table	16000 entries
ARP inspection	Yes
Switching capacity	56 Gbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Jumbo frames	10000
Total Power over Ethernet (PoE) budget	130 W
Forwarding rate	29.76 Mpps
Porturi RJ 45	11-18
Viteza Transfer	Gigabit
Porturi SFP	1-2
Montare in Rack	Da
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u
Management	Da
PoE	Da
Power source	AC
Weight	3.1 kg
Storage temperature (T-T)	-20 – 70 °C
Package depth	265 mm
AC input frequency	50/60 Hz
Compliance certificates	CE, Federal Communications Commission (FCC)
Power consumption (typical)	160 W
Housing material	Galvanized steel
Depth	185.8 mm
Package width	469 mm
Package height	83 mm
Package weight	37 kg
Producator	DAHUA
Garantie	36
