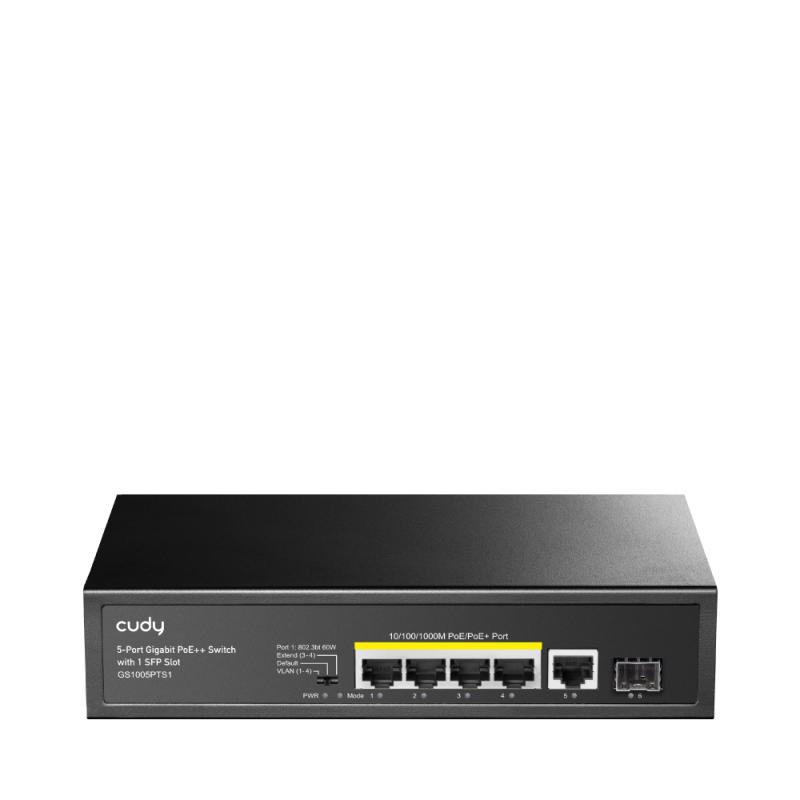

CUDY 5-Port 10/100/1000M PoE+ Switch 120W, 4-Port 10/100/1000M PoE+ ports,
353.26 lei
Stoc epuizat
Report Abuse
CUDY 5-Port 10/100/1000M PoE+ Switch 120W, 4-Port 10/100/1000M PoE+ ports, 60 watts for port #1, 802.3at/af, VLAN ON/OFF, Extend ON/OFF, Watchdog ON/OFF， Fanless, ±4KV Surge Protection,Watchdog, 120W Internal Power Supply
| Layer |
Layer-2 |
|---|---|
| Stackable |
No |
| Rackable |
No |
| LAN-Port-Type |
Gigabit |
| Redundant-PSU |
No |
| LAN Ports |
5 |
| Storage relative humidity (H-H) |
5 – 90% |
| Products per master (outer) case |
20 pc(s) |
| Plug and Play |
Yes |
| Jumbo frames support |
Yes |
| Power supply included |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Operating altitude |
0 – 3048 m |
| Power over Ethernet (PoE) |
Yes |
| Full duplex |
Yes |
| Rack mounting |
Yes |
| VLAN support |
Yes |
| Flow control support |
Yes |
| Mean time between failures (MTBF) |
100000 h |
| Master (outer) case length |
320 mm |
| Master (outer) case width |
505 mm |
| Installed SFP modules quantity |
1 |
| Master (outer) case net weight |
19 kg |
| Half duplex |
Yes |
| Basic switching RJ-45 Ethernet ports type |
5 |
| Jumbo frames |
9216 |
| Fanless |
Yes |
| MAC address table |
2000 entries |
| Fiber type |
Multi-mode |
| Input current |
1.25 A |
| Power over Ethernet (PoE) ports quantity |
4 |
| Power over Ethernet (PoE) power per port |
30 W |
| Store-and-forward |
Yes |
| Power connector |
AC-in jack |
| Packet buffer memory |
1 MB |
| Total Power over Ethernet (PoE) budget |
120 W |
| Switching capacity |
12 Gbit/s |
| Combo SFP ports quantity |
1 |
| Power over Ethernet plus (PoE+) ports quantity |
1 |
| Switching optical modules type |
Gigabit Ethernet |
| Uplink ports quantity |
1 |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Output current |
1.25 A |
| Porturi RJ 45 |
5-10 |
| Viteza Transfer |
Gigabit |
| Porturi SFP |
1-2 |
| Montare in Rack |
Da |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-TX |
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1 |
| Throughput |
8.928 Mpps |
| Output voltage |
52 V |
| Master (outer) case height |
402 mm |
| Management |
Nu |
| PoE |
Nu |
| Storage temperature (T-T) |
-40 – 85 °C |
| Cables included |
AC |
| Housing material |
Metal |
| Package type |
Box |
| Power source |
AC |
| Package weight |
900 g |
| Wall mountable |
Yes |
| LED indicators |
Activity, Link, Power |
| Operating temperature (T-T) |
-20 – 50 °C |
| Package depth |
190 mm |
| Package height |
60 mm |
| Weight |
600 g |
| Package width |
245 mm |
| Width |
200 mm |
| Producator |
CUDY |
| Garantie |
