Descriere

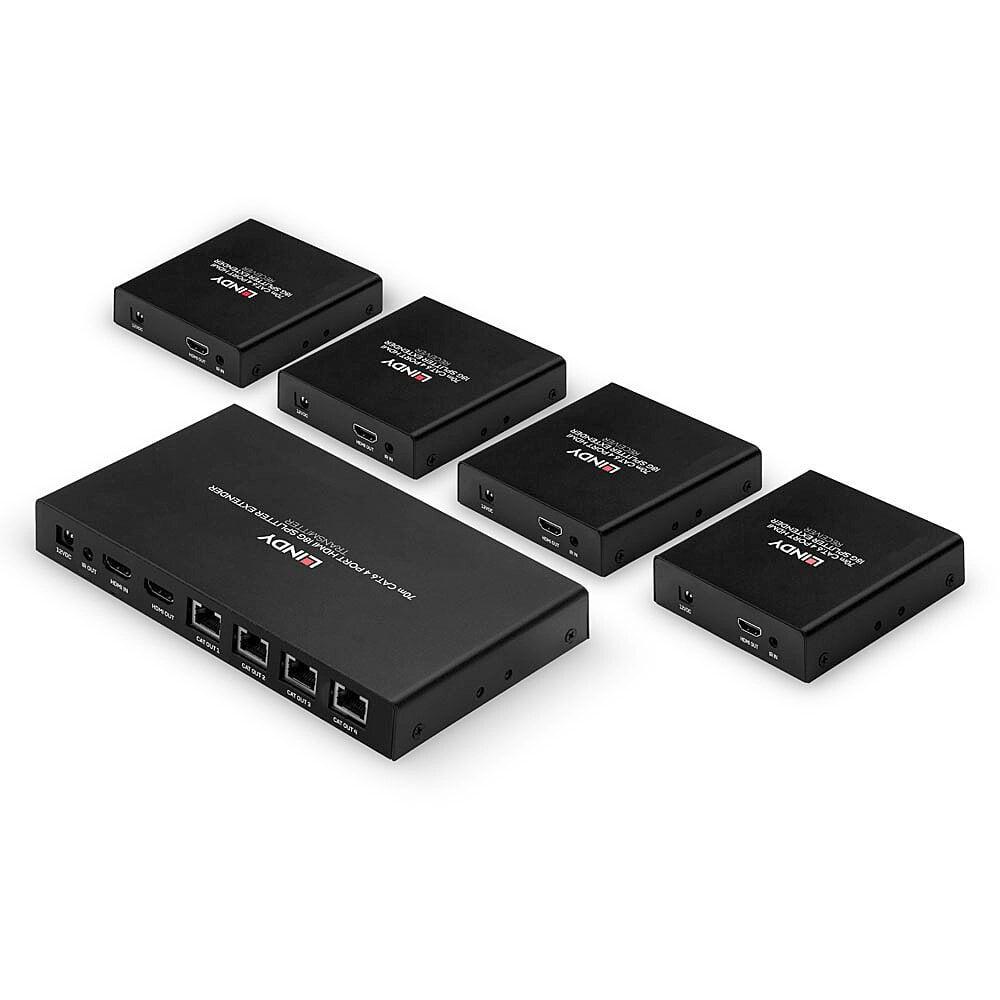

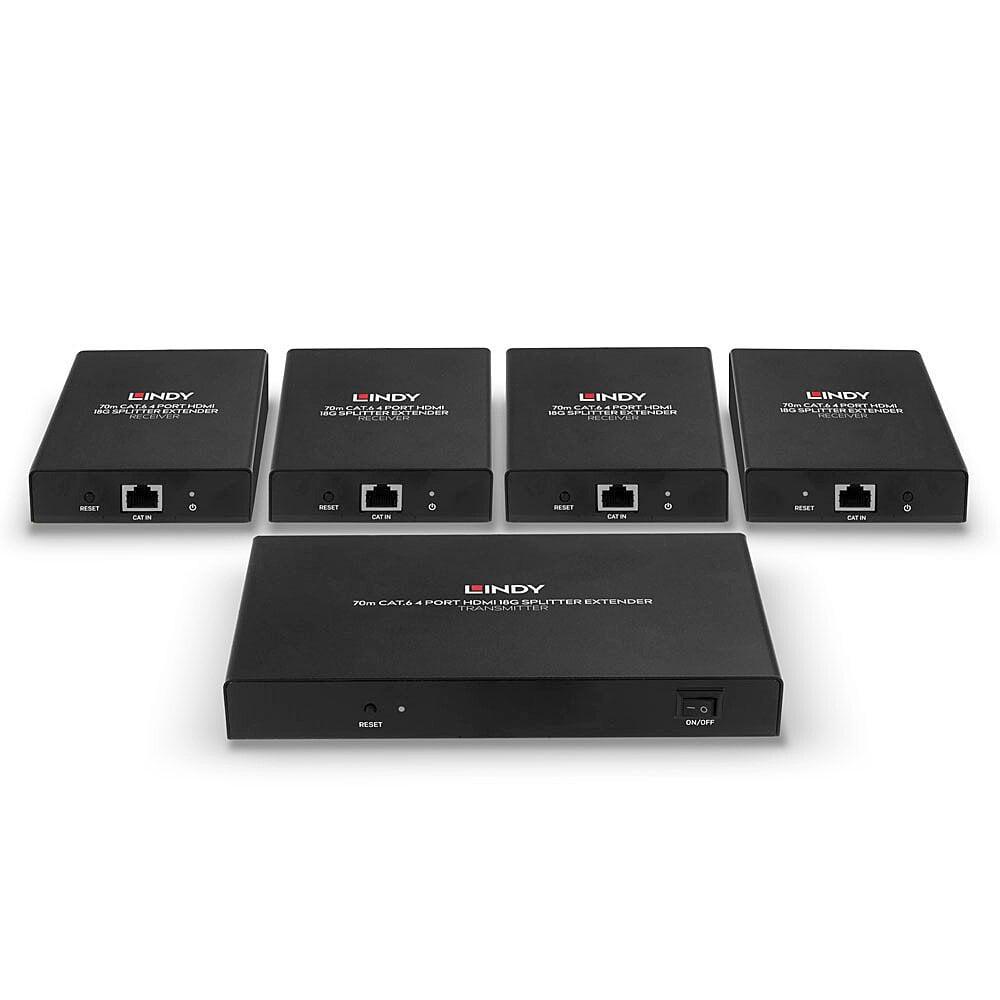

Lindy 70m 4 Port Cat.6 HDMI 4K60 Splitter Extender Description Distribute 4K HDMI signals to up to 4 displays in multiple locations Supports resolutions up to 4K@60Hz, with additional support for HDR Features a loop-through HDMI output on the transmitter for local monitoring or cascading for larger installs Supports Power over Cable (PoC) to the receivers, only a single power supply is required for operation Technical details Specifications AV Interface: HDMI Interface Standard: HDMI 2.0 Supported Bandwidth: 18Gbps Maximum Distance: 70m (229.66ft) Maximum Resolution: 3840×2160@60Hz 4:4:4 8bit HDCP Support: 2.2 EDID management: Preset Supported Audio: LPCM 2CH Separate Audio Ports: – IR Support: 20-60KHz CEC Support: – Serial Interface: – Transmission Protocol: – Transmission Medium: 1 x Cat.6 Laser Class (only for Fibre): – Wavelength (only for Fibre): – Chipset: GSV2006 & GSV5100 Special Features: PoC (Power over Cable) Connectors Transmitter Input: HDMI Type A (Female) Transmitter Output: 4 x RJ-45 (Female), HDMI Type A (Female), 3.5mm IR (Female) Receiver Input: RJ-45 (Female), 3.5mm IR (Female) Receiver Output: HDMI Type A (Female) Bi-directional Ports: – Power: 5.5/2.1mm Physical Properties Dimensions (approx.) WxDxH: Transmitter: 180x103x23mm (7.09×4.06×0.91in) , Receiver: 100x88x23mm (3.94×3.46×0.91in) Housing Material: Metal Net Weight: Transmitter: 0.39kg (0.86lb), Receiver: 0.199kg (0.44lb) Operating Temperature: 0°C – 50°C (32°F – 122°F) Storage Temperature: -10°C – 80°C (14°F – 176°F) Humidity: 5 – 90% RH (non-condensing) Power Requirements: 12VDC 2A Colour: Black Miscellaneous Packaging Type: Carton Box Packaging Dimensions: 423x60x354mm (16.65×2.36×13.94in) Gross Weight: 2kg (4.41lb) Warranty (Years): 2 Certificated: CE, UKCA, FCC, RoHS, REACH & California Propositon 65 Package Contents 70m Cat.6 4 Port HDMI 4K60 Splitter Extender 4 x Cat.6 HDMI Receivers IR Emitter Cable, 1.2m 4 x IR Receiver Cable, 1.2m 2 x Transmitter Mounting Brackets & Screws 8 x Receiver Mounting Brackets & Screws Multi-country Power Supply (UK, EU, US & AUS) Lindy Manual Purchasing Information No.: 38262 EAN: 4002888382625 https://www.lindy-international.com/70m-Cat-6-4-Port-HDMI-4K60-Splitter- Extender-.htm?websale8=ld0101.ld021102&pi=38262&ci=10

Livrare

Informații suplimentare

Material	Metal
Connectivity technology	Wired
Maximum refresh rate	60 Hz
HDMI version	2.0
Maximum resolution	3840 x 2160 pixels
HDCP	Yes
HDCP version	2.2
Mounting brackets included	Yes
HDMI in	1
Cable types supported	Cat6
Bandwidth	18 Gbit/s
Extended display identification data (EDID)	Yes
Rezolutie maxima	3840 x 2160 pixels
Refresh rate	60 Hz
Porturi Video:	4
Maximum transfer distance	70 m
Chipset	GSV2006, GSV5100
RJ-45 input ports	4
RJ-45 output ports	4
Number of HDMI outputs	5
Remote (IR) input	4
Remote (IR) output	1
Receiver dimensions (WxDxH)	100 x 88 x 23 mm
Receiver weight	199 g
Transmitter dimensions (WxDxH)	180 x 103 x 23 mm
Transmitter weight	390 g
Audio formats supported	LPCM
Product colour	Black
DC-in jack	Yes
Operating relative humidity (H-H)	5 – 90%
Operating temperature (T-T)	0 – 50 °C
Manual	Yes
Package type	Box
Package depth	60 mm
Storage temperature (T-T)	-10 – 80 °C
Package weight	2 kg
Package width	423 mm
Certification	CE, UKCA, FCC, RoHS, REACH & California Propositon 65
Package height	354 mm
Cables included	IR, IR sensor
Producator	LINDY
Garantie	24
