-26%

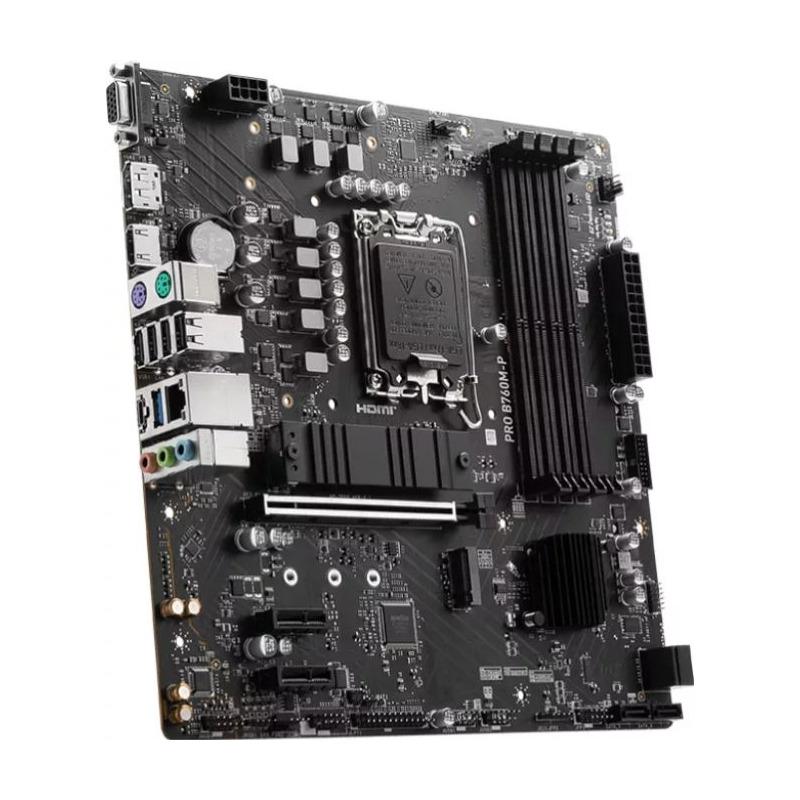

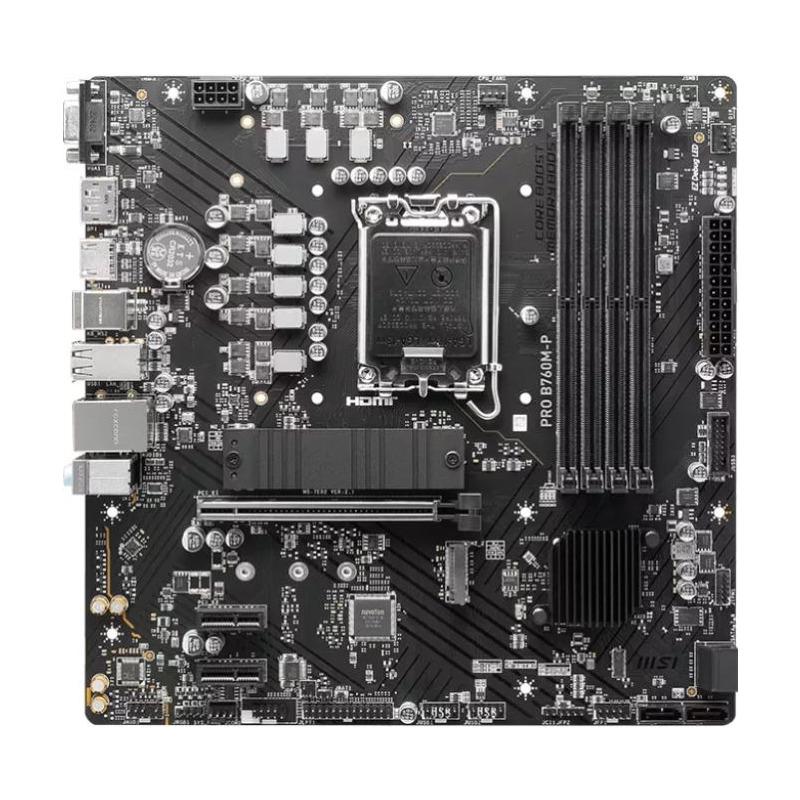

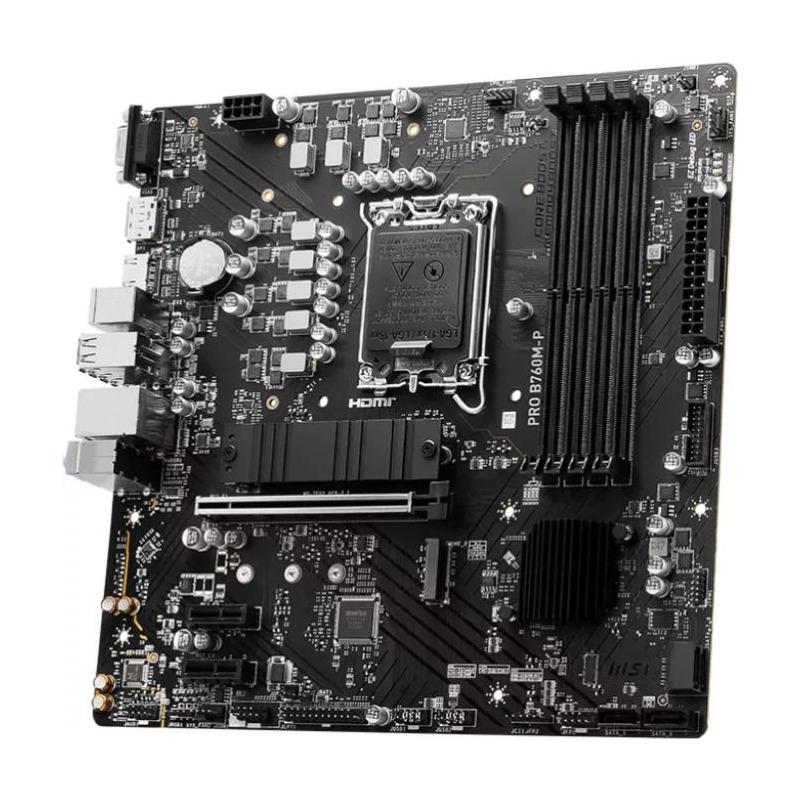

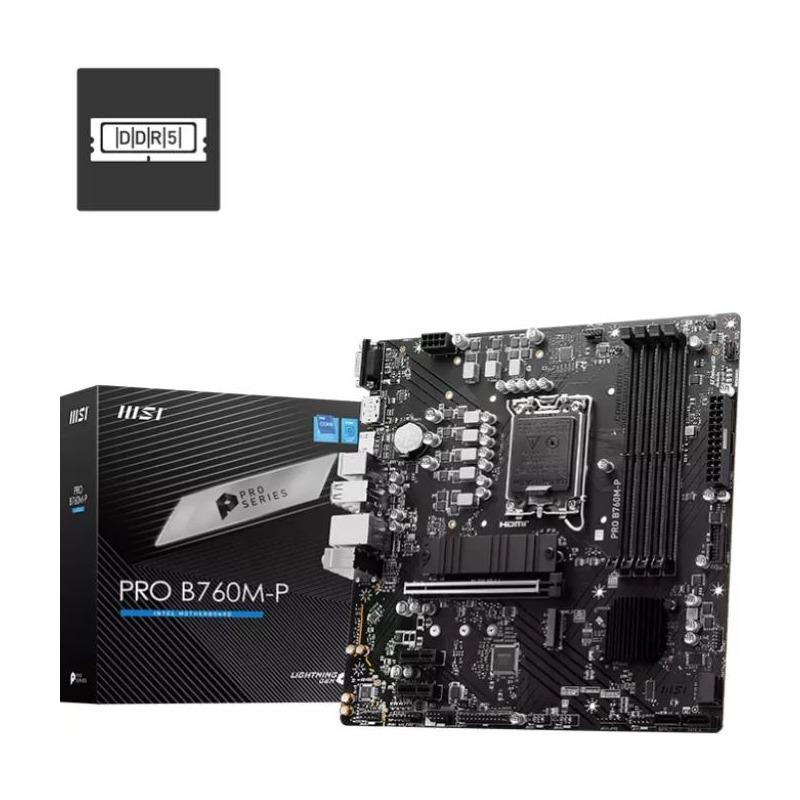

Placa de baza MSI PRO B760M-P, LGA 1700, DDR5, Micro-ATX
Prețul inițial a fost: 791.02 lei.583.52 leiPrețul curent este: 583.52 lei.
13 în stoc
Report Abuse
Descriere

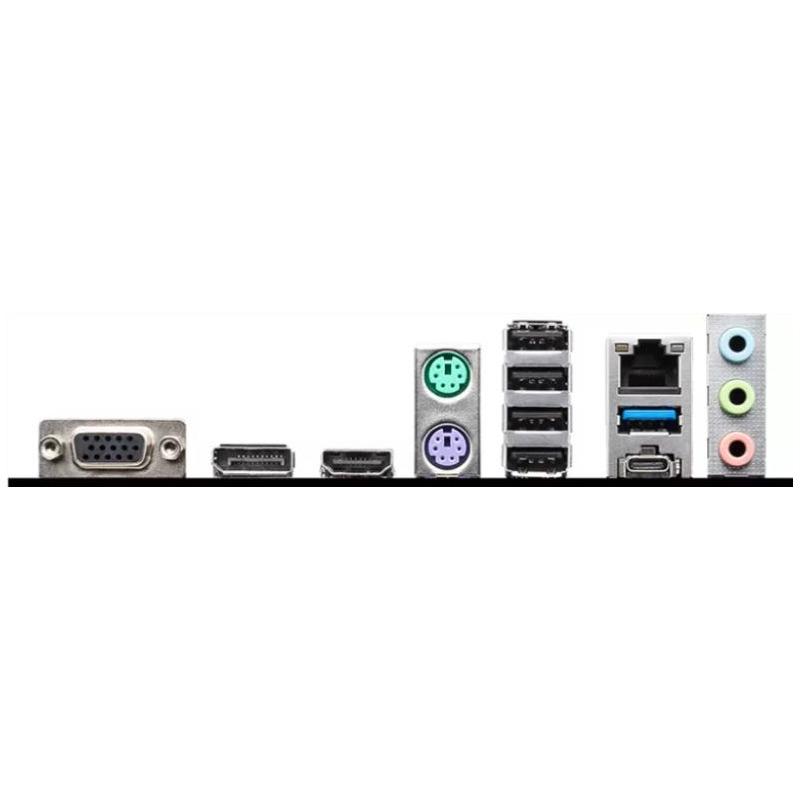

Placa de baza MSI PRO B760M-P LGA1700, 4xDDR5, 1x HDMI 1x DP 1x VGA, 1x PCIE x16 2x PCIE x1, 2x M.2, 4x SATA 6 GB/s, mATX
Livrare
Informații suplimentare
| PCI |
0 |
|---|---|
| Serial-or-Paralel |
No/No |
| Video-Connection |
VGA/HDMI |
| Wi-FI |
No |
| USB3 |
4-8 |
| PCI-Ex16 |
1 |
| Onboard-CPU |
No |
| RAID support |
Yes |
| Component for |
PC |
| DisplayPort version |
1.4 |
| Ethernet interface type |
Gigabit Ethernet |
| Processor manufacturer |
Intel |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
1 |
| HDMI version |
1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 2.0 ports quantity |
4 |
| Audio output channels |
7.1 channels |
| Line-in |
Yes |
| Audio Chip |
Realtek ALC897 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| Supported storage drive types |
HDD & SSD |
| LAN controller |
Realtek RTL8111H |
| VGA (D-Sub) ports quantity |
1 |
| Maximum internal memory |
192 GB |
| DisplayPorts quantity |
1 |
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| Model Chipset |
B760 |
| Gaming |
Nu |
| Soclu Procesor |
Socket 1700 |
| Tip Memorie: |
DDR5 |
| Numar sloturi memorie |
4 |
| Memorie maxima |
192 GB |
| Tip slot interfata grafica |
PCIe 4.0 x16 |
| Chipset audio integrat |
Realtek |
| Canale audio |
7.1 |
| Wireless |
Nu |
| Bluetooth |
Nu |
| USB Type-C |
Da |
| HDMI |
Da |
| Thunderbolt |
Nu |
| Sloturi M.2 |
2 |
| RJ-45 LAN |
1 |
| Number of memory slots |
4 |
| Unbuffered memory |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| Number of SATA III connectors |
4 |
| Front panel audio connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| Motherboard form factor |
micro ATX |
| BIOS type |
UEFI AMI |
| BIOS memory size |
256 Mbit |
| Clear CMOS jumper |
Yes |
| Supported memory types |
DDR5-SDRAM |
| Number of HDDs supported |
4 |
| RAID levels |
0, 1, 5, 10 |
| Front panel connector |
Yes |
| TPM connector |
Yes |
| RGB LED pin header |
Yes |
| Motherboard chipset family |
Intel |
| Processor socket |
LGA 1700 |
| Supported processor sockets |
LGA 1700 |
| ECC сompatibility |
Non-ECC |
| Number of storage drives supported |
6 |
| Number of COM connectors |
1 |
| Motherboard chipset |
Intel B760 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| Supported storage drive interfaces |
SATA III |
| Chassis intrusion connector |
Yes |
| USB 2.0 connectors |
4 |
| ACPI version |
6.4 |
| System Management BIOS (SMBIOS) version |
3.5 |
| PCI Express x1 (Gen 4.x) slots |
2 |
| Compatible processor series |
Intel® Celeron®, Intel® Pentium® Gold |
| PS/2 ports quantity |
2 |
| Parallel connector |
Yes |
| Supported memory clock speeds |
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz |
| MB-Format |
ATX |
| MB-Socket |
1700 |
| PCI-Ex1 |
2 |
| RAM-Slots |
2 |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| Cables included |
SATA |
| Power source type |
ATX |
| Width |
243.8 mm |
| Depth |
243.8 mm |
| Format |
Micro-ATX |
| Producator |
MSI |
| Garantie |
