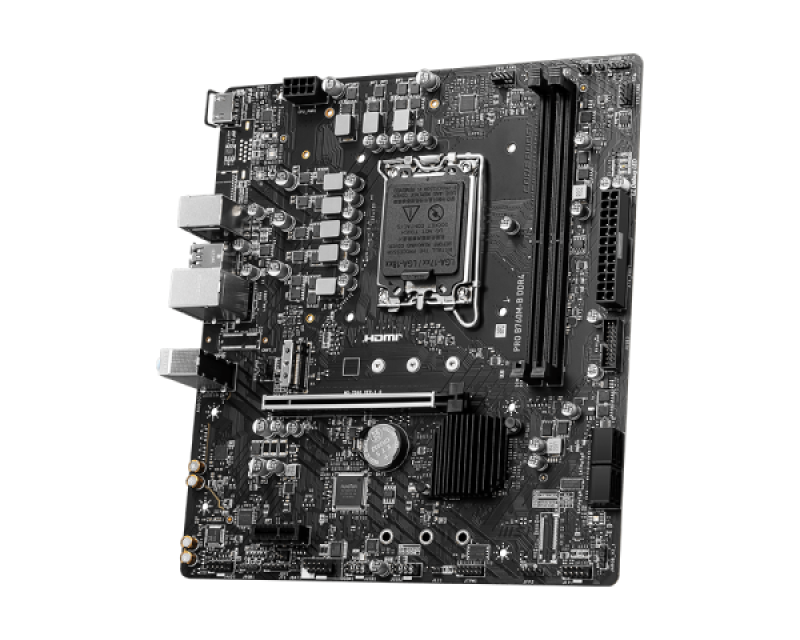

Placa de baza MSI PRO B760M-B, Socket 1700, DDR4, Micro-ATX

Name: Placa de baza MSI PRO B760M-B, Socket 1700, DDR4, Micro-ATX
SKU: PRO B760M-B DDR4
Availability: OutOfStock

625.89 lei

Stoc epuizat

Adaugă la favorite

SKU: PRO B760M-B DDR4 Categorie: Placi de baza

Descriere

Placa de baza MSI PRO B760M-B DDR4 LGA1700 Socket LGA 1700 Chipset B760 Memorie DDR4 Tip memorie DIMM Frecventa memorie 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz RAM maxim 128 GB PCI Express 4.0 x16

Livrare

Informații suplimentare

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI
Wi-FI	No
USB3	4-8
PCI-Ex1	1
PCI-Ex16	1
Onboard-CPU	No
RAID support	Yes
Component for	PC
Windows operating systems supported	Windows 10, Windows 11
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Processor manufacturer	Intel
Maximum internal memory	64 GB
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
Audio output channels	7.1 channels
PCI Express x16 slots	1
Audio Chip	Realtek ALC897
Number of memory slots	2
Supported memory types	DDR4-SDRAM
VGA (D-Sub) ports quantity	1
PCI Express x1 slots	1
DVI-D ports quantity	0
Model Chipset	B760
Gaming	Nu
Soclu Procesor	Socket 1700
Tip Memorie:	DDR4
Numar sloturi memorie	2
Memorie maxima	128 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Memory slots type	DIMM
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Motherboard form factor	micro ATX
RAID levels	0, 1, 5, 10
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
Motherboard chipset family	Intel
Processor socket	LGA 1700
Maximum number of SMP processors	1
Supported processor sockets	LGA 1700
ECC сompatibility	Non-ECC
Motherboard chipset	Intel B760
Number of SATA connectors	4
Compatible processor series	Intel® Celeron®, Intel® Pentium® Gold
Supported storage drive interfaces	M.2, SATA
MB-Socket	1700
MB-Format	micro-ATX
RAM-Slots	2
USB Type-C	N/A
Supported memory clock speeds	2133,2400,2666,2933,3200,3333,3400,3466,3600,3733,3800,4000,4200,4266,4400,4600,4800 MHz
Ethernet LAN (RJ-45) ports	1
Power source type	ATX
Width	220 mm
Depth	243.8 mm
Format	Micro-ATX
Producator	MSI
Garantie	36
