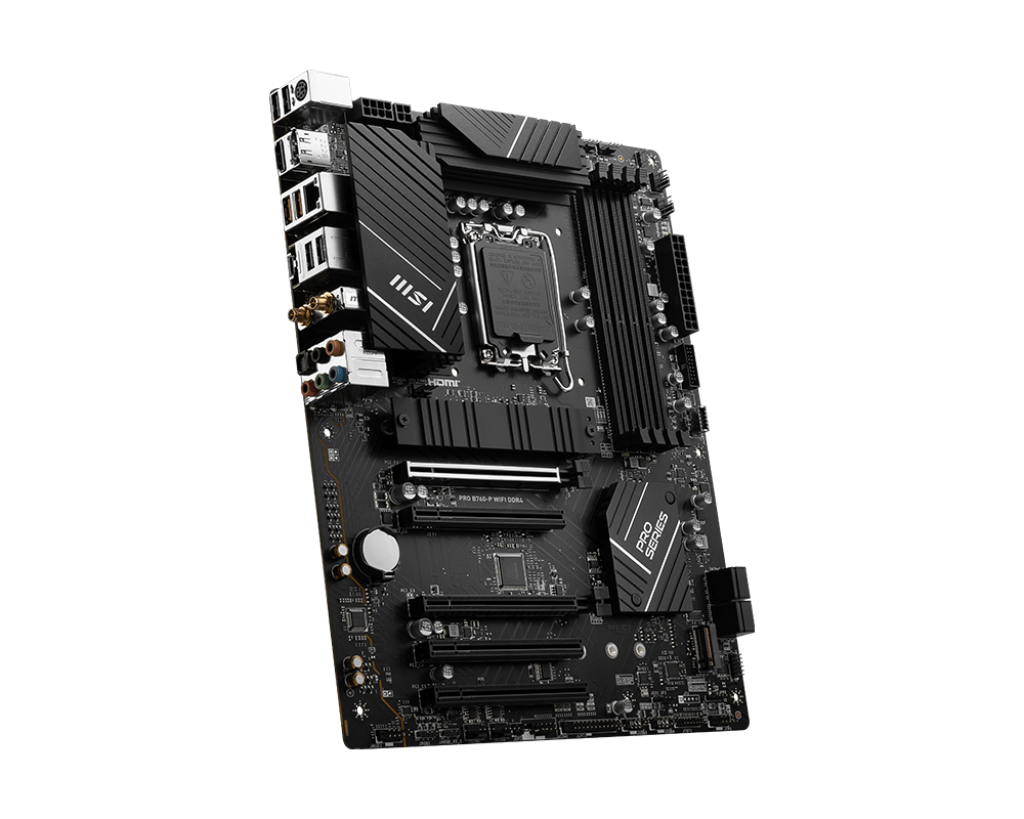

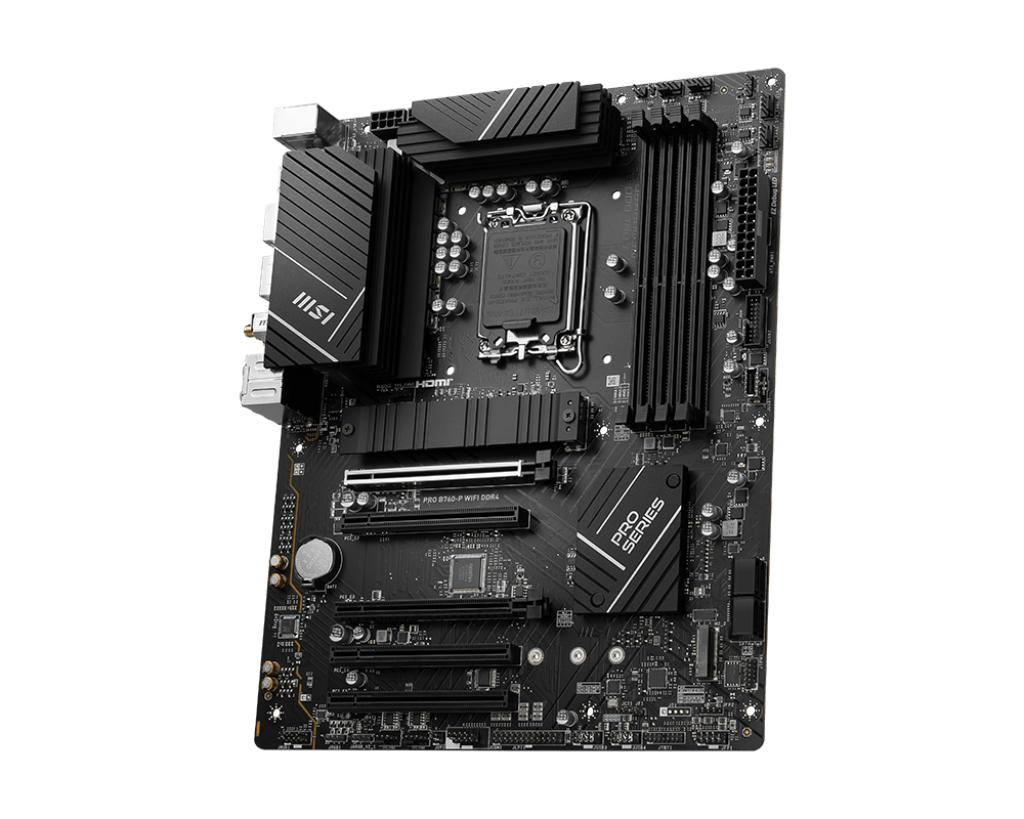

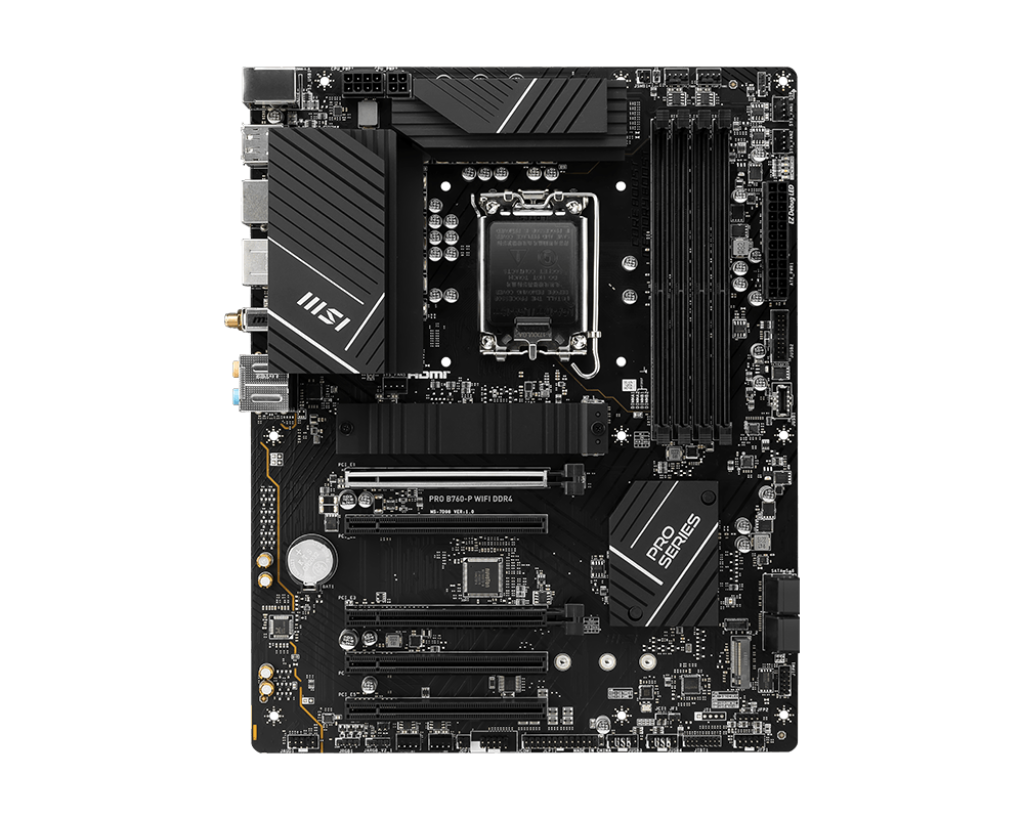

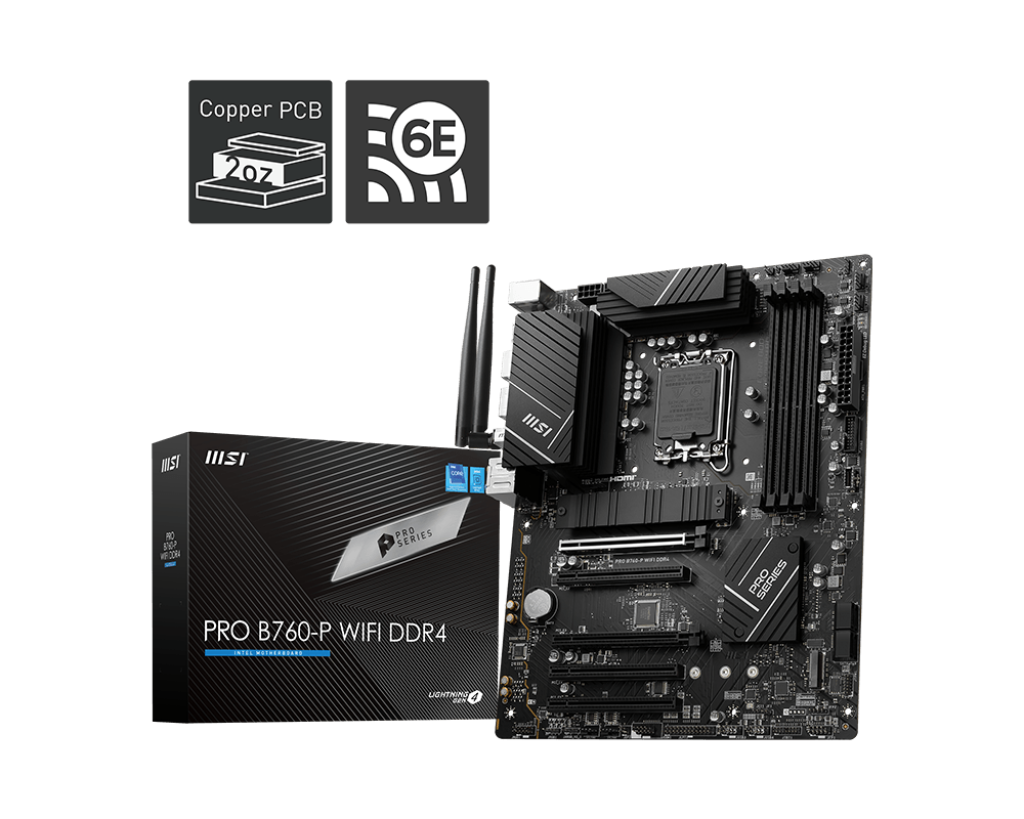

Placa de baza MSI PRO B760-P WIFI, Socket 1700, DDR4,
976.82 lei
Stoc epuizat
Report Abuse
Placa de baza MSI PRO B760-P WIFI DDR4 LGA1700 SPECIFICATIONS Model Name PRO B760-P WIFI DDR4 CPU Support Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors CPU Socket LGA 1700 Chipset Intel® B760 Chipset Expansion Slots 2x PCIe 4.0 x16 slots 3x PCIe 3.0 x1 slots Display Interface Support 4K@60Hz as specified in HDMITM 2.1, DisplayPort 1.4 – Requires Processor Graphics Memory Support 4 DIMMs, Dual Channel DDR4-5333+MHz(OC) Storage 2x M.2 Gen4 x4 64Gbps slots, 4x SATA 6Gbps ports USB ports 3x USB 3.2 Gen 2 10Gbps (2 Type-A + 1 Type-C), 3x USB 3.2 Gen 1 5Gbps (2 Type-A + 1 Type-C), 8x USB 2.0 LAN Realtek® RTL8125BG 2.5G LAN WiFi / BT Intel® Wi-Fi 6E, Bluetooth 5.3 Audio 8-Channel (7.1) HD Audio with Audio Boost
| PCI |
0 |
|---|---|
| Serial-or-Paralel |
No/No |
| Video-Connection |
HDMI/DP |
| Wi-FI |
Yes |
| USB3 |
4-8 |
| Onboard-CPU |
No |
| RAID support |
Yes |
| Component for |
PC |
| Windows operating systems supported |
Windows 10, Windows 11 |
| DisplayPort version |
1.4 |
| USB connector type |
USB Type-A |
| Memory channels |
Dual-channel |
| Processor manufacturer |
Intel |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| Maximum internal memory |
128 GB |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| Audio output channels |
7.1 channels |
| Line-in |
Yes |
| Audio Chip |
Realtek ALC897 |
| On-board graphics card |
No |
| Supported storage drive types |
HDD & SSD |
| Supported memory types |
DDR4-SDRAM |
| Number of M.2 (M) slots |
2 |
| DisplayPorts quantity |
1 |
| VGA (D-Sub) ports quantity |
0 |
| DVI-D ports quantity |
0 |
| Model Chipset |
B760 |
| Gaming |
Nu |
| Format |
ATX |
| Soclu Procesor |
Socket 1700 |
| Tip Memorie: |
DDR4 |
| Numar sloturi memorie |
4 |
| Memorie maxima |
128 GB |
| Tip slot interfata grafica |
PCIe 5.0 x16 |
| Chipset audio integrat |
Realtek |
| Canale audio |
7.1 |
| Wireless |
Da |
| USB Type-C |
Da |
| HDMI |
Da |
| Thunderbolt |
Nu |
| Sloturi M.2 |
2 |
| RJ-45 LAN |
1 |
| Number of memory slots |
4 |
| Memory slots type |
DIMM |
| Unbuffered memory |
Yes |
| Supported storage drive interfaces |
M.2, SATA III |
| Number of SATA III connectors |
4 |
| Number of SATA II connectors |
0 |
| Front panel audio connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| PS/2 ports quantity |
1 |
| BIOS type |
UEFI AMI |
| BIOS memory size |
256 Mbit |
| RAID levels |
0, 1, 5, 10 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| Front panel connector |
Yes |
| TPM connector |
Yes |
| RGB LED pin header |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Motherboard form factor |
ATX |
| Motherboard chipset family |
Intel |
| Processor socket |
LGA 1700 |
| Maximum number of SMP processors |
1 |
| Supported processor sockets |
LGA 1700 |
| ECC сompatibility |
Non-ECC |
| Motherboard chipset |
Intel B760 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| PCI Express x16 slots |
5 |
| Chassis intrusion connector |
Yes |
| USB 2.0 connectors |
4 |
| LAN controller |
Realtek RTL8125-BG |
| System Management BIOS (SMBIOS) version |
3.5 |
| Number of chassis fan connectors |
1 |
| Number of SATA connectors |
4 |
| Compatible processor series |
Intel® Celeron®, Intel® Pentium® Gold |
| Audio connector |
Yes |
| Supported memory clock speeds |
5333 MHz |
| Power fan connector |
Yes |
| USB 2.0 ports quantity |
8 |
| MB-Format |
ATX |
| MB-Socket |
1700 |
| RAM-Slots |
2 |
| PCI-Ex16 |
2 |
| PCI-Ex1 |
3 |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| Bluetooth |
Yes |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Bluetooth version |
5.3 |
| Ethernet LAN (RJ-45) ports |
1 |
| Cables included |
SATA |
| Power source type |
ATX |
| Width |
243.8 mm |
| Depth |
304.8 mm |
| Producator |
MSI |
| Garantie |
