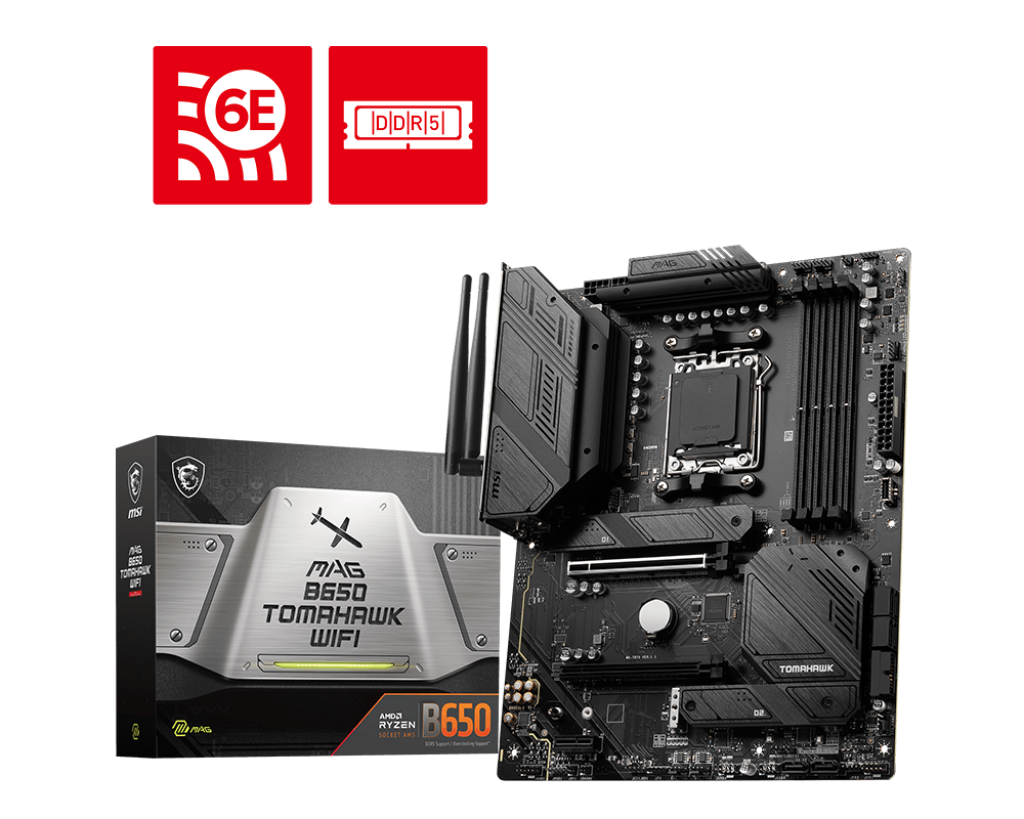

Placa de baza MSI MAG B650 TOMAHAWK WIFI, Socket AM5,
1,428.83 lei
Stoc epuizat
Report Abuse

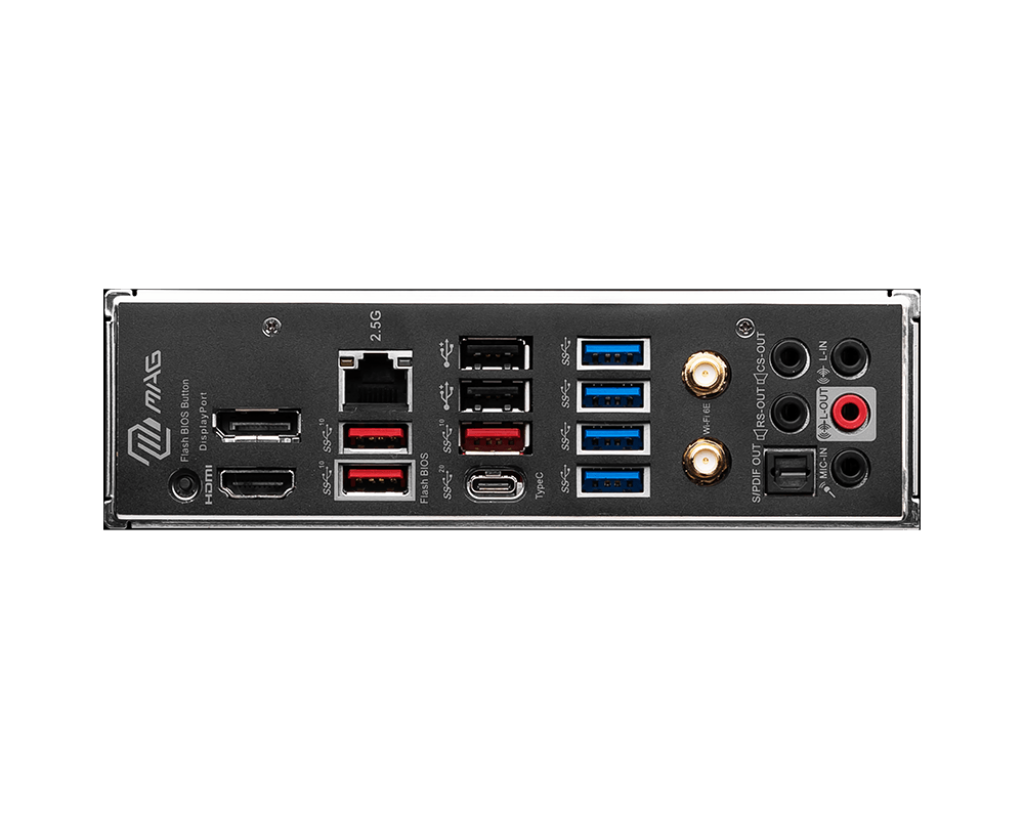

Placa de baza MSI MAG B650 TOMAHAWK WIFI Socket AM4 Model Name MAG B650 TOMAHAWK WIFI CPU Support Supports AMD Ryzen™ 7000 Series Desktop Processors CPU Socket Socket AM5 Chipset AMD B650 Chipset Graphics Interface 2x PCIe 4.0 x16 slots, 1x PCIe 3.0 x1 slot Display Interface Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort 1.4 – Requires Processor Graphics Memory Support 4 DIMMs, Dual Channel DDR5 6400+MHz (OC) Storage 3x M.2 Gen4 x4 64Gbps slots 6x SATA 6Gbps ports USB ports 1x USB 3.2 Gen 2×2 20Gbps (Type-C) 4x USB 3.2 Gen 2 10Gbps (3 Type-A + 1 Type-C) 6x USB 3.2 Gen 1 5Gbps (6 Type-A) 6x USB 2.0 LAN 1x Realtek® RTL8125BG 2.5Gbps LAN Wireless / Bluetooth AMD Wi-Fi 6E, Bleutooth 5.2 Audio 8-Channel (7.1) HD Audio with Audio Boost 5
| PCI |
0 |
|---|---|
| Serial-or-Paralel |
No/No |
| Video-Connection |
HDMI/DP |
| Wi-FI |
Yes |
| Onboard-CPU |
No |
| RAID support |
Yes |
| Component for |
PC |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| Maximum internal memory |
128 GB |
| Processor manufacturer |
AMD |
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| Audio output channels |
7.1 channels |
| LAN controller |
Realtek RTL8125B |
| S/PDIF out port |
Yes |
| VGA (D-Sub) ports quantity |
0 |
| DVI-D ports quantity |
0 |
| Model Chipset |
B650 |
| Gaming |
Nu |
| Format |
ATX |
| Soclu Procesor |
Socket AM5 |
| Tip Memorie: |
DDR5 |
| Numar sloturi memorie |
4 |
| Memorie maxima |
128 GB |
| Tip slot interfata grafica |
N/A |
| Chipset audio integrat |
Realtek |
| Canale audio |
7.1 |
| Wireless |
Da |
| Bluetooth |
Da |
| USB Type-C |
Da |
| HDMI |
Da |
| Thunderbolt |
Nu |
| Sloturi M.2 |
3 |
| RJ-45 LAN |
1 |
| Number of memory slots |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| Number of SATA II connectors |
0 |
| Number of SATA connectors |
0 |
| Front panel audio connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| Motherboard chipset family |
AMD |
| Supported memory types |
DDR5-SDRAM |
| Front panel connector |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Motherboard form factor |
ATX |
| Windows operating systems supported |
Windows 11 x64 |
| Number of M.2 (M) slots |
3 |
| ECC сompatibility |
Non-ECC |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| Audio Chip |
Realtek ALC4080 |
| RAID levels |
0, 1, 10 |
| Number of SATA III connectors |
6 |
| Chassis intrusion connector |
Yes |
| Processor socket |
Socket AM5 |
| Supported processor sockets |
Socket AM5 |
| Compatible processor series |
AMD Ryzen 7000 Series |
| USB 2.0 connectors |
4 |
| Motherboard chipset |
AMD B650 |
| Supported storage drive interfaces |
M.2, SATA |
| PC health monitoring |
Fan |
| Supported memory clock speeds |
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600 MHz |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| Bluetooth version |
5.2 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| Width |
304.8 mm |
| Depth |
243.8 mm |
| Producator |
MSI |
| Garantie |
