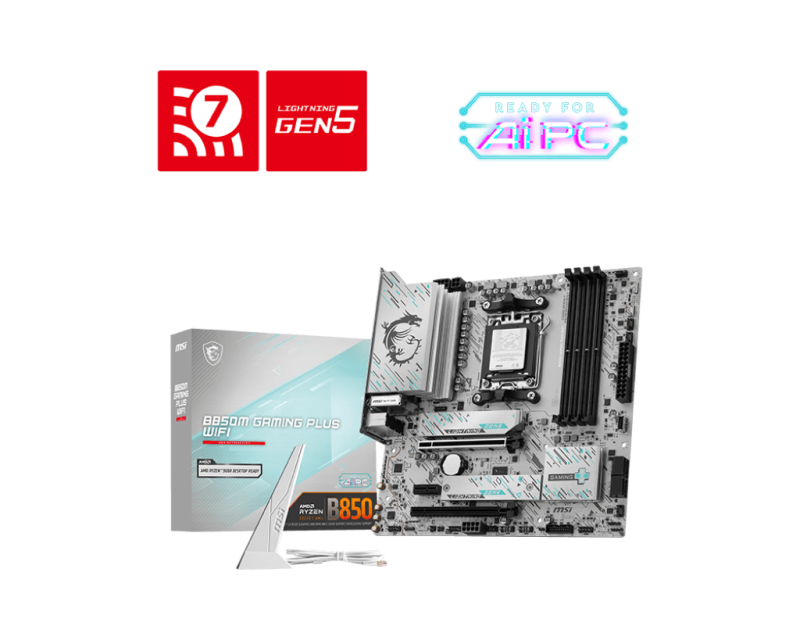

Placa de Baza MSI B850M GAMING PLUS WIFI AM5, 4x DDR5, 1x HDMI 1x DP, 2x PCIE 5.0 x16 1x PCIE 4.0 x1, 2x M,.2, 4x SATA 6GB/s, mATX
Livrare
Informații suplimentare
| PCI |
0 |
|---|---|
| Serial-or-Paralel |
No/No |
| Video-Connection |
HDMI |
| Wi-FI |
Yes |
| USB3 |
4-8 |
| Onboard-CPU |
No |
| RAID support |
Yes |
| Component for |
PC |
| Supported storage drive interfaces |
M.2 |
| Memory channels |
Dual-channel |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Processor manufacturer |
AMD |
| USB 2.0 ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| Audio output channels |
7.1 channels |
| PCI Express x16 (Gen 5.x) slots |
1 |
| PCI Express x16 slots |
1 |
| Audio Chip |
Realtek ALC897 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| On-board graphics card |
No |
| Supported storage drive types |
HDD & SSD |
| VGA (D-Sub) ports quantity |
0 |
| DVI-D ports quantity |
0 |
| Model Chipset |
B850 |
| Gaming |
Da |
| Format |
Micro-ATX (mATX) |
| Soclu Procesor |
Socket AM5 |
| Tip Memorie: |
DDR5 |
| Numar sloturi memorie |
4 |
| Memorie maxima |
256 GB |
| Tip slot interfata grafica |
PCIe 5.0 x16 |
| Chipset audio integrat |
Realtek |
| Canale audio |
7.1 |
| Wireless |
Da |
| HDMI |
Da |
| Thunderbolt |
Nu |
| Sloturi M.2 |
2 |
| RJ-45 LAN |
1 |
| Number of memory slots |
4 |
| Memory slots type |
DIMM |
| Number of SATA III connectors |
4 |
| Number of SATA II connectors |
0 |
| Number of SATA connectors |
0 |
| Front panel audio connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| Motherboard form factor |
micro ATX |
| Motherboard chipset family |
AMD |
| BIOS type |
UEFI AMI |
| BIOS memory size |
256 Mbit |
| mSATA ports quantity |
0 |
| Supported memory types |
DDR5-SDRAM |
| Maximum internal memory |
256 GB |
| Number of HDDs supported |
4 |
| Number of storage drives supported |
7 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| Front panel connector |
Yes |
| Number of CPU fan connectors |
2 |
| RGB LED pin header |
Yes |
| Windows operating systems supported |
Windows 11 x64 |
| Number of M.2 (M) slots |
3 |
| 1st M.2 highest PCI Express generation |
5.0 |
| 3rd M.2 highest PCI Express generation |
4.0 |
| Total number of SATA connectors |
4 |
| Ethernet interface type |
5 Gigabit Ethernet |
| ECC сompatibility |
Non-ECC |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| RAID levels |
0, 1, 10 |
| Processor socket |
Socket AM5 |
| Supported processor sockets |
Socket AM5 |
| PCI Express x4 slots |
1 |
| Compatible processor series |
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Motherboard chipset |
AMD B850 |
| 1st M.2 largest key size |
2280 |
| 2nd M.2 largest key size |
2280 |
| 3rd M.2 largest key size |
2280 |
| USB 2.0 connectors |
4 |
| 2nd M.2 highest PCI Express generation |
5.0 |
| Number of water pump connectors |
1 |
| Number of RGB LED pin headers |
3 |
| LAN controller |
Realtek RTL8126 |
| ACPI version |
6.5 |
| System Management BIOS (SMBIOS) version |
3.7 |
| PCI-Ex1 |
0 |
| RAM-Slots |
4 |
| MB-Format |
micro-ATX |
| USB Type-C |
N/A |
| MB-Socket |
AM5 |
| PCI-Ex16 |
5 |
| Supported memory clock speeds |
4800,6400,8200 MHz |
| Bluetooth |
Yes |
| Product colour |
Black |
| Bluetooth version |
5.4 |
| Ethernet LAN (RJ-45) ports |
1 |
| Width |
243.8 mm |
| Depth |
243.8 mm |
| Producator |
MSI |
