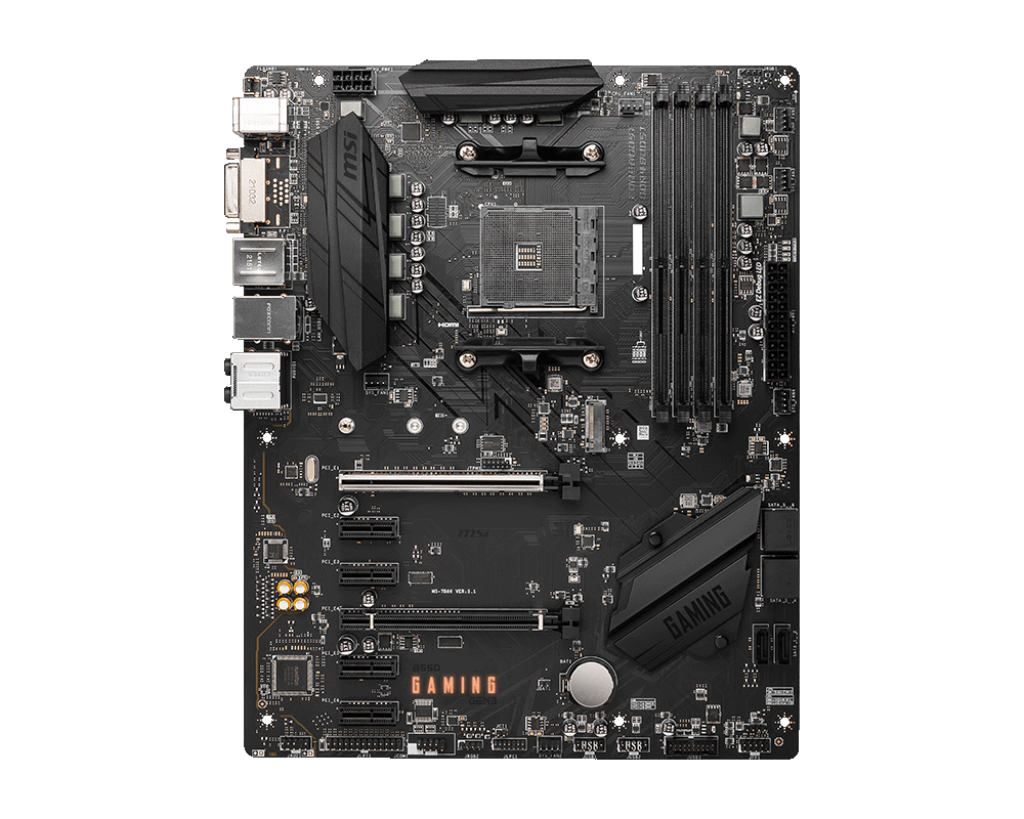

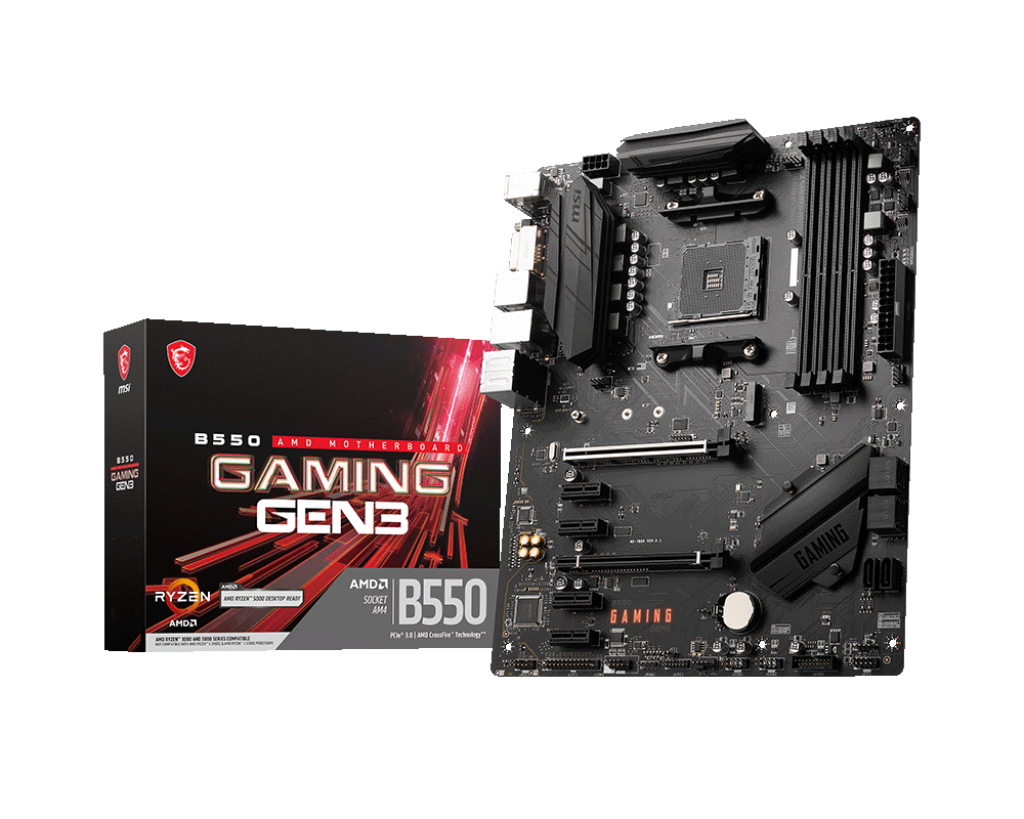

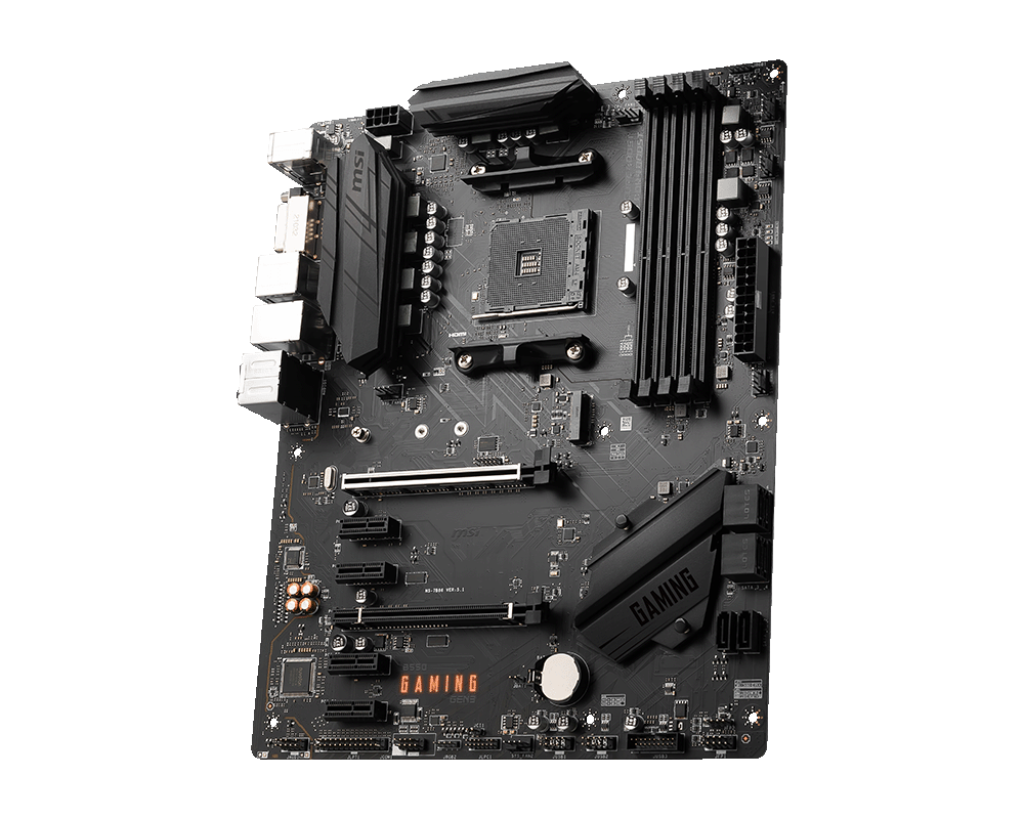

Placa de bază MSI B550 GAMING DDR4 AM4
662.64 lei
Stoc epuizat
Report Abuse
Placa de baza MSI B550 GAMING AM4 DDR4 Model Name B550 GAMING GEN3 CPU Support Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G- Series, and 3000 Series processors CPU Socket AMD Socket AM4 Chipset AMD B550 Chipset Graphics Interface 2x PCIe 3.0 x16 slots Support AMD® CrossFire™ Technology Display Interface Support 4K@30Hz as specified in HDMI2.0b, DVI-D – Requires Processor Graphics Memory Support 4 DIMMs, Dual Channel DDR4-4400+ (OC) Expansion Slots 4 x PCIe x1 slots Storage 1x M.2 Gen3 x4 32Gbps slot, 6x SATA 6Gb/s USB ports 2x USB 3.2 Gen2 10Gbps (2 Type-A) 4x USB 3.2 Gen1 5Gbps (4 Type-A) 6x USB 2.0 LAN Realtek® 8111H Gigabit LAN Audio 8-Channel (7.1) HD Audio with Audio Boost
| PCI |
0 |
|---|---|
| Serial-or-Paralel |
No/No |
| Video-Connection |
HDMI |
| Wi-FI |
No |
| Onboard-CPU |
No |
| RAID support |
Yes |
| Component for |
PC |
| Ethernet interface type |
Gigabit Ethernet |
| Memory channels |
Dual-channel |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| Maximum internal memory |
128 GB |
| Processor manufacturer |
AMD |
| USB 2.0 ports quantity |
2 |
| HDMI version |
2.0b |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| Audio output channels |
7.1 channels |
| Audio Chip |
Realtek ALC897 |
| On-board graphics card |
No |
| Supported memory types |
DDR4-SDRAM |
| LAN controller |
Realtek RTL8111H |
| Processor socket |
Socket AM4 |
| Number of M.2 (M) slots |
1 |
| S/PDIF out port |
Yes |
| Motherboard chipset |
AMD B550 |
| DVI-D ports quantity |
1 |
| Digital audio optical out |
1 |
| VGA (D-Sub) ports quantity |
0 |
| DirectX version |
12.0 |
| Maximum resolution |
4096 x 2160 pixels |
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| Drivers included |
Yes |
| Parallel processing technology support |
CrossFire |
| Model Chipset |
B550 |
| Gaming |
Da |
| Format |
ATX |
| Soclu Procesor |
Socket AM4 |
| Tip Memorie: |
DDR4 |
| Numar sloturi memorie |
4 |
| Memorie maxima |
128 GB |
| Tip slot interfata grafica |
PCIe 3.0 x16 |
| Chipset audio integrat |
Realtek |
| Canale audio |
7.1 |
| Wireless |
Nu |
| HDMI |
Da |
| Thunderbolt |
Nu |
| Sloturi M.2 |
1 |
| RJ-45 LAN |
1 |
| Compatible processor series |
AMD Ryzen 3000 Series |
| Number of memory slots |
4 |
| Memory slots type |
DIMM |
| Unbuffered memory |
Yes |
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| Number of SATA II connectors |
0 |
| Number of SATA connectors |
0 |
| Number of Parallel ATA connectors |
0 |
| Front panel audio connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| Number of chassis fan connectors |
2 |
| PS/2 ports quantity |
1 |
| Motherboard chipset family |
AMD |
| BIOS type |
UEFI AMI |
| BIOS memory size |
256 Mbit |
| Clear CMOS jumper |
Yes |
| mSATA ports quantity |
0 |
| RGB LED pin header |
Yes |
| Motherboard form factor |
ATX |
| Maximum number of SMP processors |
1 |
| 12V power connector |
Yes |
| ECC сompatibility |
Non-ECC |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| Supported storage drive interfaces |
SATA III |
| RAID levels |
0, 1, 10 |
| Maximum graphics card memory |
16000 MB |
| Number of SATA III connectors |
6 |
| Chassis intrusion connector |
Yes |
| eSATA ports quantity |
0 |
| Firewire (IEEE 1394) ports |
0 |
| PCI Express x16 slots |
2 |
| PCI Express x16 (Gen 3.x) slots |
2 |
| Supported memory clock speeds |
4400 MHz |
| PCI Express x1 slots |
4 |
| USB Type-C |
N/A |
| Product colour |
Black |
| Ethernet LAN (RJ-45) ports |
1 |
| Cables included |
SATA |
| Bluetooth |
No |
| Width |
30.5 mm |
| Depth |
24.4 mm |
| Producator |
MSI |
| Garantie |
