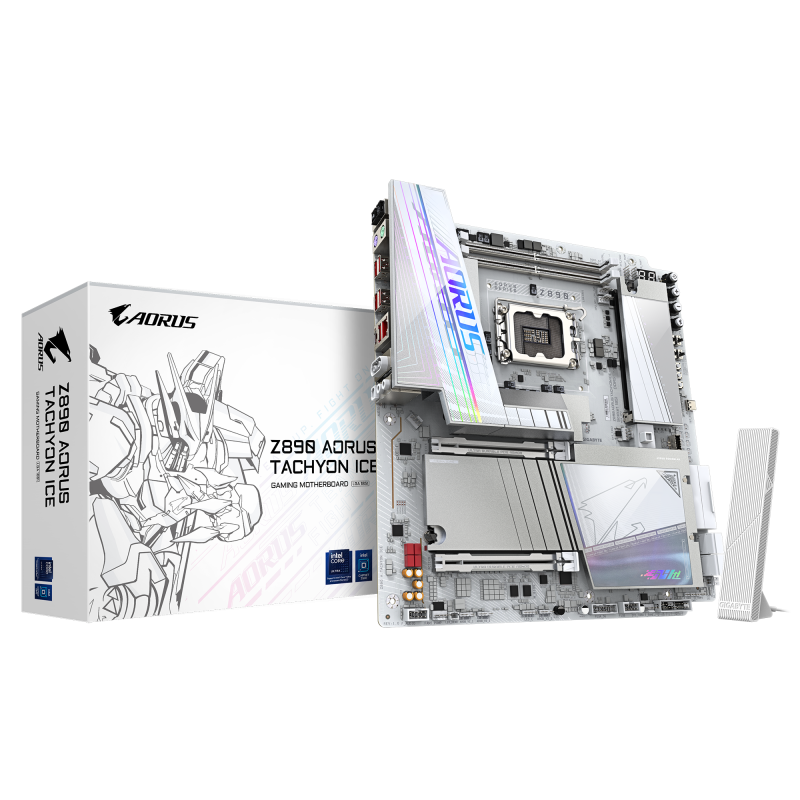

GIGABYTE Z890 AORUS TACHYON ICE. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8126, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
| Wi-FI |
Yes |
|---|---|
| RAID support |
Yes |
| Component for |
PC |
| Memory channels |
Dual-channel |
| Processor manufacturer |
Intel |
| Ethernet LAN |
Yes |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Maximum internal memory |
128 GB |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| USB 2.0 ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| Audio output channels |
7.1 channels |
| Line-in |
Yes |
| Number of memory slots |
2 |
| Supported storage drive types |
HDD & SSD |
| Cooling type |
Passive |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
5 |
| S/PDIF out port |
Yes |
| HDCP |
Yes |
| Screws included |
Yes |
| DisplayPort version |
2.1 |
| Digital audio optical out |
1 |
| VGA (D-Sub) ports quantity |
0 |
| HDMI ports quantity |
0 |
| Parallel processing technology support |
Not supported |
| DVI-D ports quantity |
0 |
| DirectX version |
12.0 |
| Maximum resolution |
5120 x 2880 pixels |
| Model Chipset |
Z890 |
| Gaming |
Da |
| Format |
E-ATX |
| Soclu Procesor |
Socket 1851 |
| Tip Memorie: |
DDR5 |
| Numar sloturi memorie |
2 |
| Memorie maxima |
128 GB |
| Tip slot interfata grafica |
N/A |
| Chipset audio integrat |
Realtek |
| Canale audio |
7.1 |
| Wireless |
Da |
| HDMI |
Nu |
| Thunderbolt |
Nu |
| Sloturi M.2 |
4 |
| RJ-45 LAN |
1 |
| Memory slots type |
DIMM |
| Unbuffered memory |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
4 |
| Front panel audio connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| BIOS type |
UEFI AMI |
| Clear CMOS jumper |
Yes |
| Processor socket |
LGA 1851 (Socket V1) |
| Supported processor sockets |
LGA 1851 |
| Supported memory types |
DDR5-SDRAM |
| ECC сompatibility |
ECC & Non-ECC |
| Number of HDDs supported |
4 |
| RAID levels |
0, 1, 5, 10 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| Front panel connector |
Yes |
| Number of CPU fan connectors |
2 |
| RGB LED pin header |
Yes |
| Number of RGB LED pin headers |
4 |
| WiFi-AP antenna jack |
2 |
| WLAN controller model |
Realtek RTL8922AE |
| Motherboard chipset family |
Intel |
| PC health monitoring |
Fan, Temperature, Voltage, Water cooling |
| Windows operating systems supported |
Windows 11 x64 |
| 1st M.2 largest key size |
25110 |
| 1st M.2 highest PCI Express generation |
5.0 |
| 2nd M.2 highest PCI Express generation |
4.0 |
| 3rd M.2 largest key size |
22110 |
| 3rd M.2 highest PCI Express generation |
4.0 |
| ACPI version |
5.0 |
| Desktop Management Interface (DMI) version |
2.7 |
| System Management BIOS (SMBIOS) version |
2.7 |
| Lithium weight per battery |
0.07 g |
| Antenna included |
Yes |
| 12V power connector |
Yes |
| Compatible processor series |
Intel Core Ultra (Series 2) |
| Number of storage drives supported |
8 |
| Thunderbolt headers |
1 |
| Motherboard chipset |
Intel Z890 |
| Number of M.2 (M) slots |
4 |
| PCI Express x16 (Gen 5.x) slots |
2 |
| 4th M.2 highest PCI Express generation |
4.0 |
| USB 2.0 connectors |
1 |
| Number of EPS power connectors (8-pin) |
1 |
| 4th M.2 largest key size |
22110 |
| PS/2 ports quantity |
2 |
| 2nd M.2 largest key size |
25110 |
| Supported storage drive interfaces |
M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| Motherboard form factor |
Extended ATX |
| Audio Chip |
Realtek ALC1220-VB |
| LAN controller |
Realtek RTL8126 |
| BIOS memory size |
512 Mbit |
| Supported memory clock speeds |
9500 MHz |
| Number of temperature sensor headers |
2 |
| USB Type-C |
N/A |
| Number of noise detection headers |
1 |
| Headphone outputs |
1 |
| Bluetooth |
Yes |
| Batteries included |
Yes |
| Bluetooth version |
5.4 |
| Ethernet LAN (RJ-45) ports |
1 |
| Product colour |
White |
| Height |
35 mm |
| Width |
305 mm |
| Country of origin |
Taiwan |
| Warranty period |
3 year(s) |
| Power source type |
ATX |
| Battery weight |
3 g |
| Number of battery cells |
1 |
| Battery technology |
Lithium-Manganese Dioxide (LiMnO2) |
| Battery type |
CR2032 |
| Products per shipping (inner) case |
1 pc(s) |
| Package depth |
335 mm |
| Package width |
400 mm |
| Package height |
430 mm |
| Depth |
285 mm |
| Package weight |
3.87 kg |
| Ethernet interface type |
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Weight |
3.22 kg |
| Number of chassis fan connectors |
7 |
| Number of water pump connectors |
4 |
| Bundled software |
Norton® Internet Security (OEM version) LAN bandwidth management software |
| Producator |
GIGABYTE |
