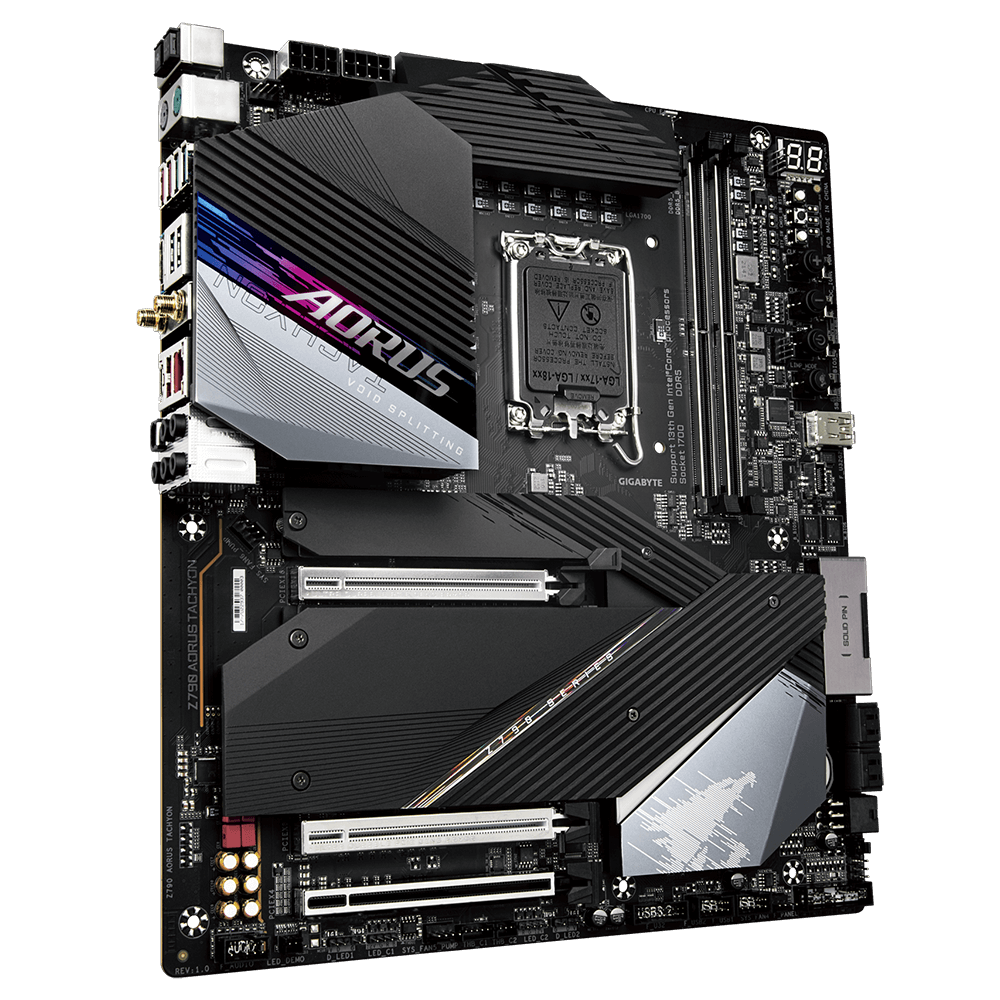

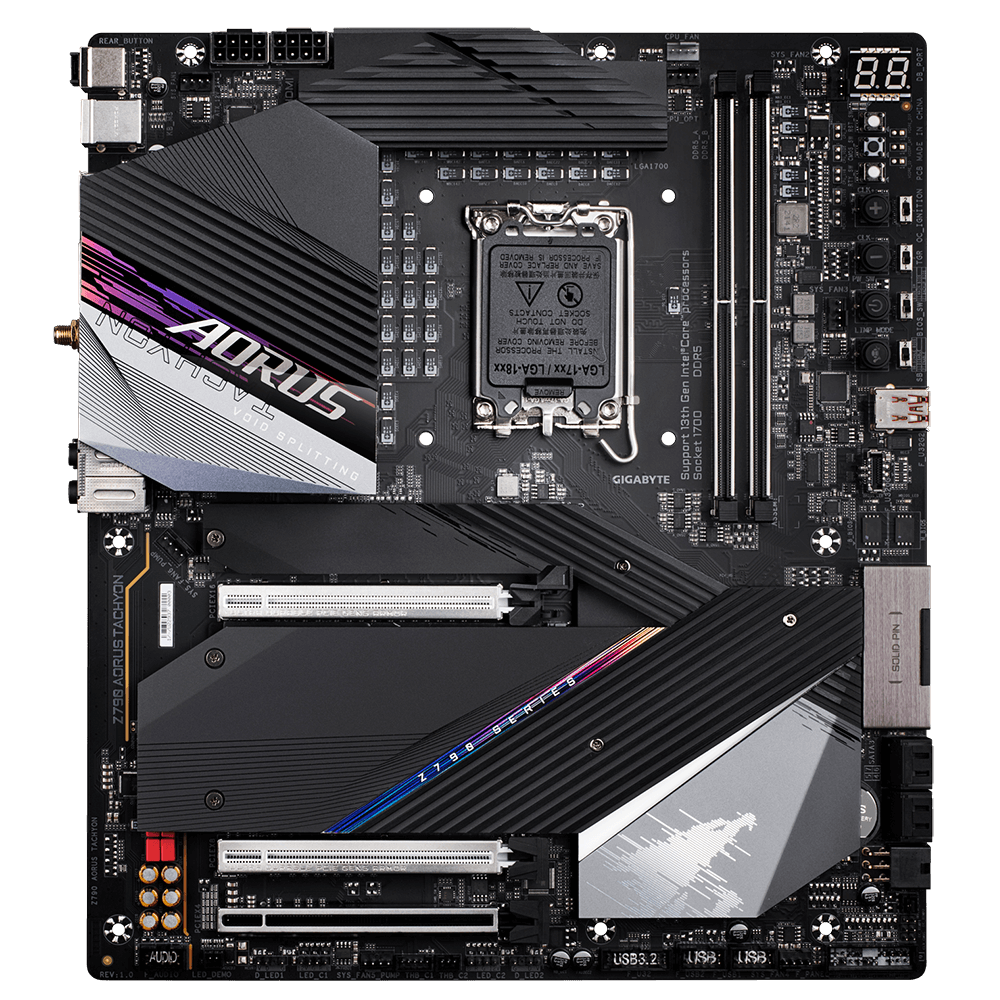

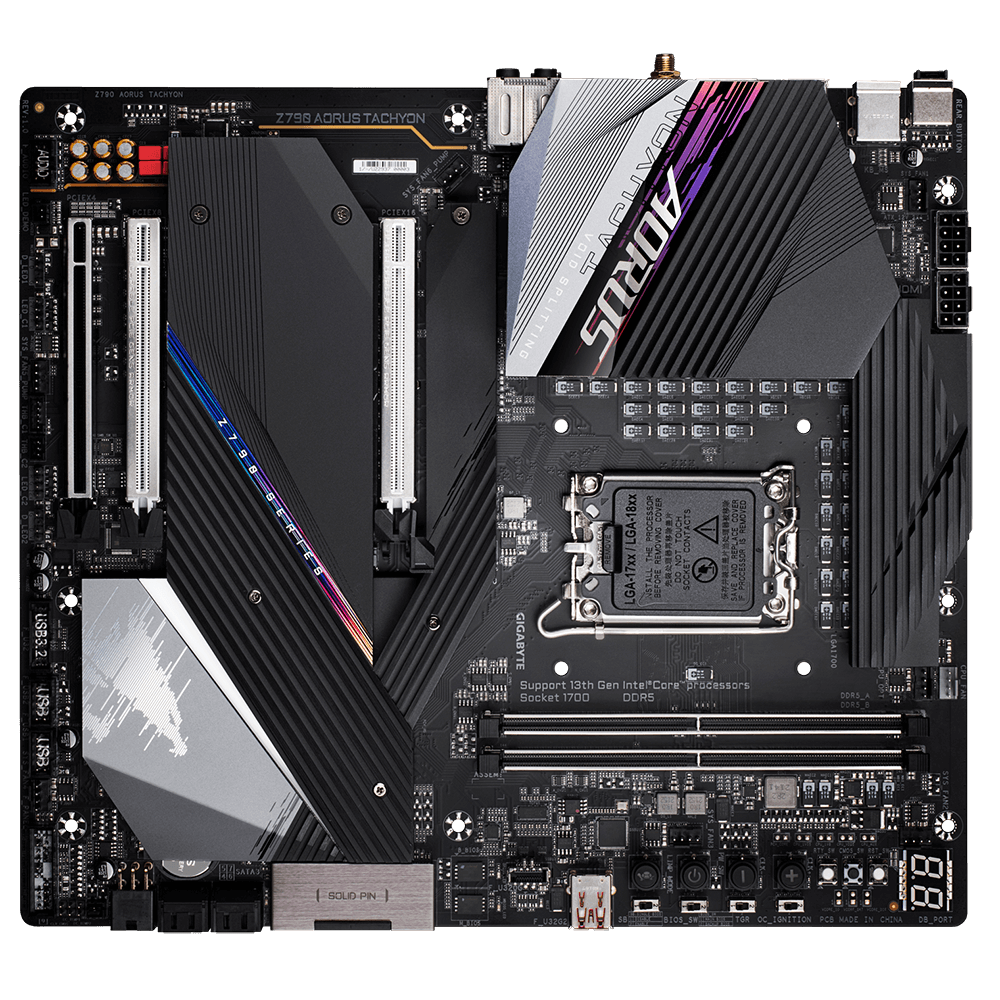

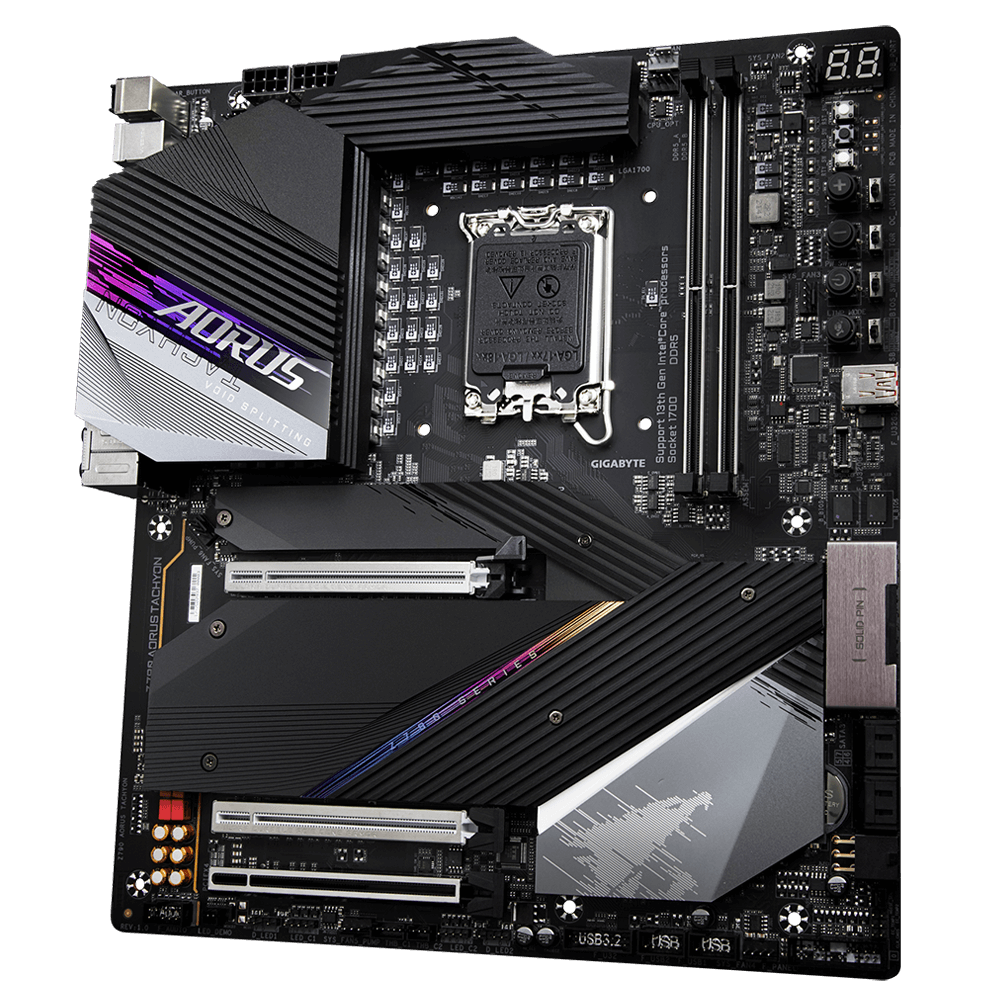

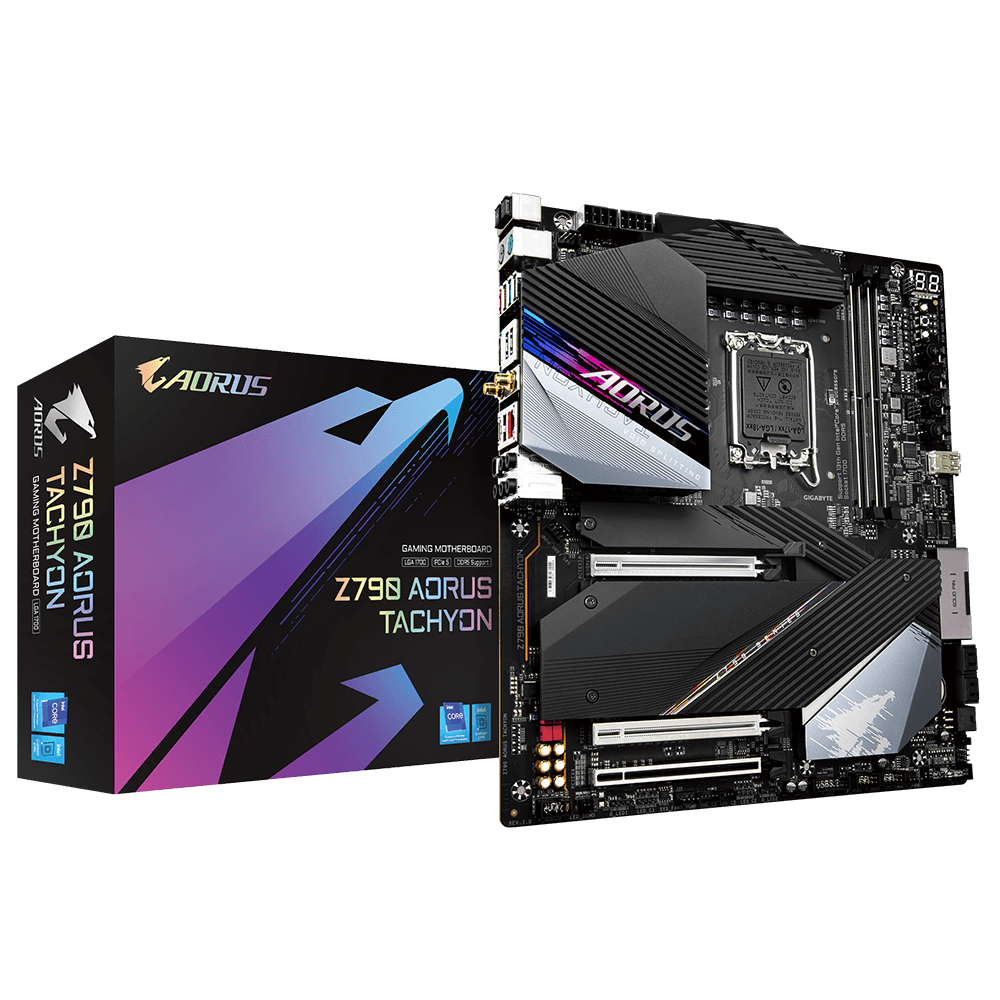

Placa de bază Gigabyte Z790 AORUS TACHYON LGA1700

Name: Placa de bază Gigabyte Z790 AORUS TACHYON LGA1700
SKU: Z790 AORUS TACHYON
Availability: OutOfStock

4,998.85 lei

Stoc epuizat

Adaugă la favorite

SKU: Z790 AORUS TACHYON Categorie: Placi de baza

Descriere

Placa de baza Gigabyte Z790 AORUS TACHYON, 2x DDR5 8333MHz, 1x HDMI, 3x PCIe x16, 2x M.2, WIFI 6E, 2.5Gbps LAN, E-ATX

Livrare

Informații suplimentare

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI
Wi-FI	Yes
Onboard-CPU	No
RAID support	Yes
Component for	PC
USB connector type	USB Type-A, USB Type-C
Memory channels	Dual-channel
Processor manufacturer	Intel
Maximum internal memory	64 GB
On-board graphics card	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.0
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 2.0 ports quantity	0
Graphics card family	Intel
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Audio output channels	7.1 channels
Number of memory slots	2
Supported storage drive types	HDD & SSD
S/PDIF out port	Yes
WLAN controller model	Intel Wi-Fi 6E AX210
HDCP	Yes
Digital audio optical out	1
VGA (D-Sub) ports quantity	0
DVI-D ports quantity	0
Maximum resolution	4096 x 2160 pixels
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	Z790
Gaming	Nu
Format	E-ATX
Soclu Procesor	Socket 1700
Tip Memorie:	DDR5
Numar sloturi memorie	2
Memorie maxima	64 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
USB Type-C	Da
HDMI	Da
Thunderbolt	Da
Sloturi M.2	2
RJ-45 LAN	1
Memory slots type	DIMM
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
ECC сompatibility	ECC & Non-ECC
RAID levels	0, 1, 5, 10
Front panel connector	Yes
RGB LED pin header	Yes
WiFi-AP antenna jack	2
Ethernet interface type	2.5 Gigabit Ethernet
Motherboard chipset family	Intel
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
Thunderbolt headers	2
12V power connector	Yes
Motherboard chipset	Intel Z790 Express
Clear CMOS button	Yes
S/PDIF out connector	Yes
Number of storage drives supported	8
Number of M.2 (M) slots	4
PCI Express x16 slots	3
PS/2 ports quantity	2
Graphics card	HD Graphics
Motherboard form factor	Extended ATX
Audio Chip	Realtek ALC1220-VB
PC health monitoring	Fan, Noise, Temperature, Voltage, Water cooling
Power fan connector	Yes
BIOS memory size	512 Mbit
Supported memory module capacities	32GB
Supported memory clock speeds	8333 MHz
Supported storage drive interfaces	M.2, NVMe, PCI Express 4.0, SATA
USB 3.2 Gen 2 (3.1 Gen 2) connectors	2
Serial port headers	4
Bluetooth	Yes
Bluetooth version	5.3
Ethernet LAN (RJ-45) ports	1
Cables included	SATA
Power source type	ATX
Headphone outputs	5
Depth	270 mm
Width	30.5 mm
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Producator	GIGABYTE
Garantie	36
