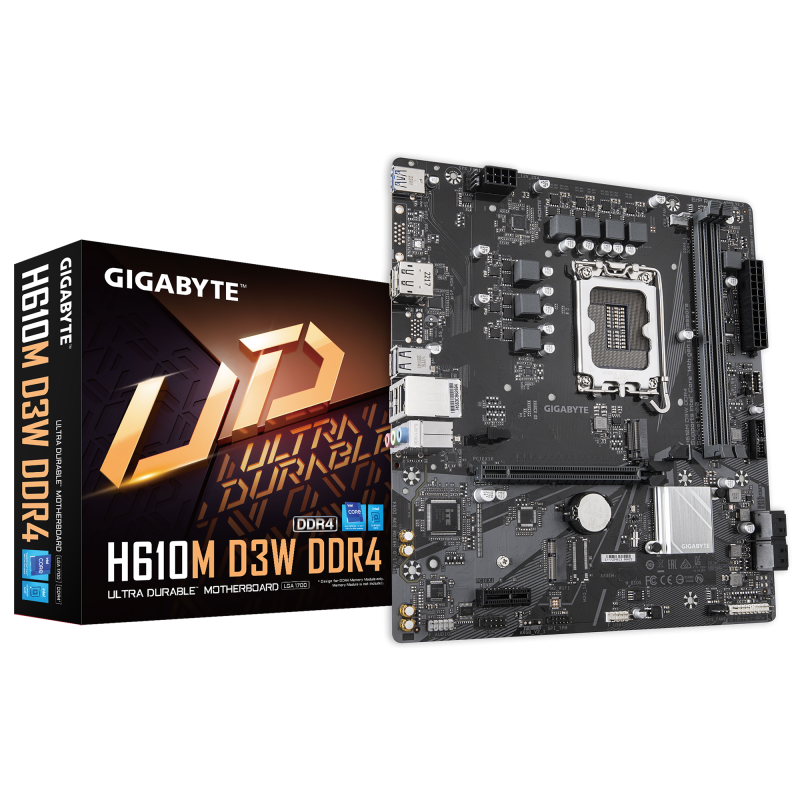

Placa de baza Gigabyte H610M D3W, Socket 1700, DDR4, Micro-ATX

Name: Placa de baza Gigabyte H610M D3W, Socket 1700, DDR4, Micro-ATX
SKU: H610M D3W DDR4
Availability: InStock

Prețul inițial a fost: 583.81 lei.Prețul curent este: 451.04 lei.

5 în stoc

Adaugă la favorite

SKU: H610M D3W DDR4 Categorie: Placi de baza

Descriere

Placa de Baza GIGABYTE H610M D3W DDR4 LGA1700, 2x DDR4, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x1 2x M.2, 4x SATA 6GB/s, mATX

Livrare

Informații suplimentare

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI
Wi-FI	No
USB3	4-8
PCI-Ex1	1
PCI-Ex16	1
Onboard-CPU	No
Component for	PC
Windows operating systems supported	Windows 10, Windows 11
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Processor manufacturer	Intel
Maximum internal memory	64 GB
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
Audio output channels	7.1 channels
PCI Express x1 (Gen 3.x) slots	1
Line-in	Yes
Audio Chip	Realtek ALC897
PCI Express x16 (Gen 4.x) slots	1
Number of memory slots	2
Supported storage drive types	HDD & SSD
Supported memory types	DDR4-SDRAM
LAN controller	Realtek RTL8111H
Number of M.2 (M) slots	1
Screws included	Yes
DisplayPort version	1.2
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Model Chipset	H610
Gaming	Nu
Soclu Procesor	Socket 1700
Tip Memorie:	DDR4
Numar sloturi memorie	2
Memorie maxima	64 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	2
EPS power connector (8-pin)	Yes
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
ECC сompatibility	ECC & Non-ECC
Number of HDDs supported	4
Front panel connector	Yes
TPM connector	Yes
Motherboard chipset family	Intel
PC health monitoring	Fan, Temperature, Voltage, Water cooling
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
BIOS memory size	128 Mbit
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Serial port headers	1
1st M.2 largest key size	2280
USB 2.0 connectors	1
Number of storage drives supported	5
Number of EPS power connectors (8-pin)	1
Supported memory clock speeds	3200 MHz
Motherboard chipset	Intel H610
Number of CPU fan connectors	1
1st M.2 highest PCI Express generation	3.0
Maximum internal memory per slot	32 GB
MB-Socket	1700
MB-Format	micro-ATX
RAM-Slots	2
USB Type-C	N/A
Microphone in	Yes
Batteries included	Yes
Ethernet LAN (RJ-45) ports	1
Product colour	Grey
Height	35 mm
Width	244 mm
Warranty period	3 year(s)
Country of origin	China
Package height	54 mm
Depth	220 mm
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Products per shipping (inner) case	1 pc(s)
Package width	265 mm
Package depth	265 mm
Package weight	800 g
Weight	770 g
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Format	Micro-ATX
Producator	GIGABYTE
Garantie	36
