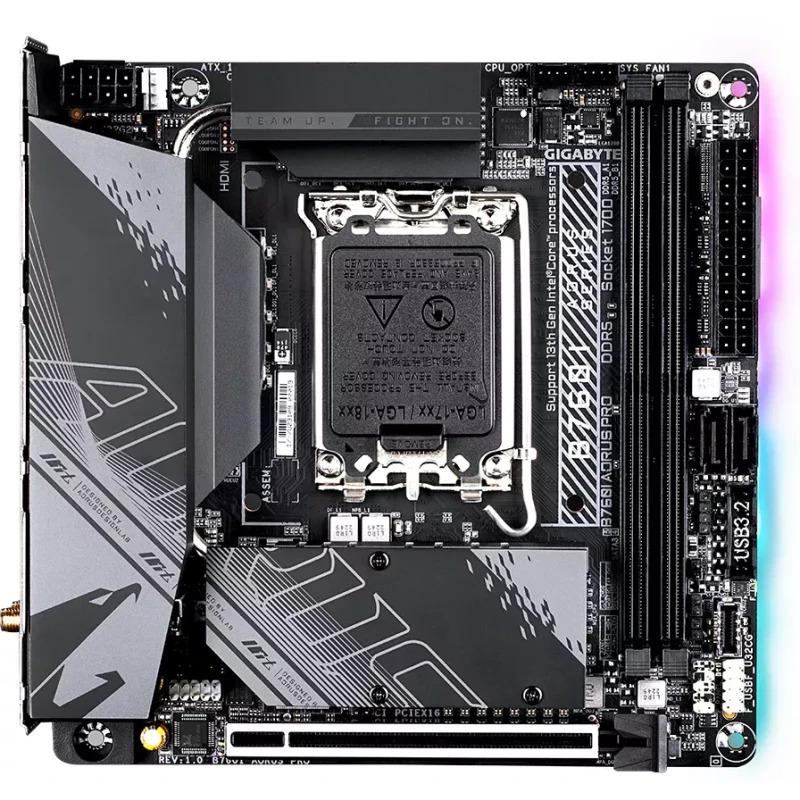

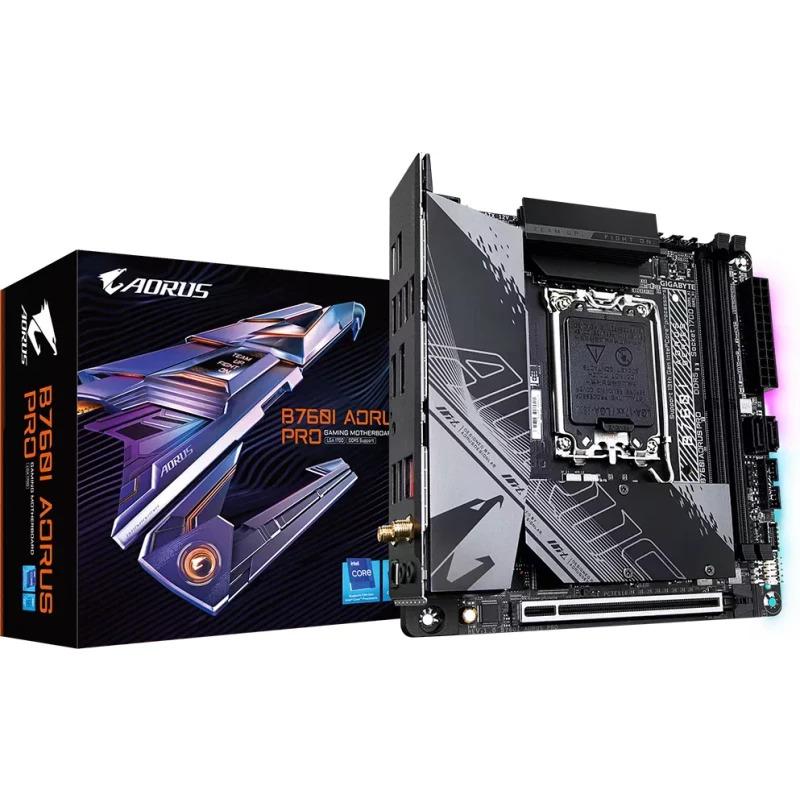

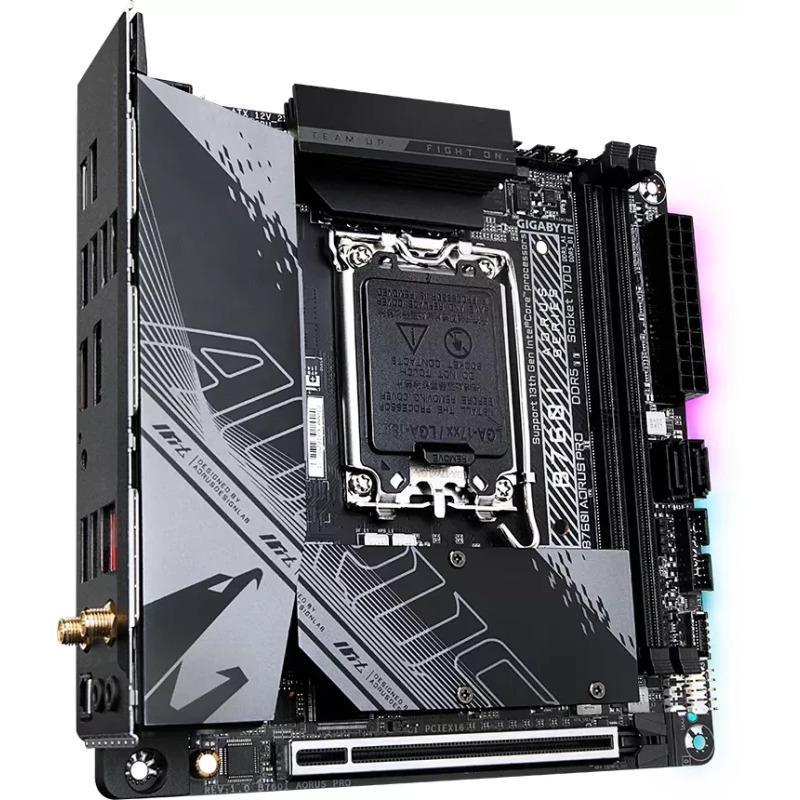

Name: Placa de baza Gigabyte B760I AORUS PRO, Socket 1700, DDR5,
SKU: B760I AORUS PRO
Availability: OutOfStock

Placa de baza Gigabyte B760I AORUS PRO, Socket 1700, DDR5,

1,449.76 lei

Stoc epuizat

SKU: B760I AORUS PRO Categorie: Placi de baza

Descriere

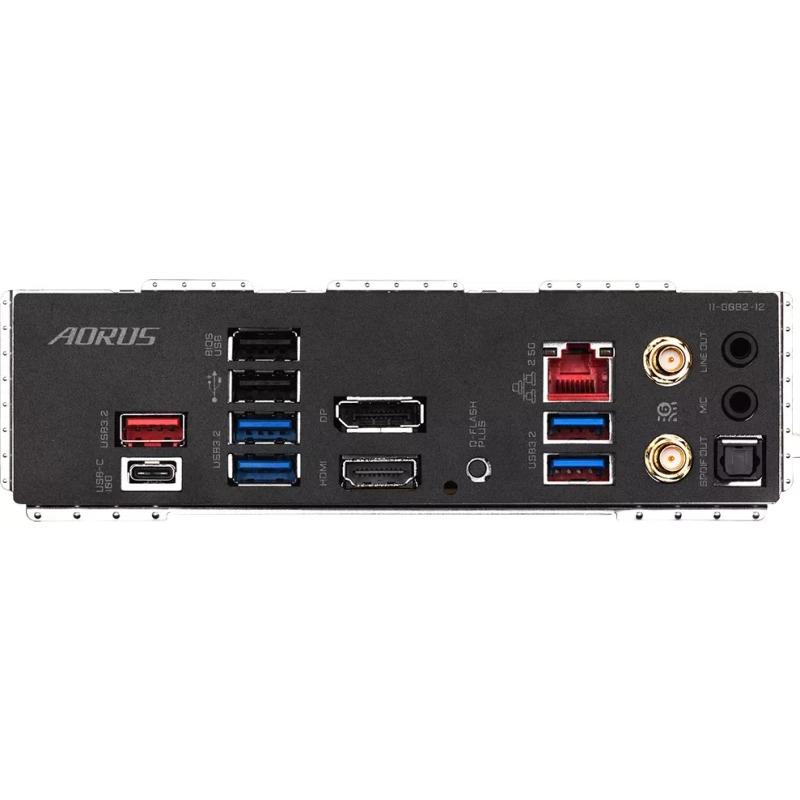

Placa de Baza GIGABYTE B760I AORUS PRO LGA1700, 2x DDR5, 1x DP 1x HDMI, 1x PCIE x16, 2x M.2, 2x SATA 6GB/s, Mini-ITX

Livrare

Informații suplimentare

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	Yes
Onboard-CPU	No
RAID support	Yes
Component for	PC
RAID levels	0, 1
USB connector type	USB Type-A, USB Type-C
Memory channels	Dual-channel
Processor manufacturer	Intel
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
HDMI version	2.0
Maximum internal memory	96 GB
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Audio output channels	7.1 channels
Number of SATA III connectors	2
PCI Express x16 slots	1
Number of memory slots	2
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	2
Total number of SATA connectors	2
S/PDIF out port	Yes
HDCP	Yes
DisplayPort version	1.2
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	B760
Gaming	Nu
Format	Mini-ITX
Soclu Procesor	Socket 1700
Tip Memorie:	DDR5
Numar sloturi memorie	2
Memorie maxima	96 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
ECC сompatibility	ECC & Non-ECC
Front panel connector	Yes
RGB LED pin header	Yes
WiFi-AP antenna jack	2
Ethernet interface type	2.5 Gigabit Ethernet
Motherboard chipset family	Intel
PC health monitoring	Fan, Temperature, Voltage, Water cooling
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
Maximum resolution	4096 x 2304 pixels
12V power connector	Yes
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Motherboard chipset	Intel B760 Express
Bundled software	Norton Internet Security
Chassis intrusion connector	Yes
USB 2.0 connectors	1
Audio connector	Yes
Number of storage drives supported	4
Motherboard form factor	mini ITX
Maximum internal memory supported by processor	96 GB
Number of HDDs supported	2
Supported memory clock speeds	4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,8000 MHz
Microphone in	Yes
Bluetooth	Yes
Product colour	Black
Batteries included	Yes
Bluetooth version	5.3
Ethernet LAN (RJ-45) ports	1
Height	35 mm
Cables included	SATA
Warranty period	3 year(s)
Country of origin	China
Width	170 mm
Package height	95 mm
Depth	170 mm
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Products per shipping (inner) case	1 pc(s)
Headphone outputs	2
Package width	235 mm
Package depth	227 mm
Package weight	14.9 kg
Producator	GIGABYTE
Garantie	36
