Name: Placa de bază Gigabyte B760 AORUS ELITE AX DDR4 LGA1700
SKU: B760 A ELITE AX D4
Availability: OutOfStock

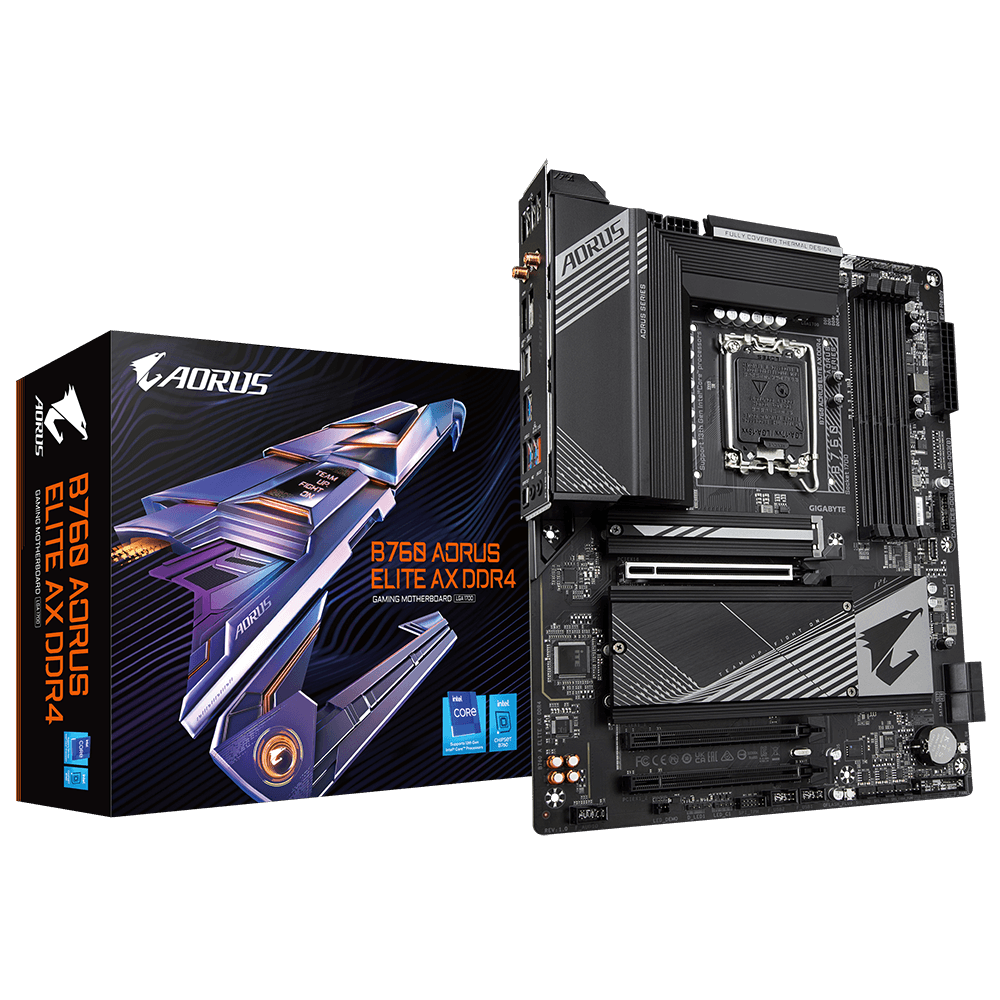

Placa de bază Gigabyte B760 AORUS ELITE AX DDR4 LGA1700

1,526.86 lei

Stoc epuizat

SKU: B760 A ELITE AX D4 Categorie: Placi de baza

Descriere

Placa de baza Gigabyte B760 AORUS ELITE DDR4 LGA1700, 4x DDR4, 1x DisplayPort, 1x HDMI, 3x PCIe x16, 2x M.2, 4x SATA 6Gbps, WIFI 6E, LAN 2.5Gbps, ATX

Livrare

Informații suplimentare

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	Yes
Onboard-CPU	No
RAID support	Yes
Component for	PC
Memory channels	Dual-channel
On-board graphics card	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Ethernet LAN	Yes
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
Maximum internal memory	128 GB
HDMI version	2.0
Graphics card family	Intel
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Audio output channels	7.1 channels
PCI Express x16 (Gen 4.x) slots	1
Supported storage drive types	HDD & SSD
Supported memory types	DDR4-SDRAM
HDCP	Yes
DisplayPort version	1.2
Digital audio optical out	1
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	B760
Gaming	Nu
Format	ATX
Soclu Procesor	Socket 1700
Tip Memorie:	DDR4
Numar sloturi memorie	4
Memorie maxima	128 GB
Tip slot interfata grafica	PCIe 3.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Number of HDDs supported	4
Number of storage drives supported	7
RAID levels	0, 1, 5, 10
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
Number of chassis fan connectors	4
TPM connector	Yes
RGB LED pin header	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Motherboard form factor	ATX
Motherboard chipset family	Intel
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Number of M.2 (M) slots	3
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
Maximum resolution	4096 x 2304 pixels
Total number of SATA connectors	4
12V power connector	Yes
ECC сompatibility	Non-ECC
Motherboard chipset	Intel B760 Express
USB 2.0 connectors	4
Maximum internal memory supported by processor	128 GB
Compatible processor series	Intel® Celeron®, Intel® Pentium® Gold
PCI Express x16 (Gen 3.x) slots	2
Graphics card	HD Graphics
Supported memory clock speeds	5333 MHz
BIOS type	EFI AMI
Power fan connector	Yes
On-board graphics card model	Intel® HD Graphics
Bluetooth	Yes
Product colour	Black
Batteries included	Yes
Bluetooth version	5.3
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Ethernet LAN (RJ-45) ports	1
Height	35 mm
Warranty period	3 year(s)
Country of origin	China
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package width	335 mm
Package depth	270 mm
Package height	80 mm
Products per shipping (inner) case	1 pc(s)
Package weight	2.17 kg
Width	30.5 mm
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Depth	24.4 mm
Producator	GIGABYTE
Garantie	36
