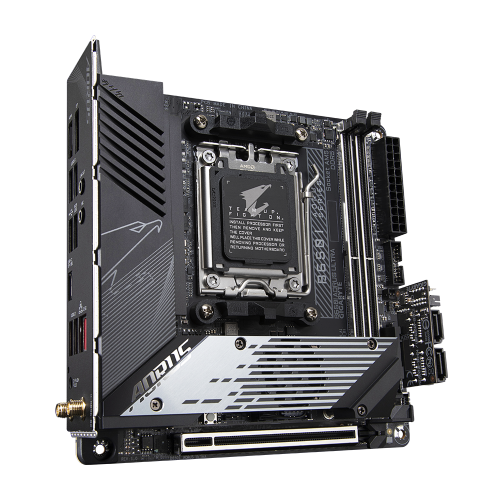

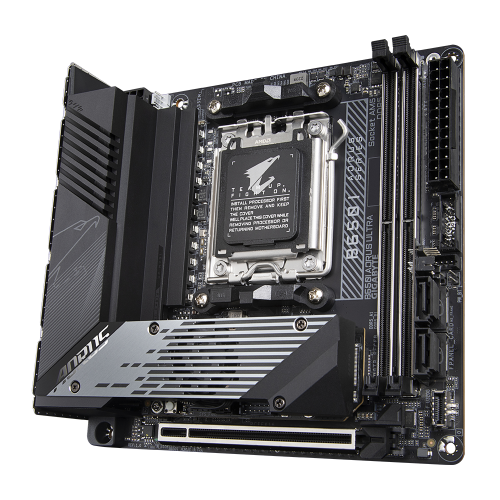

Name: Placa de bază Gigabyte B650I AORUS ULTRA AM5
SKU: B650I AORUS ULTRA
Availability: OutOfStock

Descriere

Placa de baza GIGABYTE B650I AORUS ULTRA AM5, 2x DDR5, 1x PCIE x16, 3x M.2, 1x DP 1x USB Type-C 1x HDMI, 4x SATA 6GB/s, Mini-ITX

Livrare

Informații suplimentare

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	Yes
Onboard-CPU	No
RAID support	Yes
Component for	PC
DisplayPort version	1.4
USB connector type	USB Type-A, USB Type-C
Memory channels	Dual-channel
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Maximum internal memory	128 GB
Processor manufacturer	AMD
USB 2.0 ports quantity	2
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Audio output channels	7.1 channels
PCI Express x16 (Gen 4.x) slots	1
Number of memory slots	2
Supported storage drive types	HDD & SSD
HDCP	Yes
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
Maximum resolution	7680 x 4320 pixels
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Model Chipset	B650
Gaming	Nu
Format	Mini-ITX
Soclu Procesor	Socket AM5
Tip Memorie:	DDR5
Numar sloturi memorie	2
Memorie maxima	96 GB
Tip slot interfata grafica	PCIe 5.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	3
RJ-45 LAN	1
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
Number of HDDs supported	4
Number of storage drives supported	7
RAID levels	0, 1, 5, 10
Front panel connector	Yes
RGB LED pin header	Yes
WiFi-AP antenna jack	2
Ethernet interface type	2.5 Gigabit Ethernet
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Number of M.2 (M) slots	3
1st M.2 highest PCI Express generation	5.0
2nd M.2 highest PCI Express generation	4.0
3rd M.2 highest PCI Express generation	4.0
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Antenna included	Yes
Maximum number of SMP processors	1
Discrete graphics support	Yes
USB 3.2 Gen 2x2 connectors	1
12V power connector	Yes
ECC сompatibility	Non-ECC
Audio Chip	Realtek ALC4080
Processor socket	Socket AM5
1st M.2 largest key size	2280
2nd M.2 largest key size	2280
3rd M.2 largest key size	2280
USB 2.0 connectors	1
Motherboard chipset	AMD B650
Maximum internal memory supported by processor	128 GB
Compatible processor series	AMD Ryzen™ 7
Motherboard form factor	mini ITX
Number of EATX power connectors	1
Microphone in	Yes
Headphone outputs	1
Bluetooth	Yes
Product colour	Black
Batteries included	Yes
Bluetooth version	5.2
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet LAN (RJ-45) ports	1
Height	35 mm
Cables included	SATA
Warranty period	3 year(s)
Country of origin	China
Width	170 mm
Package height	95 mm
Depth	170 mm
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Products per shipping (inner) case	1 pc(s)
Package width	235 mm
Package depth	227 mm
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Package weight	16.2 kg
Supported memory clock speeds	4400,4800,5200,5600,6000,6200,6400,6800,7000,7200 MHz
Producator	GIGABYTE
Garantie	36
