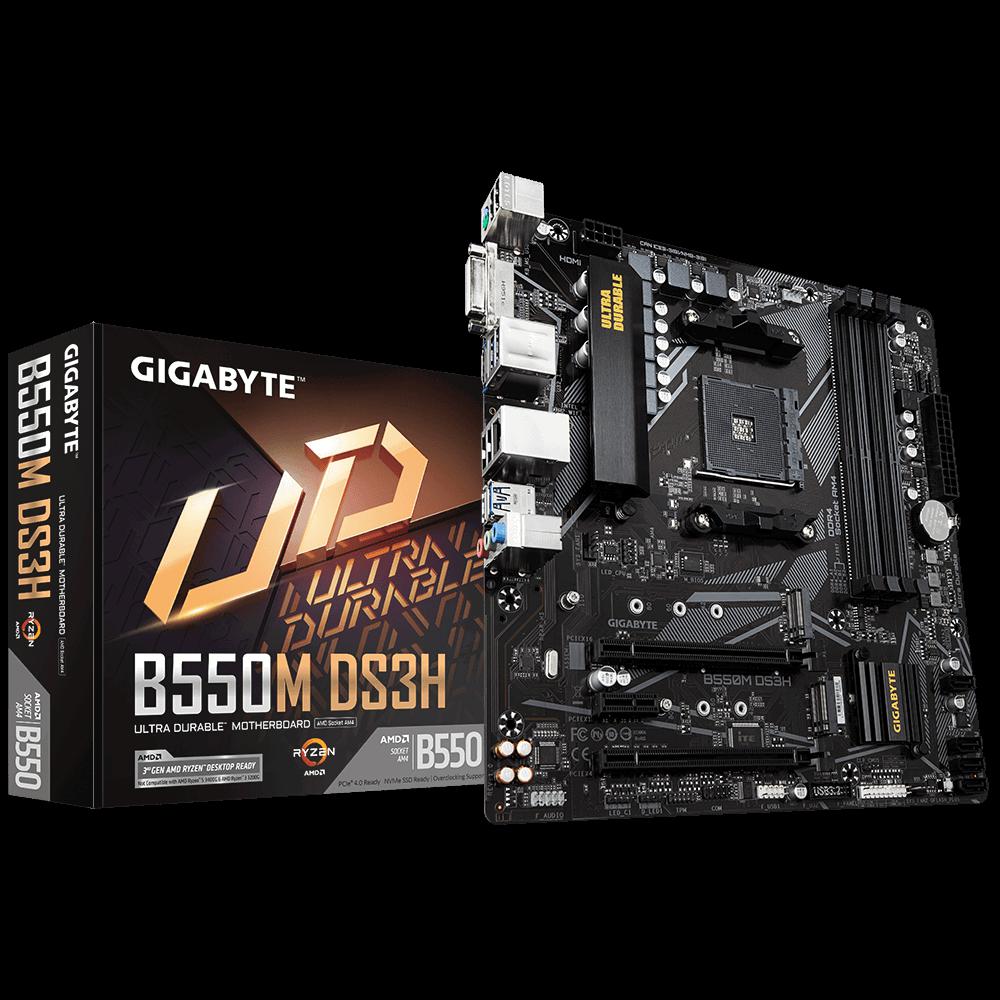

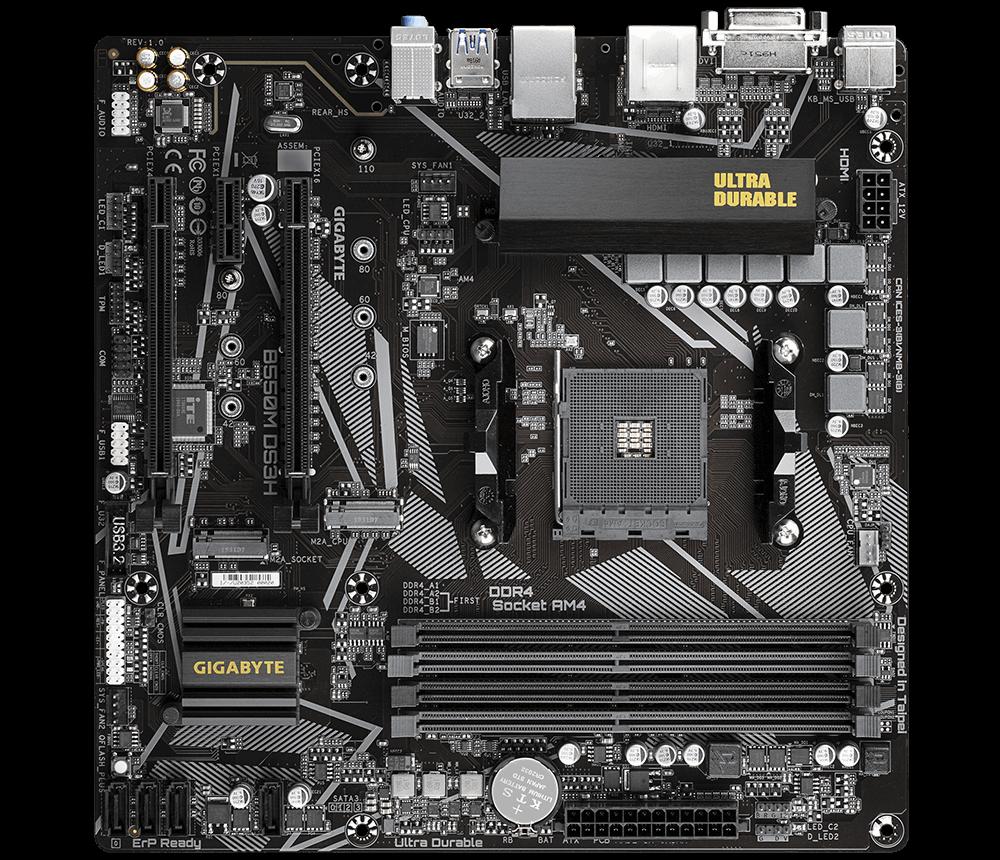

Placa de baza Gigabyte B550M DS3H, Socket AM4, DDR4, Micro-ATX

Name: Placa de baza Gigabyte B550M DS3H, Socket AM4, DDR4, Micro-ATX
SKU: B550M DS3H
Availability: OutOfStock

668.82 lei

Stoc epuizat

Adaugă la favorite

SKU: B550M DS3H Categorie: Placi de baza

Descriere

Condensatoare audio high-end. Placile de baza GIGABYTE folosesc condensatoare audio de inalta calitate. Aceste condensatoare de inalta calitate ajuta la furnizarea audio de inalta rezolutie si fidelitate inalta pentru a oferi cele mai realiste efecte sonore pentru gameri.
Audio noise guard. Placile de baza GIGABYTE dispun de un dispozitiv de protectie a zgomotului audio care separa in mod esential componentele audio analogice sensibile ale placii de potentialele poluari sonore la nivelul PCB.

Livrare

Informații suplimentare

PCI	0
Serial-or-Paralel	No/No
Video-Connection	DVI/HDMI
Wi-FI	No
CPU încorporat	No
PCI-Ex1	1
RAID support	Yes
Component for	PC
USB connector type	USB Type-A
Ethernet interface type	Gigabit Ethernet
Memory channels	Dual-channel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Maximum internal memory	128 GB
Processor manufacturer	AMD
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
PCI Express x16 (Gen 3.x) slots	1
Audio output channels	7.1 channels
PCI Express x1 (Gen 3.x) slots	1
Line-in	Yes
Audio Chip	Realtek ALC897
PCI Express x16 (Gen 4.x) slots	1
Supported storage drive types	HDD & SSD
Supported memory types	DDR4-SDRAM
LAN controller	Realtek RTL8111H
Number of M.2 (M) slots	2
Processor socket	Socket AM4
Cooling type	Passive
Motherboard chipset	AMD B550
HDCP	Yes
Screws included	Yes
DVI-D ports quantity	1
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Drivers included	Yes
Model Chipset	B550
Gaming	Da
Soclu Procesor	Socket AM4
Tip Memorie:	DDR4
Numar sloturi memorie	4
Memorie maxima	128 GB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of Parallel ATA connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of chassis fan connectors	2
EPS power connector (8-pin)	Yes
PS/2 ports quantity	1
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
ECC сompatibility	ECC & Non-ECC
Number of HDDs supported	4
Front panel connector	Yes
TPM connector	Yes
Number of water pump connectors	2
RGB LED pin header	Yes
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Lithium weight per battery	0.07 g
Maximum number of SMP processors	1
Discrete graphics support	Yes
Total number of SATA connectors	4
12V power connector	Yes
Number of storage drives supported	6
BIOS memory size	128 Mbit
Serial port headers	1
Supported storage drive interfaces	SATA III
RAID levels	0, 1, 10
eSATA ports quantity	0
Firewire (IEEE 1394) ports	0
2nd M.2 largest key size	2280
USB 2.0 connectors	1
PCI Express x16 slots	2
PC health monitoring	Fan, Temperature, Voltage
Number of EPS power connectors (8-pin)	1
Supported processor sockets	Socket AM4
Maximum internal memory supported by processor	128 GB
Number of CPU fan connectors	1
1st M.2 highest PCI Express generation	4.0
Power fan connector	Yes
1st M.2 largest key size	22110
Number of RGB LED pin headers	5
Maximum internal memory per slot	32 GB
RAM-Slots	4
MB-Format	micro-ATX
MB-Socket	AM4
USB3	2
Compatible processor series	AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
2nd M.2 highest PCI Express generation	3.0
PCI-Ex16	2
Supported memory clock speeds	4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
Microphone in	Yes
Headphone outputs	1
Batteries included	Yes
Ethernet LAN (RJ-45) ports	1
Height	35 mm
Harmonized System (HS) code	84733020
Cables included	SATA
Width	244 mm
Warranty period	3 year(s)
Country of origin	China
Package height	54 mm
Power source type	ATX
Battery weight	3 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Product colour	Brown
Products per shipping (inner) case	1 pc(s)
Package width	265 mm
Package depth	265 mm
Package weight	927 g
Weight	630 g
Bundled software	Norton® Internet Security (OEM version) LAN bandwidth management software
Depth	24.4 mm
Format	Micro-ATX
Producator	GIGABYTE
Garantie	36
