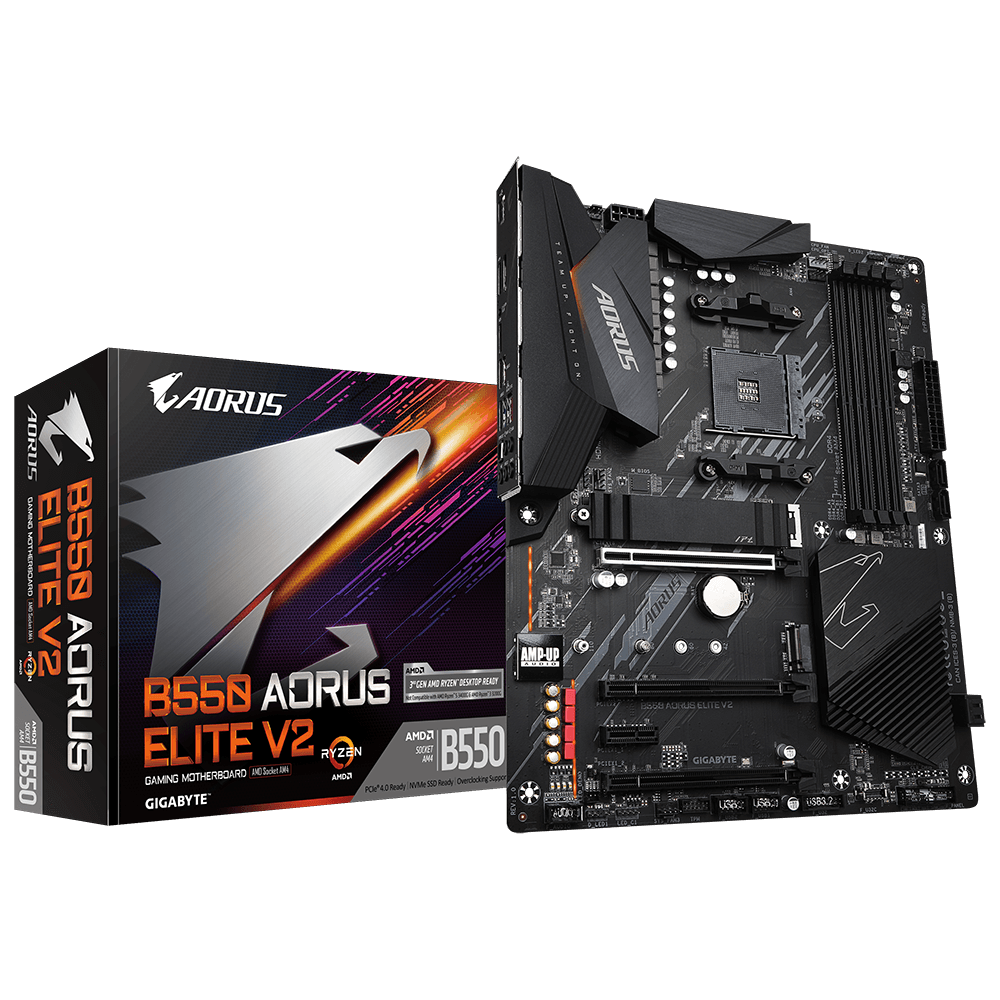

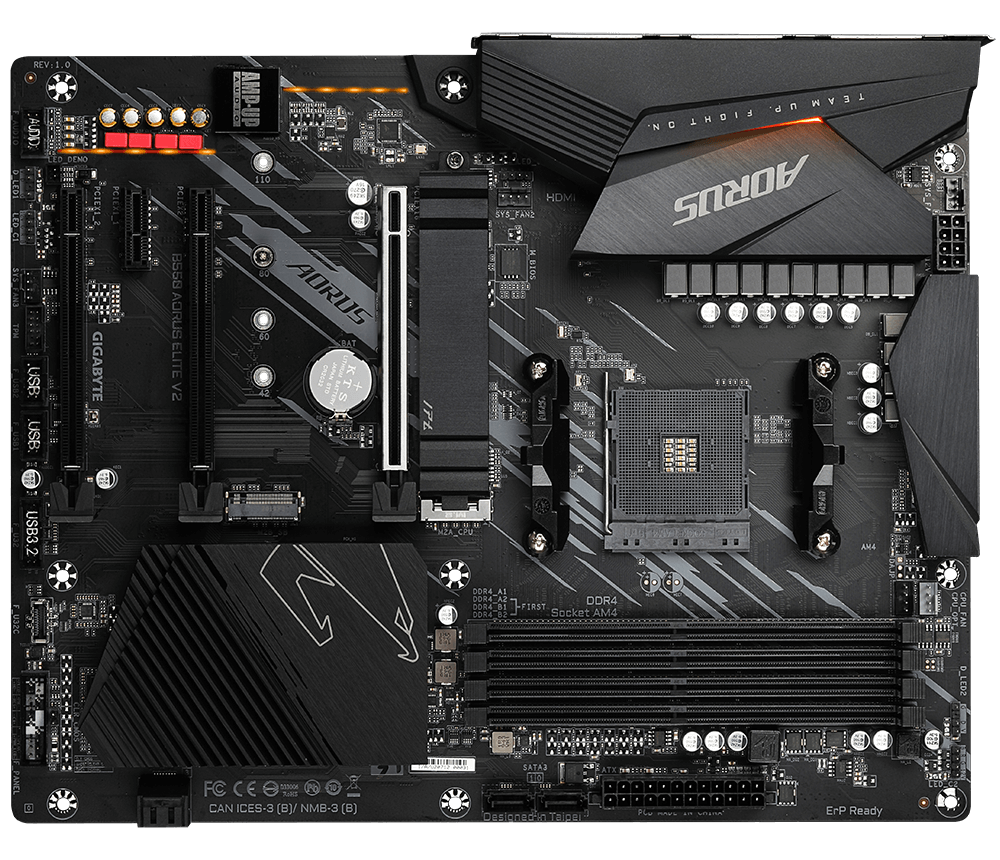

Placa de baza Gigabyte B550 AORUS ELITE V2, Socket AM4,
971.90 lei
Stoc epuizat
Report Abuse
In noaptea intunecata, fara stele, soimul naste frica in inima prazii sale. Chiar si cu o vizibilitate minima, soimul isi gaseste victima si anticipeaza cu rabdare momentul perfect pentru a se opri pentru atac. Cu privirea ascutita ca un laser domina intunericul noptii in acelasi mod in care AORUS Core Lighting ilumineaza vastul ecosistem AORUS.
| PCI |
0 |
|---|---|
| Serial-or-Paralel |
No/No |
| Video-Connection |
HDMI/DP |
| Wi-FI |
No |
| CPU încorporat |
No |
| RAID support |
Yes |
| Component for |
PC |
| DisplayPort version |
1.4 |
| Memory channels |
Dual-channel |
| Ethernet LAN |
Yes |
| HDMI version |
2.1 |
| Maximum internal memory |
128 GB |
| Processor manufacturer |
AMD |
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| Audio output channels |
7.1 channels |
| PCI Express x1 (Gen 3.x) slots |
1 |
| Line-in |
Yes |
| Audio Chip |
Realtek ALC897 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| Supported storage drive types |
HDD & SSD |
| Supported memory types |
DDR4-SDRAM |
| Number of M.2 (M) slots |
2 |
| Processor socket |
Socket AM4 |
| Graphics card family |
AMD |
| Cooling type |
Passive |
| S/PDIF out port |
Yes |
| Motherboard chipset |
AMD B550 |
| HDCP |
Yes |
| Screws included |
Yes |
| DisplayPorts quantity |
1 |
| VGA (D-Sub) ports quantity |
0 |
| HDMI ports quantity |
0 |
| Parallel processing technology support |
Not supported |
| DVI-D ports quantity |
0 |
| DirectX version |
12.0 |
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| Maximum resolution |
5120 x 2880 pixels |
| Model Chipset |
B550 |
| Gaming |
Nu |
| Format |
ATX |
| Soclu Procesor |
Socket AM4 |
| Tip Memorie: |
DDR4 |
| Numar sloturi memorie |
4 |
| Memorie maxima |
128 GB |
| Tip slot interfata grafica |
PCIe 4.0 x16 |
| Chipset audio integrat |
Realtek |
| Canale audio |
7.1 |
| Wireless |
Nu |
| Bluetooth |
Nu |
| USB Type-C |
Da |
| HDMI |
Nu |
| Thunderbolt |
Nu |
| Sloturi M.2 |
2 |
| RJ-45 LAN |
1 |
| Number of memory slots |
4 |
| Memory slots type |
DIMM |
| Unbuffered memory |
Yes |
| Supported storage drive interfaces |
M.2, SATA III |
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| Number of SATA III connectors |
4 |
| Number of SATA II connectors |
0 |
| Number of Parallel ATA connectors |
0 |
| Front panel audio connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| Motherboard chipset family |
AMD |
| BIOS type |
UEFI AMI |
| Clear CMOS jumper |
Yes |
| ECC сompatibility |
ECC & Non-ECC |
| Number of HDDs supported |
4 |
| Front panel connector |
Yes |
| TPM connector |
Yes |
| RGB LED pin header |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| LAN controller |
Realtek RTL8125 |
| Motherboard form factor |
ATX |
| PC health monitoring |
Fan, Temperature, Voltage, Water cooling |
| 2nd M.2 largest key size |
22110 |
| ACPI version |
5.0 |
| Desktop Management Interface (DMI) version |
2.7 |
| System Management BIOS (SMBIOS) version |
2.7 |
| Lithium weight per battery |
0.07 g |
| Maximum number of SMP processors |
1 |
| Total number of SATA connectors |
4 |
| 12V power connector |
Yes |
| Number of storage drives supported |
6 |
| BIOS memory size |
128 Mbit |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| PS/2 ports quantity |
0 |
| RAID levels |
0, 1, 10 |
| eSATA ports quantity |
0 |
| Firewire (IEEE 1394) ports |
0 |
| Number of chassis fan connectors |
3 |
| PCI Express x16 slots |
2 |
| Number of EPS power connectors (8-pin) |
1 |
| Supported processor sockets |
Socket AM4 |
| Maximum internal memory supported by processor |
128 GB |
| PCI Express x16 (Gen 3.x) slots |
2 |
| Supported memory module capacities |
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| PCI Express x1 (Gen 2.x) slots |
1 |
| Number of CPU fan connectors |
1 |
| 1st M.2 highest PCI Express generation |
4.0 |
| 1st M.2 largest key size |
22110 |
| Number of RGB LED pin headers |
5 |
| Maximum internal memory per slot |
32 GB |
| Compatible processor series |
AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series |
| 2nd M.2 highest PCI Express generation |
3.0 |
| Supported memory clock speeds |
4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| Product colour |
Black |
| Batteries included |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Height |
35 mm |
| Harmonized System (HS) code |
84733020 |
| Warranty period |
3 year(s) |
| Country of origin |
China |
| Power source type |
ATX |
| Battery weight |
3 g |
| Number of battery cells |
1 |
| Battery technology |
Lithium-Manganese Dioxide (LiMnO2) |
| Battery type |
CR2032 |
| Package width |
335 mm |
| Package depth |
270 mm |
| Package height |
80 mm |
| Products per shipping (inner) case |
1 pc(s) |
| Package weight |
1.8 kg |
| Weight |
11.2 kg |
| Width |
30.5 mm |
| Number of water pump connectors |
4 |
| Bundled software |
Norton® Internet Security (OEM version) LAN bandwidth management software |
| Depth |
24.4 mm |
| Producator |
GIGABYTE |
| Garantie |
