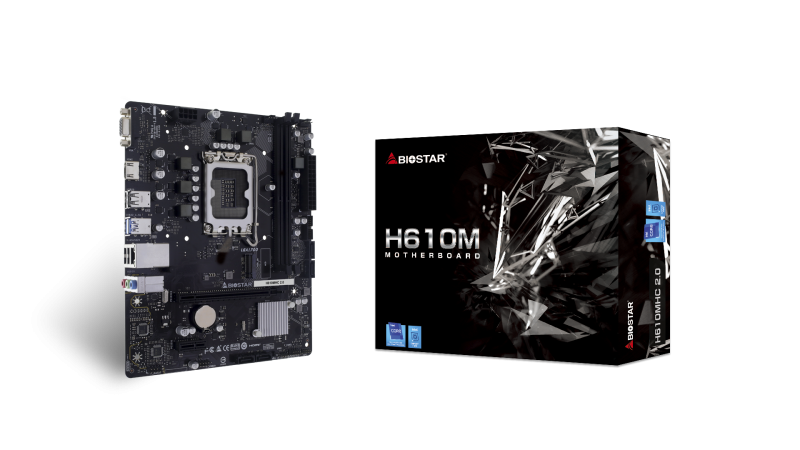

Placa de baza Biostar H610MHC 2.0, Socket 1700, DDR4, Micro-ATX
442.00 lei
Stoc epuizat
Report Abuse
Biostar H610MHC 2.0. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel…. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
| Wi-FI |
No |
|---|---|
| Component for |
PC |
| Ethernet interface type |
Gigabit Ethernet |
| Memory channels |
Dual-channel |
| Processor manufacturer |
Intel |
| Maximum internal memory |
64 GB |
| On-board graphics card |
Yes |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
1 |
| HDMI version |
1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 2.0 ports quantity |
4 |
| Audio output channels |
7.1 channels |
| PCI Express x1 (Gen 3.x) slots |
1 |
| Audio Chip |
Realtek ALC897 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| Number of memory slots |
2 |
| Supported storage drive types |
HDD & SSD |
| Supported memory types |
DDR4-SDRAM |
| LAN controller |
Realtek RTL8111H |
| Number of M.2 (M) slots |
1 |
| VGA (D-Sub) ports quantity |
1 |
| HDCP |
Yes |
| DVI-D ports quantity |
0 |
| DirectX version |
12.0 |
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| Drivers included |
Yes |
| Model Chipset |
H610 |
| Gaming |
Nu |
| Soclu Procesor |
Socket 1700 |
| Tip Memorie: |
DDR4 |
| Numar sloturi memorie |
2 |
| Memorie maxima |
64 GB |
| Tip slot interfata grafica |
PCIe 4.0 x16 |
| Chipset audio integrat |
Realtek |
| Canale audio |
7.1 |
| Wireless |
Nu |
| Bluetooth |
Nu |
| HDMI |
Da |
| Thunderbolt |
Nu |
| Sloturi M.2 |
1 |
| RJ-45 LAN |
1 |
| Memory slots type |
DIMM |
| Supported storage drive interfaces |
M.2, SATA III |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| Number of SATA III connectors |
4 |
| Front panel audio connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| Motherboard form factor |
micro ATX |
| BIOS type |
UEFI AMI |
| Front panel connector |
Yes |
| Motherboard chipset family |
Intel |
| Processor socket |
LGA 1700 |
| ECC сompatibility |
Non-ECC |
| USB 2.0 connectors |
1 |
| Number of chassis fan connectors |
1 |
| PC health monitoring |
Fan, Temperature, Voltage |
| Number of EPS power connectors (8-pin) |
1 |
| Motherboard chipset |
Intel H610 |
| Supported memory clock speeds |
1866,2133,2400,2666,2933,3200 MHz |
| USB Type-C |
N/A |
| Microphone in |
Yes |
| Product colour |
Black |
| Ethernet LAN (RJ-45) ports |
1 |
| Cables included |
SATA |
| Width |
185 mm |
| Depth |
226 mm |
| Format |
Micro-ATX |
| Producator |
BIOSTAR |
