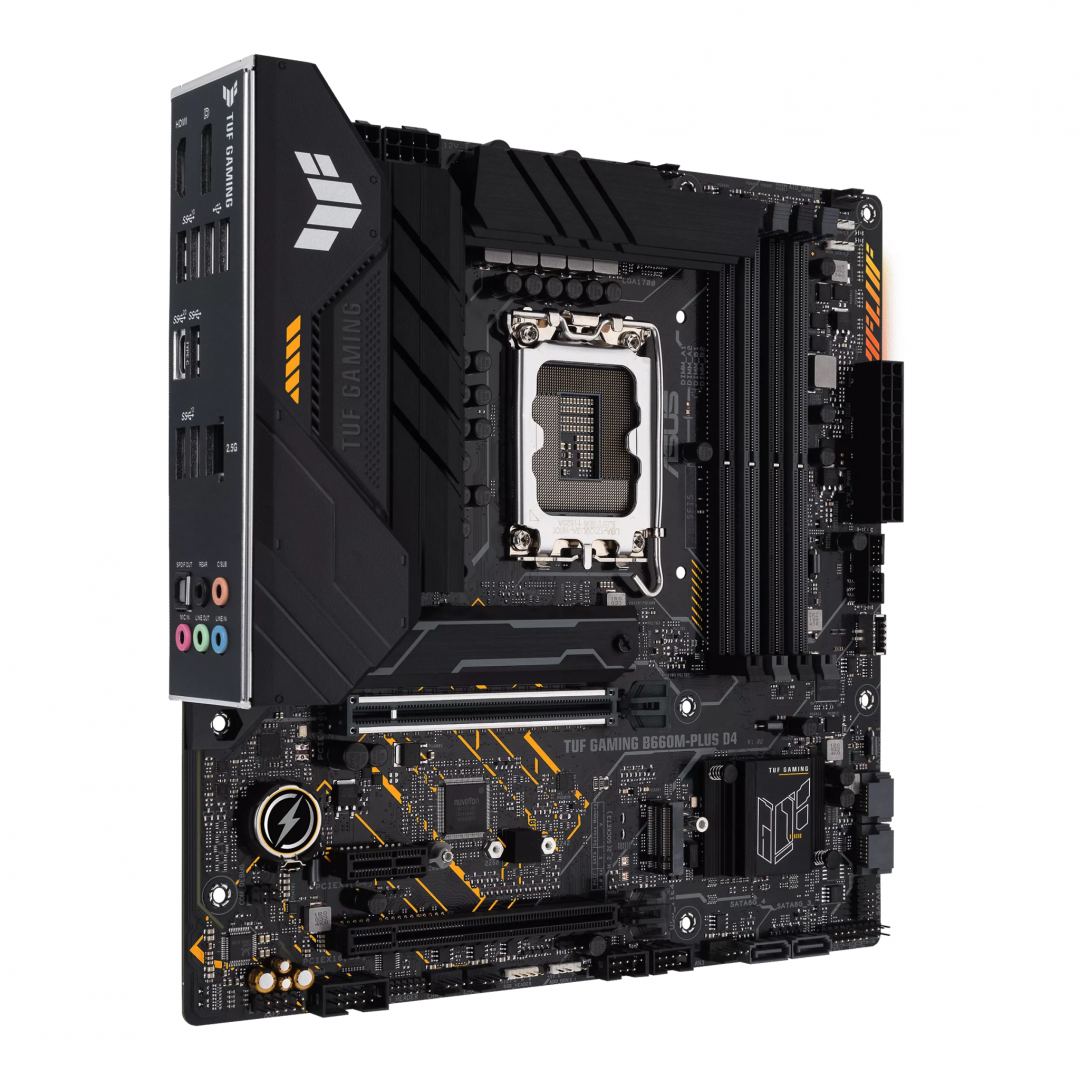

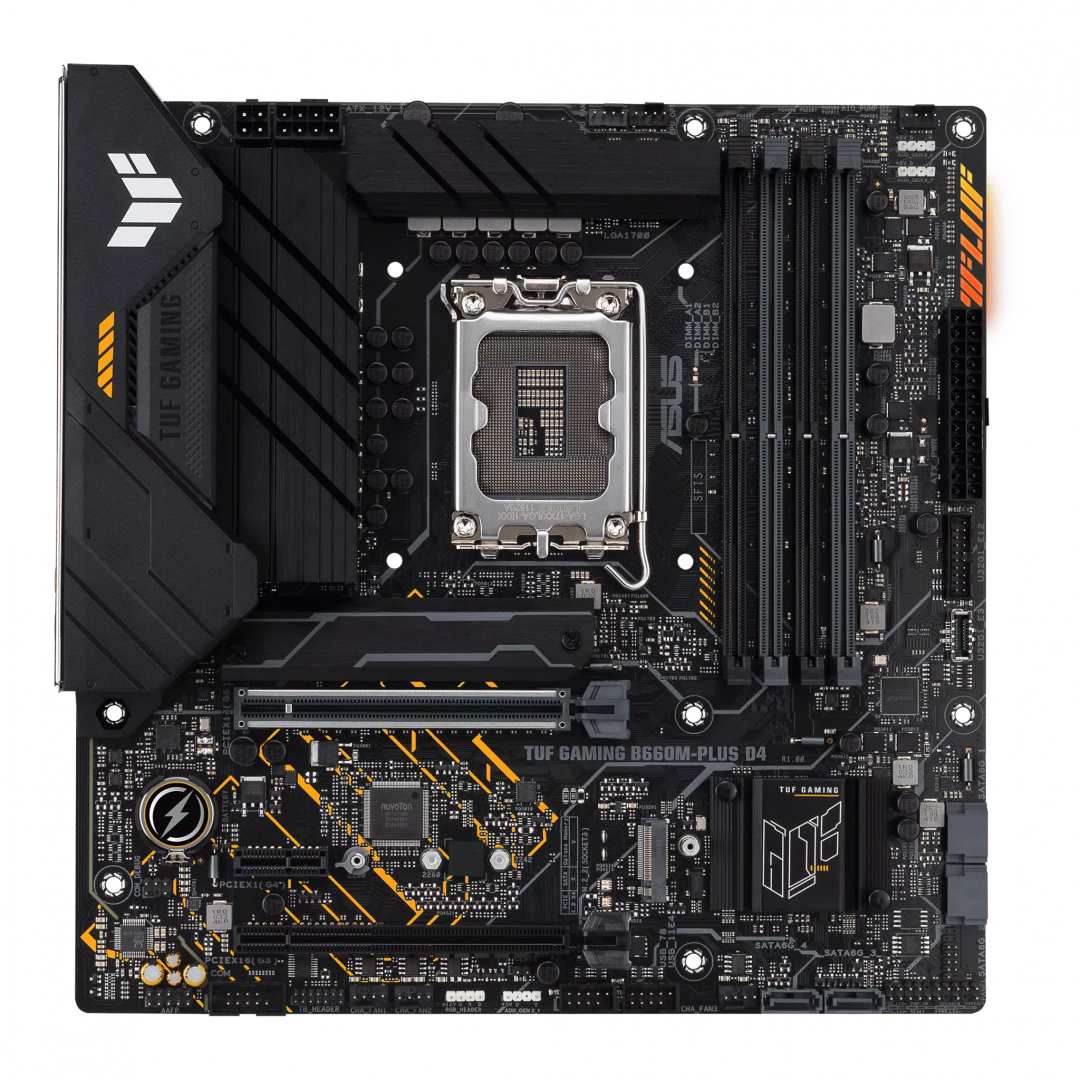

Placa de bază ASUS TUF GAMING B660M-PLUS D4 LGA1700

Name: Placa de bază ASUS TUF GAMING B660M-PLUS D4 LGA1700
SKU: TUF B660M-PLUS D4
Availability: OutOfStock

1,290.27 lei

Stoc epuizat

Adaugă la favorite

SKU: TUF B660M-PLUS D4 Categorie: Placi de baza

Descriere

General
Recomandat pentru Gaming	Da
Format	mATX
Soclu procesor	1700
Producator chipset	Intel
Model chipset	B660
Procesoare suportate	Intel 12th Generation Core/Pentium Gold/Celeron
Interfata grafica	PCI Express x16 5.0
Placa audio integrata	7.1 Audio
Chipset audio	Realtek
Placa retea integrata	10/100/1000/2500 Mbps
Chipset retea	Realtek
Numar SATA-III	4
M.2	2
Memorii Suportate
Tip memorie	DDR4
Memorie maxima	128 GB
Numar sloturi	4
Tehnologie	Dual channel
Frecvente suportate	5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz
Sloturi
PCI Express 4.0 x16	1 (x16)
PCI Express x1	1

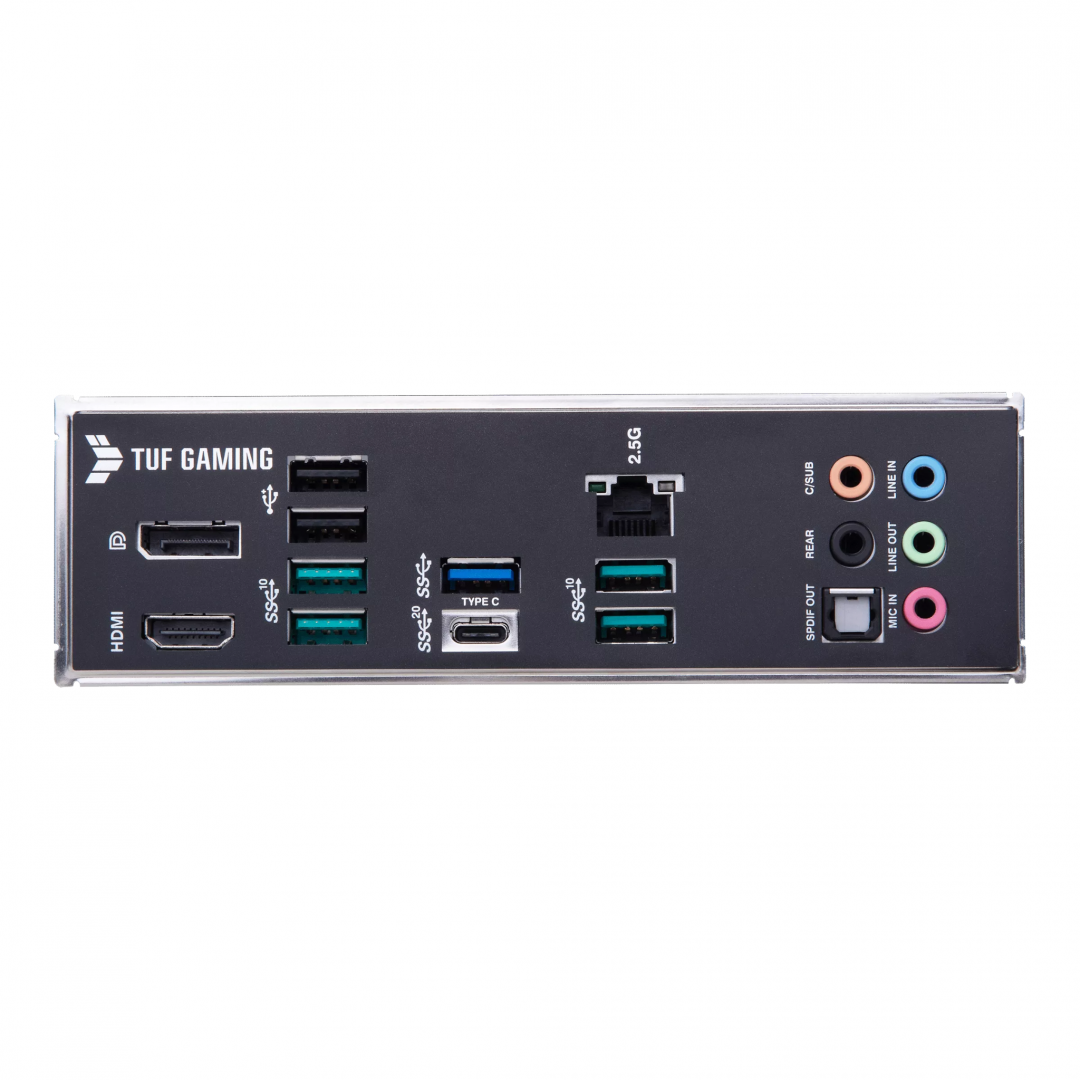

Conectori Back Panel
Optical S/PDIF out	1
HDMI	1
Display Port	1
USB 2.0	2
USB 3.2 Gen1 tip A	1
USB 3.2 Gen2 tip A	4
USB 3.2 Gen2 tip C	1
RJ-45 LAN	1
Suport audio	7.1
BIOS Flashback	Da

Livrare

Informații suplimentare

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	No
USB3	4-8
CPU încorporat	No
PCI-Ex1	1
RAID support	Yes
Component for	PC
DisplayPort version	1.4
Memory channels	Dual-channel
Processor manufacturer	Intel
Ethernet LAN	Yes
HDMI ports quantity	1
HDMI version	2.1
Maximum internal memory	128 GB
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
PCI Express x16 (Gen 3.x) slots	1
Motherboard chipset	Intel B660
Audio output channels	7.1 channels
PCI Express x16 (Gen 5.x) slots	1
Supported storage drive types	HDD & SSD
Supported memory types	DDR4-SDRAM
Number of M.2 (M) slots	2
PCI Express x1 slots	1
Digital audio optical out	1
DisplayPorts quantity	1
VGA (D-Sub) ports quantity	0
DVI-D ports quantity	0
Model Chipset	B660
Gaming	Da
Format	Micro-ATX (mATX)
Soclu Procesor	Socket 1700
Tip Memorie:	DDR4
Numar sloturi memorie	4
Memorie maxima	128 GB
Tip slot interfata grafica	PCIe 5.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Nu
Bluetooth	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
Front panel connector	Yes
RGB LED pin header	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Motherboard chipset family	Intel
Processor socket	LGA 1700
Supported processor sockets	LGA 1700
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
12V power connector	Yes
ECC сompatibility	Non-ECC
Number of storage drives supported	6
BIOS memory size	128 Mbit
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Serial port headers	1
Thunderbolt headers	1
Chassis intrusion connector	Yes
Number of chassis fan connectors	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
MB-Socket	1700
RAM-Slots	4
MB-Format	micro-ATX
PCI-Ex16	2
Ethernet LAN (RJ-45) ports	1
Harmonized System (HS) code	84733020
Cables included	SATA
Width	244 mm
Power source type	ATX
Headphone outputs	5
Height	6.8 mm
Weight	1.35 kg
Depth	24.4 mm
Producator	ASUS
Garantie	36
