Placa de baza ASUS Pro WS WRX80E-SAGE SE WIFI, Socket

Name: Placa de baza ASUS Pro WS WRX80E-SAGE SE WIFI, Socket
SKU: PRO WS WRX80E-SAGE
Availability: OutOfStock

8,422.61 lei

Stoc epuizat

Adaugă la favorite

SKU: PRO WS WRX80E-SAGE Categorie: Placi de baza

Descriere

Placa de baza ASUS Pro WS WRX80E-SAGE SE WIFI, Socket sWRX8

General
Recomandat pentru Gaming	Da
Format	eATX
Soclu procesor	sWRX8
Producator chipset	AMD
Model chipset	WRX80
Procesoare suportate	AMD WRX8 Socket AMD® Ryzen™ Threadripper™ Pro Processors*
Interfata grafica	PCI Express x16 4.0
RAID	0, 1, 10
Placa audio integrata	7.1 Audio with ALC4080
Chipset audio	Realtek ALC4080
Placa retea integrata	10/100/1000/2500/5000/10000 Mbps
Chipset retea	Intel® X550-AT2 dual 10Gb
Numar SATA-III	8
M.2	3
Memorii Suportate
Tip memorie	DDR4
Memorie maxima	2048 GB
Numar sloturi	8
Tehnologie	Eight Channel
Frecvente suportate	3200/3000/2933/2800/2666/2400/2133 MHz
Sloturi
PCI Express 4.0 x16	7

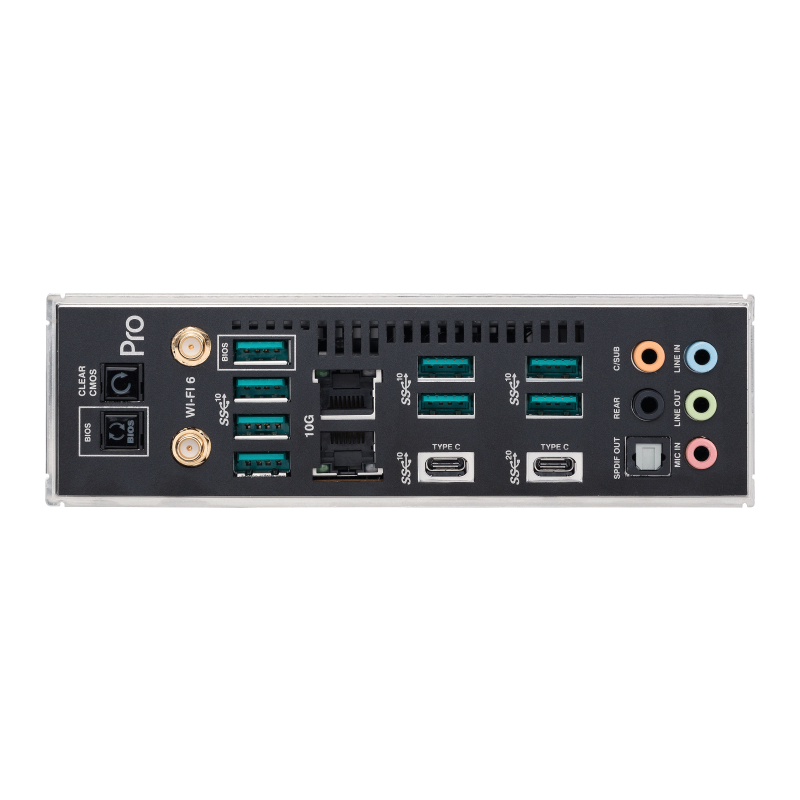

Conectori Back Panel
Optical S/PDIF out	1
Clear CMOS	1
USB 3.2 Gen2 tip A	8
USB 3.2 Gen2 tip C	2
RJ-45 LAN	2
Suport audio	7.1
Bluetooth	Bluetooth 5.1
Wireless	Wi-Fi 802.11 a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
Conectori speciali	1x BIOS Flashback Button
BIOS Flashback	Da

Livrare

Informații suplimentare

PCI	0
Serial-or-Paralel	No/No
Video-Connection	None
Wi-FI	Yes
CPU încorporat	Yes
RAID support	Yes
Component for	PC
Windows operating systems supported	Windows 10 x64
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Ethernet LAN	Yes
Trusted Platform Module (TPM)	Yes
Processor manufacturer	AMD
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Supported memory types	DDR4-SDRAM
Number of processors supported	1
Cooling type	Passive
VGA (D-Sub) ports quantity	1
Compatible operating systems	Windows 10
HDMI ports quantity	0
DVI-D ports quantity	0
Drivers included	Yes
Model Chipset	WRX80
Gaming	Da
Format	E-ATX
Soclu Procesor	Socket sWRX8
Tip Memorie:	DDR4
Numar sloturi memorie	8
Memorie maxima	2 TB
Tip slot interfata grafica	PCIe 4.0 x16
Chipset audio integrat	Realtek
Canale audio	N/A
Wireless	Da
Bluetooth	Da
USB Type-C	Da
HDMI	Nu
Thunderbolt	Nu
Sloturi M.2	3
RJ-45 LAN	N/A
Memory slots type	DIMM
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ECC сompatibility	ECC & Non-ECC
RAID levels	0, 1, 5, 10
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
TPM connector	Yes
Number of M.2 (M) slots	3
Maximum number of SMP processors	1
Clear CMOS button	Yes
PS/2 ports quantity	0
PCI Express x16 (Gen 2.x) slots	0
PCI Express x16 (Gen 3.x) slots	0
Supported storage drive interfaces	SATA III
Number of chassis fan connectors	6
Chassis intrusion connector	Yes
Number of SATA III connectors	8
PCI Express x8 (Gen 3.x) slots	0
Motherboard form factor	Extended ATX
Supported memory clock speeds	2133,2400,2666,2800,2933,3000,3200 MHz
Ethernet interface type	10 Gigabit Ethernet
Processor socket	Socket SP3
Compatible processor series	AMD Ryzen Threadripper PRO 3000 WX-Series
Processor number of cores supported	64
Processor cores	64
Number of memory slots	8
Memory channels	Octa-channel
Parallel processing technology support	2-Way SLI, 3-Way SLI, 4-Way SLI
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	9
LAN controller	Intel X550-T2
Motherboard chipset	AMD WRX80
PCI Express x8 (Gen 2.x) slots	0
PCI Express x16 slots	7
Maximum internal memory	2 TB
Headphone outputs	1
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet LAN (RJ-45) ports	0
Harmonized System (HS) code	84733020
Depth	330 mm
Height	108 mm
Width	309.8 mm
Cables included	SATA, VGA
Weight	572 g
Producator	ASUS
Garantie	36
