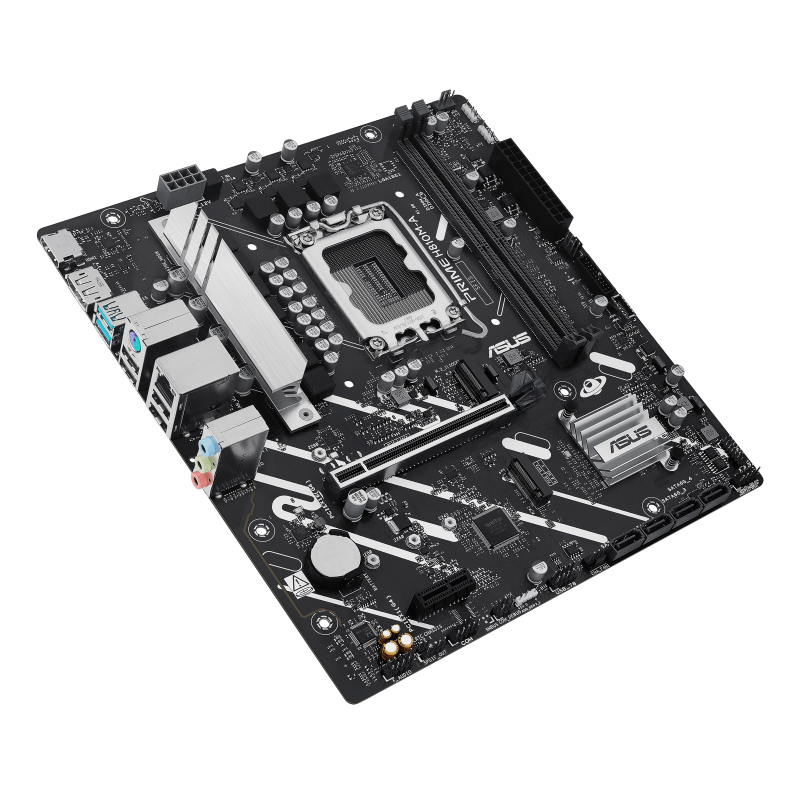

Placa de baza ASUS PRIME H810M-A-CSM, Socket 1851, DDR5, Micro-ATX
1,046.96 lei
Stoc epuizat
Report Abuse
Descriere
Placa de Baza ASUS PRIME H810M-A-CSM LGA 1851, 2x DDR5, 1x DP 1x HDMI 1x PCIE 4.0 x16 1x PCIE 4.0 x1, 2x M.2, 4x SATA 6GB/s, mATX
Livrare
Informații suplimentare
| PCI |
0 |
|---|---|
| Serial-or-Paralel |
No/No |
| Video-Connection |
HDMI/DP |
| Wi-FI |
No |
| Onboard-CPU |
No |
| Component for |
PC |
| Wake-on-LAN ready |
Yes |
| DisplayPort version |
1.4 |
| Ethernet interface type |
Gigabit Ethernet |
| Memory channels |
Dual-channel |
| Processor manufacturer |
Intel |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| Maximum internal memory |
128 GB |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 2.0 ports quantity |
4 |
| Audio output channels |
7.1 channels |
| Line-in |
Yes |
| PCI Express x16 (Gen 4.x) slots |
1 |
| Number of memory slots |
2 |
| Supported storage drive types |
HDD & SSD |
| Number of M.2 (M) slots |
2 |
| DisplayPorts quantity |
1 |
| VGA (D-Sub) ports quantity |
0 |
| Parallel processing technology support |
Not supported |
| DVI-D ports quantity |
0 |
| Windows operating systems supported |
Windows 10 x64, Windows 11 |
| Model Chipset |
H810 |
| Gaming |
Nu |
| Soclu Procesor |
Socket 1851 |
| Tip Memorie: |
DDR5 |
| Numar sloturi memorie |
2 |
| Memorie maxima |
128 GB |
| Tip slot interfata grafica |
PCIe 4.0 x16 |
| Chipset audio integrat |
Realtek |
| Canale audio |
7.1 |
| Wireless |
Nu |
| Bluetooth |
Nu |
| USB Type-C |
Da |
| HDMI |
Da |
| Thunderbolt |
Nu |
| Sloturi M.2 |
2 |
| RJ-45 LAN |
1 |
| Memory slots type |
DIMM |
| Unbuffered memory |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| Number of SATA III connectors |
4 |
| Front panel audio connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| Number of chassis fan connectors |
2 |
| EPS power connector (8-pin) |
Yes |
| PS/2 ports quantity |
1 |
| Motherboard form factor |
micro ATX |
| BIOS type |
UEFI AMI |
| BIOS memory size |
256 Mbit |
| Processor socket |
LGA 1851 (Socket V1) |
| Supported processor sockets |
LGA 1851 |
| Supported memory types |
DDR5-SDRAM |
| Number of HDDs supported |
4 |
| Front panel connector |
Yes |
| TPM connector |
Yes |
| RGB LED pin header |
Yes |
| Motherboard chipset family |
Intel |
| 2nd M.2 highest PCI Express generation |
4.0 |
| Supported storage drive interfaces |
M.2, PCI Express 4.0, SATA III |
| ECC сompatibility |
Non-ECC |
| Number of storage drives supported |
6 |
| S/PDIF out connector |
Yes |
| Number of COM connectors |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| Compatible processor series |
Intel Core Ultra (Series 2) |
| Supported memory clock speeds |
6400 MHz |
| Number of M.2 (E) slots |
1 |
| 1st M.2 largest key size |
2280 |
| 2nd M.2 largest key size |
2280 |
| USB 2.0 connectors |
1 |
| PCI Express x1 (Gen 4.x) slots |
1 |
| Number of EPS power connectors (8-pin) |
1 |
| Number of CPU fan connectors |
1 |
| Motherboard chipset |
Intel H810 |
| 1st M.2 highest PCI Express generation |
4.0 |
| Number of RGB LED pin headers |
3 |
| LAN controller |
Intel I219V |
| Microphone in |
Yes |
| Depth |
222 mm |
| Width |
244 mm |
| Height |
37 mm |
| Power source type |
ATX |
| Package width |
270 mm |
| Package weight |
782 g |
| Package height |
51.5 mm |
| Package depth |
263 mm |
| Weight |
534 g |
| Format |
Micro-ATX |
| Producator |
ASUS |
| Garantie |
