Descriere

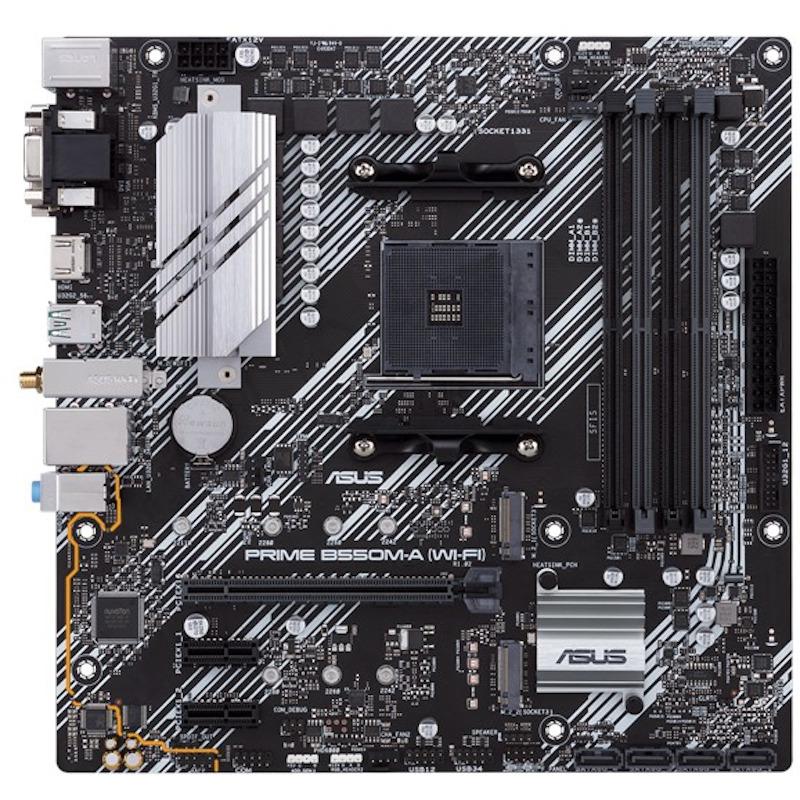

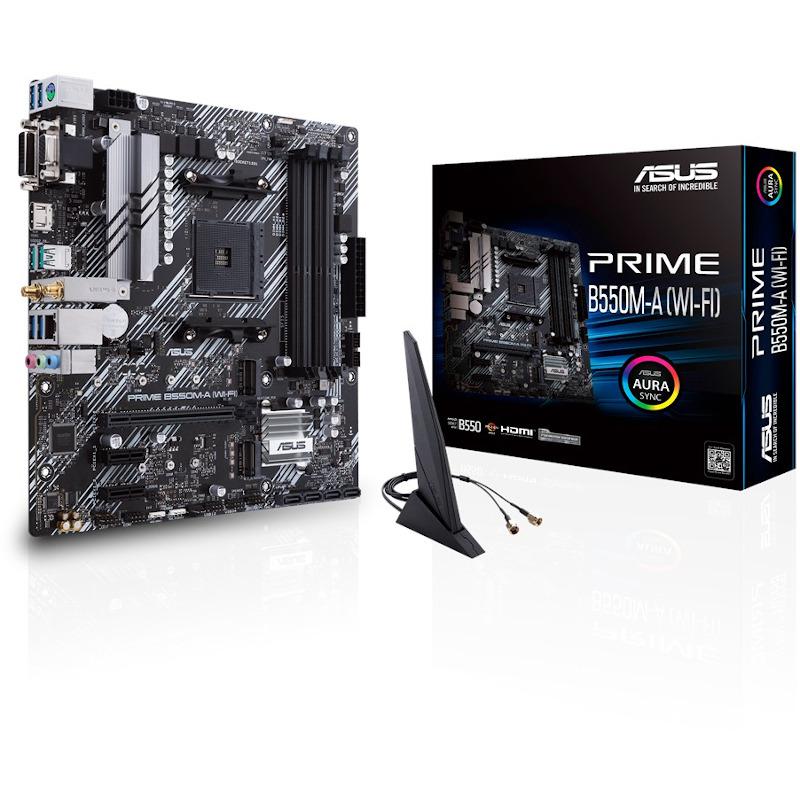

Placa de baza Asus AM4 PRIME B550M-A WIFI II Socket LGA AM4
| General | |
| Recomandat pentru Gaming |
Da
|
| Format |
mATX
|
| Soclu procesor |
AM4
|
| Producator chipset |
AMD
|
| Model chipset |
B550
|
| Procesoare suportate |
AMD AM4 Socket Ryzen™ 3000/5000 Series
Nu este compatibila cu AMD Ryzen 5 3400G și Ryzen 3 3200G |
| Interfata grafica |
PCI Express x16 4.0
|
| RAID |
0, 1, 10
|
| Placa video integrata |
Necesita procesor cu tehnologia AMD Radeon Vega Graphics
|
| Placa audio integrata |
7.1 Audio with Realtek ALC887
|
| Chipset audio |
Realtek ALC887
|
| Placa retea integrata |
10/100/1000 Mbps
|
| Chipset retea |
Realtek RTL8111H
|
| Numar SATA-III |
4
|
| M.2 |
2
|
| Memorii Suportate | |
| Tip memorie |
DDR4
|
| Memorie maxima |
128 GB
|
| Numar sloturi |
4
|
| Tehnologie |
Dual channel
|
| Frecvente suportate |
4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz
|
| Sloturi | |
| PCI Express 4.0 x16 |
1 (x16)
|
| PCI Express x1 |
2
|

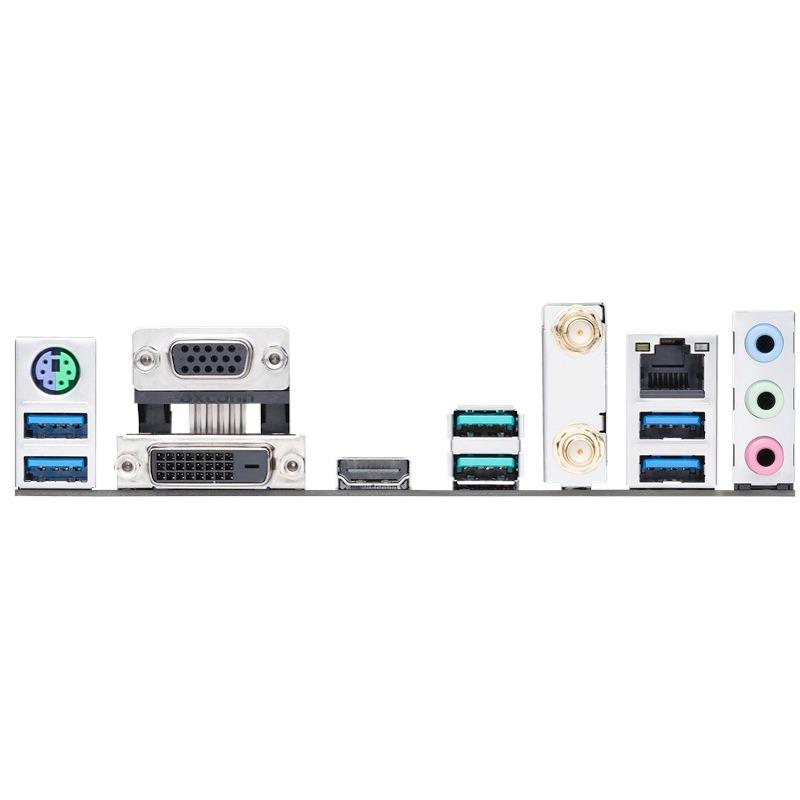

| Conectori Back Panel | |
| PS/2 Mouse-Tastatura |
1
|
| VGA |
1
|
| DVI |
1
|
| HDMI |
1
|
| USB 3.2 Gen1 tip A |
4
|
| USB 3.2 Gen2 tip A |
2
|
| RJ-45 LAN |
1
|
| Suport audio |
5.1
|
| Bluetooth |
Bluetooth 5.1
|
| Wireless |
Wi-Fi 802.11 a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
|
Livrare
Informații suplimentare
| PCI |
0 |
|---|---|
| Serial-or-Paralel |
No/No |
| Video-Connection |
VGA/DVI/HDMI |
| Wi-FI |
Yes |
| CPU încorporat |
No |
| RAID support |
Yes |
| Component for |
PC |
| Wake-on-LAN ready |
Yes |
| USB connector type |
USB Type-A |
| Ethernet interface type |
Gigabit Ethernet |
| Memory channels |
Dual-channel |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| Maximum internal memory |
128 GB |
| Processor manufacturer |
AMD |
| USB 2.0 ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| PCI Express x1 (Gen 3.x) slots |
2 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| Audio output channels |
7.1 channels |
| PCI Express x16 (Gen 4.x) slots |
1 |
| On-board graphics card |
No |
| Supported storage drive types |
HDD & SSD |
| Supported memory types |
DDR4-SDRAM |
| LAN controller |
Realtek RTL8111H |
| Number of M.2 (M) slots |
2 |
| Processor socket |
Socket AM4 |
| Motherboard chipset |
AMD B550 |
| VGA (D-Sub) ports quantity |
1 |
| DVI-D ports quantity |
1 |
| Parallel processing technology support |
Not supported |
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| Drivers included |
Yes |
| Model Chipset |
B550 |
| Gaming |
Nu |
| Format |
Micro-ATX (mATX) |
| Soclu Procesor |
Socket AM4 |
| Tip Memorie: |
DDR4 |
| Numar sloturi memorie |
4 |
| Memorie maxima |
128 GB |
| Tip slot interfata grafica |
PCIe 4.0 x16 |
| Chipset audio integrat |
Realtek |
| Canale audio |
7.1 |
| Wireless |
Da |
| USB Type-C |
Da |
| HDMI |
Da |
| Thunderbolt |
Nu |
| Sloturi M.2 |
2 |
| RJ-45 LAN |
1 |
| Number of memory slots |
4 |
| Memory slots type |
DIMM |
| Unbuffered memory |
Yes |
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| Number of SATA III connectors |
4 |
| Number of SATA II connectors |
0 |
| Number of SATA connectors |
0 |
| Front panel audio connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| Number of chassis fan connectors |
2 |
| EPS power connector (8-pin) |
Yes |
| PS/2 ports quantity |
1 |
| Motherboard form factor |
micro ATX |
| Motherboard chipset family |
AMD |
| BIOS type |
UEFI AMI |
| BIOS memory size |
256 Mbit |
| Clear CMOS jumper |
Yes |
| mSATA ports quantity |
0 |
| TPM connector |
Yes |
| RGB LED pin header |
Yes |
| 12V power connector |
Yes |
| Number of storage drives supported |
6 |
| S/PDIF out connector |
Yes |
| Number of COM connectors |
1 |
| WiFi-AP antenna jack |
1 |
| PCI slots |
0 |
| RAID levels |
0, 1, 10 |
| Supported processor sockets |
Socket AM4 |
| ECC сompatibility |
ECC |
| Compatible processor series |
AMD Ryzen 3000 Series, AMD Ryzen 5000 Series |
| Supported storage drive interfaces |
M.2, PCI Express 3.0, PCI Express 4.0, SATA III |
| Supported memory clock speeds |
2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4466,4600,4800,4866 MHz |
| Number of EATX power connectors |
1 |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| Bluetooth |
Yes |
| Bluetooth version |
5.2 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ethernet LAN (RJ-45) ports |
1 |
| Product colour |
Multicolour |
| Height |
67 mm |
| Harmonized System (HS) code |
84733020 |
| Cables included |
SATA |
| Width |
244 mm |
| Weight |
845 g |
| Depth |
24.4 mm |
| Producator |
ASUS |
| Garantie |
