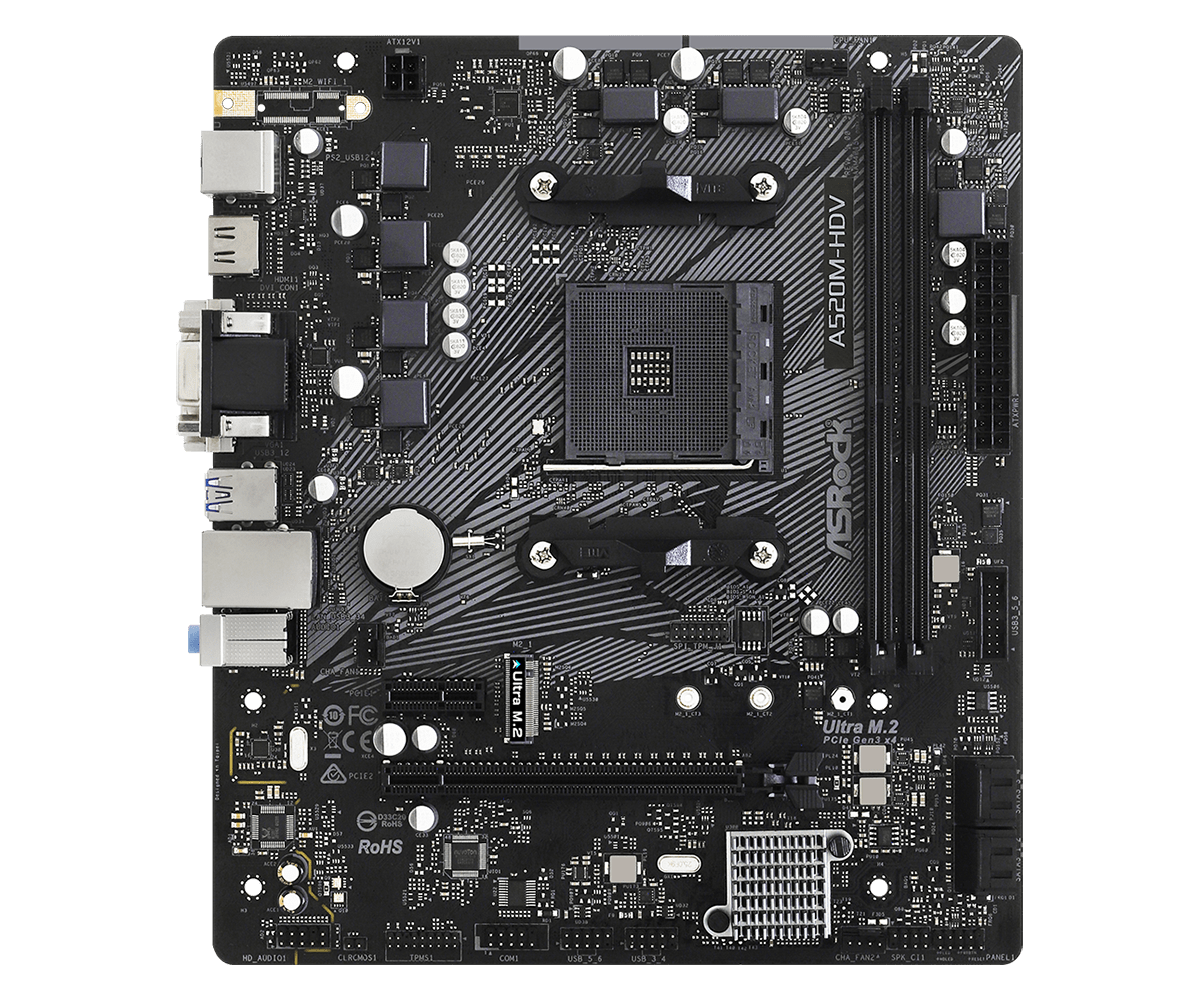

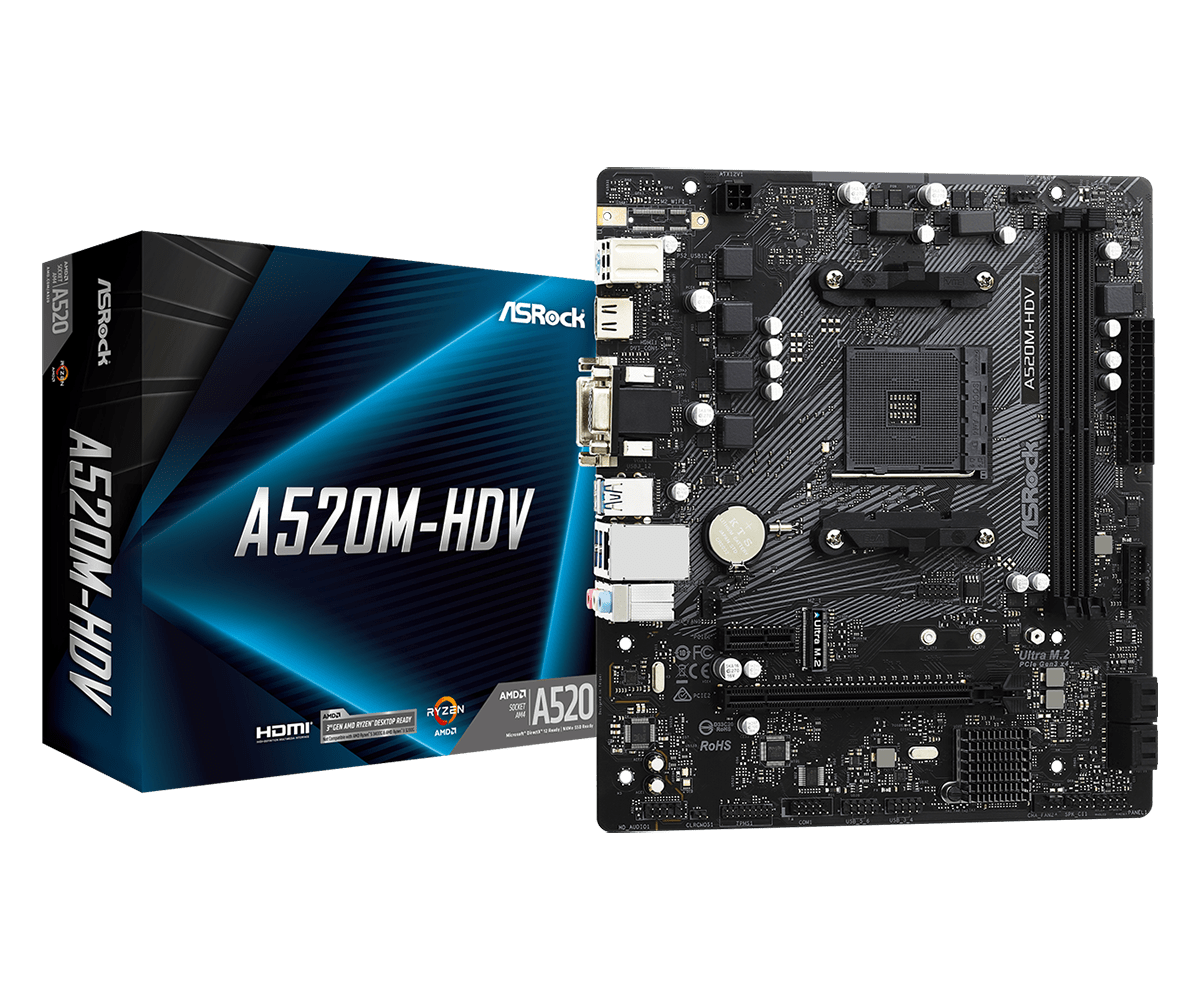

Placa de baza ASRock A520M-HDV, Socket AM4
448.56 lei
98 în stoc
Te poti baza pe cipul AMD A520 pentru a-ti oferi performanta si conexiunile de care ai nevoie. Procesorul conventional de sisteme PC poate accesa doar o fractiune din memoria grafica si limiteaza performanta sistemului. Cu memoria de acces inteligent AMD, canalul de date este extins pentru a valorifica intregul potential al memoriei GPU, elimina blocajul si creste performanta. Aceasta placa de baza suporta cea mai recenta specificatie de iesire grafica HDMI 4K 60Hz. Datorita latimii de banda mai mari si ratei de cadre mai mari, miscarea pe ecran devine mai fluida si mai putin neclara.
| PCI |
0 |
|---|---|
| Serial-or-Paralel |
No/No |
| Video-Connection |
VGA/DVI/HDMI |
| Wi-FI |
No |
| USB3 |
4-8 |
| CPU încorporat |
No |
| PCI-Ex1 |
1 |
| PCI-Ex16 |
1 |
| Component for |
PC |
| Wake-on-LAN ready |
Yes |
| Ethernet interface type |
Gigabit Ethernet |
| Memory channels |
Dual-channel |
| Maximum internal memory |
64 GB |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
1 |
| Processor manufacturer |
AMD |
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| Audio output channels |
7.1 channels |
| PCI Express x1 (Gen 3.x) slots |
1 |
| Number of memory slots |
2 |
| Supported memory types |
DDR4-SDRAM |
| LAN controller |
Realtek RTL8111H |
| Processor socket |
Socket AM4 |
| Graphics card family |
AMD |
| VGA (D-Sub) ports quantity |
1 |
| DVI-D ports quantity |
0 |
| Model Chipset |
A520 |
| Gaming |
Nu |
| Soclu Procesor |
Socket AM4 |
| Tip Memorie: |
DDR4 |
| Numar sloturi memorie |
2 |
| Memorie maxima |
64 GB |
| Tip slot interfata grafica |
PCIe 3.0 x16 |
| Chipset audio integrat |
Realtek |
| Canale audio |
7.1 |
| Wireless |
Nu |
| Bluetooth |
Nu |
| USB Type-C |
Da |
| HDMI |
Da |
| Thunderbolt |
Nu |
| Sloturi M.2 |
1 |
| RJ-45 LAN |
1 |
| Compatible processor series |
AMD Ryzen 3000 Series |
| Memory slots type |
DIMM |
| Unbuffered memory |
Yes |
| Supported storage drive interfaces |
M.2, SATA III |
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| Number of SATA II connectors |
0 |
| Number of Parallel ATA connectors |
0 |
| Front panel audio connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| Number of chassis fan connectors |
2 |
| PS/2 ports quantity |
1 |
| Motherboard form factor |
micro ATX |
| Motherboard chipset family |
AMD |
| BIOS type |
UEFI AMI |
| ECC сompatibility |
Non-ECC |
| Number of COM connectors |
1 |
| eSATA ports quantity |
0 |
| Firewire (IEEE 1394) ports |
0 |
| Supported memory clock speeds |
2133,2400,2666,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4500,4533 MHz |
| Number of HDDs supported |
5 |
| Graphics card |
Radeon Vega |
| Number of SATA III connectors |
0 |
| RAM-Slots |
4 |
| MB-Format |
micro-ATX |
| MB-Socket |
AM4 |
| Microphone in |
Yes |
| Depth |
201 mm |
| Harmonized System (HS) code |
84733020 |
| Width |
230 mm |
| Format |
Micro-ATX |
| Producator |
ASROCK |
| Garantie |
Recenzii
Resetare filtreNu există recenzii până acum.
