Descriere

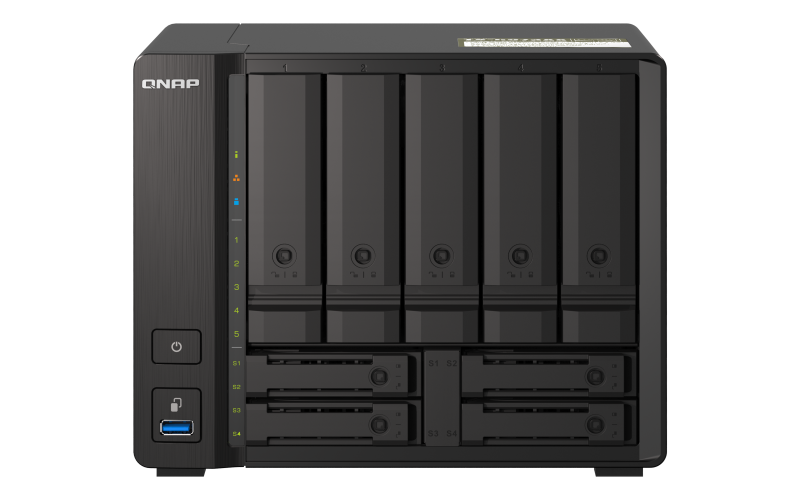

NAS QNAP h973AX 9-Bay, CPU AMD Ryzen V1000 series V1500B 4C/8T 2.2 GHz, RAM 8GB (1 x 8GB) DDR4 SODIMM (max. 64GB total, optional ECC RAM support), 5 x 2.5″/3.5″ SATA 6Gbps + 2 x 2.5″ U.2 NVMe PCIe Gen3 x4 / 2.5″ SATA 6Gbps + 2 x 2.5″ SATA 6Gbps HDD (neincluse), LAN: 2 x 2.5GbE + 1 x 10GBASE-T Multi-Gig (10G/5G/2.5G/1G), Tower, adapter, garantie 3 ani

Livrare

Informații suplimentare

Storage-Format	NAS
Storage-Interface	RJ45+USB
Storage-Type	HDD
USB Port	Yes
Supported-HDDs	12
S.M.A.R.T. support	Yes
Storage relative humidity (H-H)	5 – 95%
RAID support	Yes
External power adapter	Yes
Hot-swap drive bays	Yes
DHCP client	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Link aggregation	Yes
Cooling type	Active
Backup function	Yes
Power supply location	External
Quick installation guide	Yes
Number of fans	1 fan(s)
Internal memory type	DDR4
Internal memory	8 GB
Memory form factor	SO-DIMM
Ethernet LAN	Yes
Cable lock slot	Yes
Processor threads	8
Processor manufacturer	AMD
Processor cores	4
Processor frequency	2.2 GHz
Cable lock slot type	Kensington
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
Chassis type	Tower
Supported storage drive types	HDD & SSD
Number of storage drives supported	9
Supported network protocols	IPv4, IPv6
Reset button	Yes
DHCP server	Yes
Access Control List (ACL)	Yes
Dynamic DNS (DDNS)	Yes
Number of power supply units	1
Fan diameter	14 cm
Fan voltage	12 V
Ethernet LAN data rates	100,1000,2500,5000,10000 Mbit/s
Built-in FTP server	Yes
Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives installed	0
Installed storage drive type	No
Storage drive capacity	0 GB
Storage drive sizes supported	2.5,3.5
Online RAID expansion	Yes
RAID rebuild	Yes
Disk roaming	Yes
Ethernet LAN data rate supported (max)	10000 Mbit/s
Load balancing system	Yes
Drive bay locking	Yes
Device class	Small & Medium Business
Backup features	Cloud, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Snapshot	Yes
System log	Yes
Hot spare	Yes
USB copy function	Yes
Power supply unit (PSU) capacity	120 W
Power cables quantity	1
Number of screws	56
Drive tray key included	Yes
Disk scan	Yes
Password authentication	Yes
Third-party support	Yes
Processor family	Ryzen Embedded
Processor model	V1500B
Processor generation	AMD Ryzen Embedded V1000 Series
Flash memory	5000 MB
Concurrent connections	2000
Supported file systems	FAT32, HFS+, NTFS, ZFS, exFAT, ext3, ext4
Maximum RAM supported	32 GB
Supported storage drive interfaces	Serial ATA II, Serial ATA III, U.2
RAID levels	0, 6, 1, 50, JBOD, 5, 60, 10
Copper ethernet cabling technology	10GBASE-T
Security algorithms	256-bit AES, HTTPS, SSH
Browser supported	Apple Safari, Google Chrome, Microsoft Internet Explorer, Mozilla Firefox
Share folder	AFP, CIFS/SMB, FTP, WebDAV
Operating system installed	QuTS hero
Operating system version	h5.0.0
Other operating systems supported	IBM AIX 7.1, IBM AIX 7.2, Solaris 10, Solaris 11
Power consumption (HDD standby)	41.2 W
Format	Tower
Frecventa Procesor:	2.2 GHz
Media storage inclus:	Nu
Media storage suportat:	9
Tip Media storage :	HDD si SSD
Memorie RAM instalata:	8GB
Tip Memorie:	DDR4
Numar porturi RJ-45:	3
HDMI	Nu
Operating temperature (T-T)	0 – 40 °C
Memory slots	2
Operating relative humidity (H-H)	5 – 95%
Harmonized System (HS) code	84714100
On/off switch	Yes
Storage temperature (T-T)	-20 – 70 °C
AC input voltage	100 – 240 V
Cables included	AC, LAN (RJ-45)
Ethernet LAN (RJ-45) ports	3
Weight	3.52 kg
Package weight	5.12 kg
Width	224.6 mm
Depth	224.1 mm
Height	182.7 mm
LED indicators	HDD, LAN, Power, SSD, Status, USB
Noise level	22.9 dB
Power consumption (typical)	55.41 W
Producator	QNAP
Garantie	36
