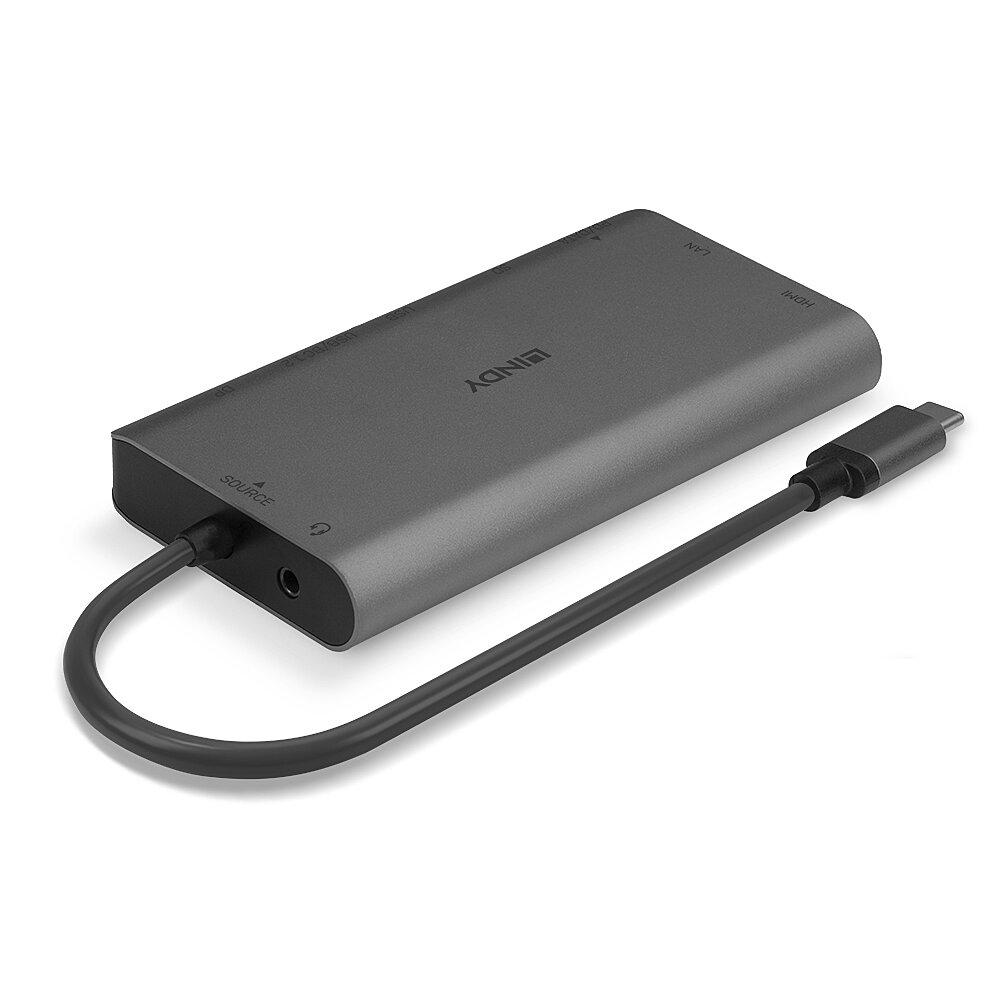

Mini Docking Station Lindy USB 3.2 Type C – 4K

Name: Mini Docking Station Lindy USB 3.2 Type C - 4K
SKU: LY-43323
Availability: OutOfStock

723.41 lei

Stoc epuizat

Adaugă la favorite

SKU: LY-43323 Categorie: Hub-uri USB

Descriere

Mini Docking Station Lindy USB 3.2 Type C – 4K HDMI & DP, PD 3.0 100W, USB 3.2, Gigabit Ethernet, SD, Audio
Connect your peripherals via a single USB Type C cable

Description

Adds 2 USB Type A ports & 1 USB Type C port (5Gbps), a 4K HDMI and DP port, Gigabit Ethernet and an Audio port to a laptop
Supports 3840×2160@30Hz for an HDMI or DP display and Full HD 1920×1080 for simultaneous use of HDMI and DP displays
Features DisplayPort Alternate Mode
USB Power Delivery 3.0 (100W) allows charging the laptop while using the Mini Dock

echnical details

Specifications

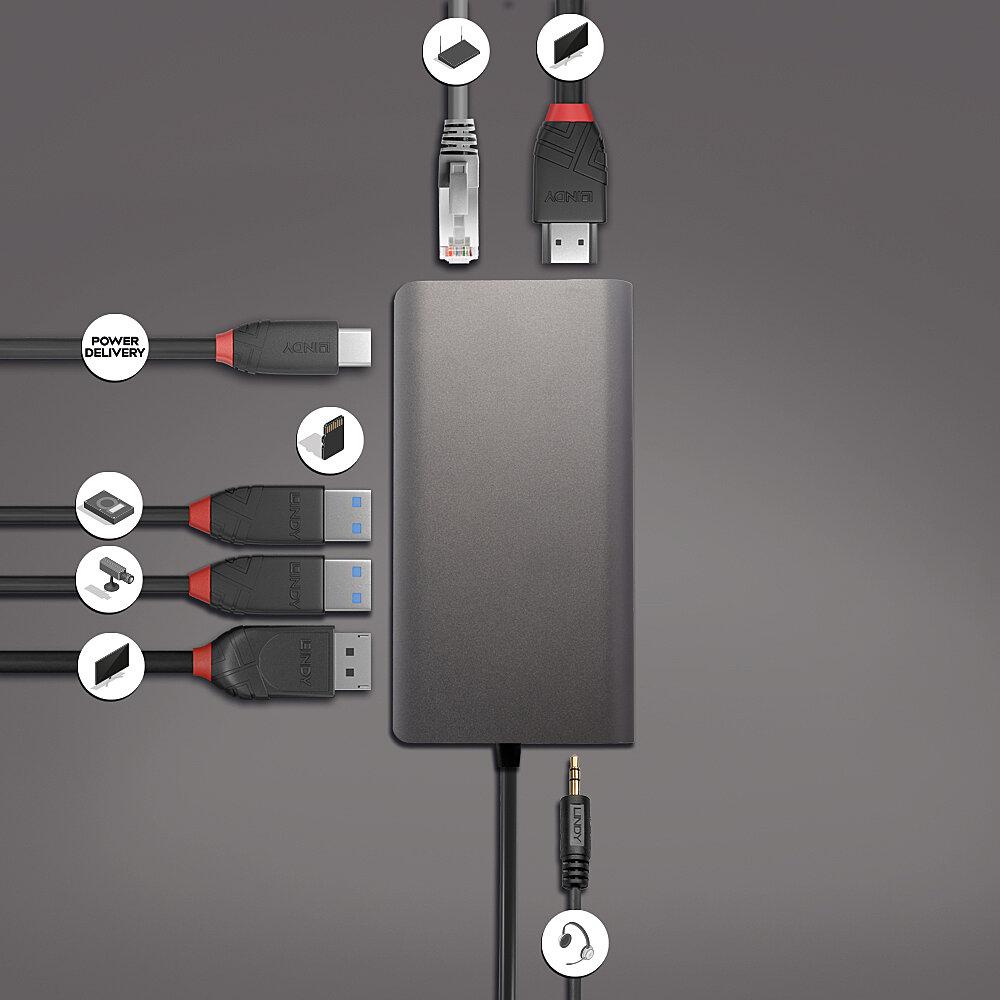

Interface: USB Type C to 1x HDMI / 1x DP / 1x RJ45 / 2x USB Type A / 1x USB Type C / 1x SD / 1x Audio
Interface Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0, HDMI 1.4, DP 1.2, Gigabit LAN, Audio (combo)
Supported Bandwidth: 5 Gbps, 10/100/1000 Mbps
Maximum Input Resolution: 3840×2160@30Hz
Maximum Output Resolution: 3840×2160@30Hz (HDMI), 3840×2160@30Hz (DP), simultaneous connection: 1920×1080
Chipset: VM3332, VL817, VL102, AU6438, RTL8153B, HS-100B
Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support
Power Delivery: PD 3.0 up to 100W (20V 5A)
HDCP Support: HDCP 1.4
Supported Audio: Supports 48/44.1kHz audio sampling rate
Separate Audio Ports: 1x Audio combo port 3.5mm
Special Features: DisplayPort Alternate Mode, MST Extended display support, USB Type C Female port supports power and data, 1x Battery Charging 1.2 port

Connectors

Inputs: 1 x USB Type C (Male)

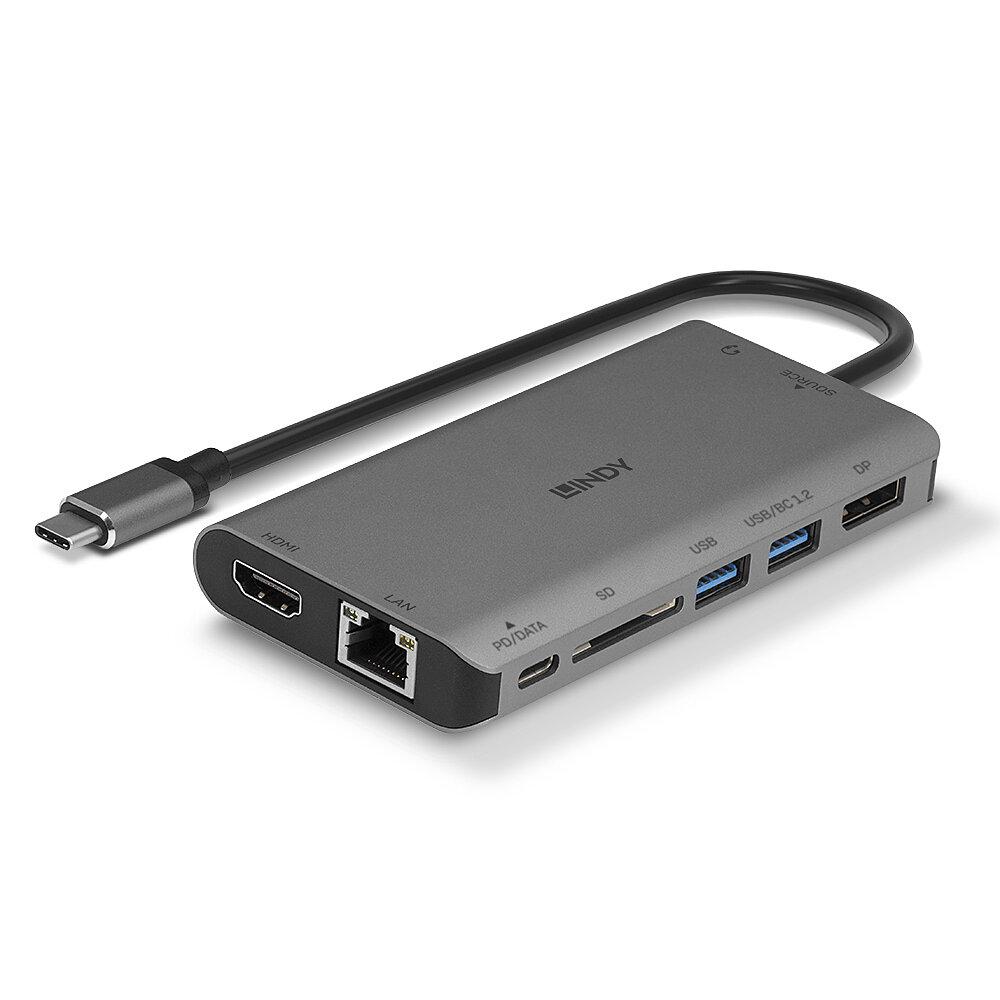

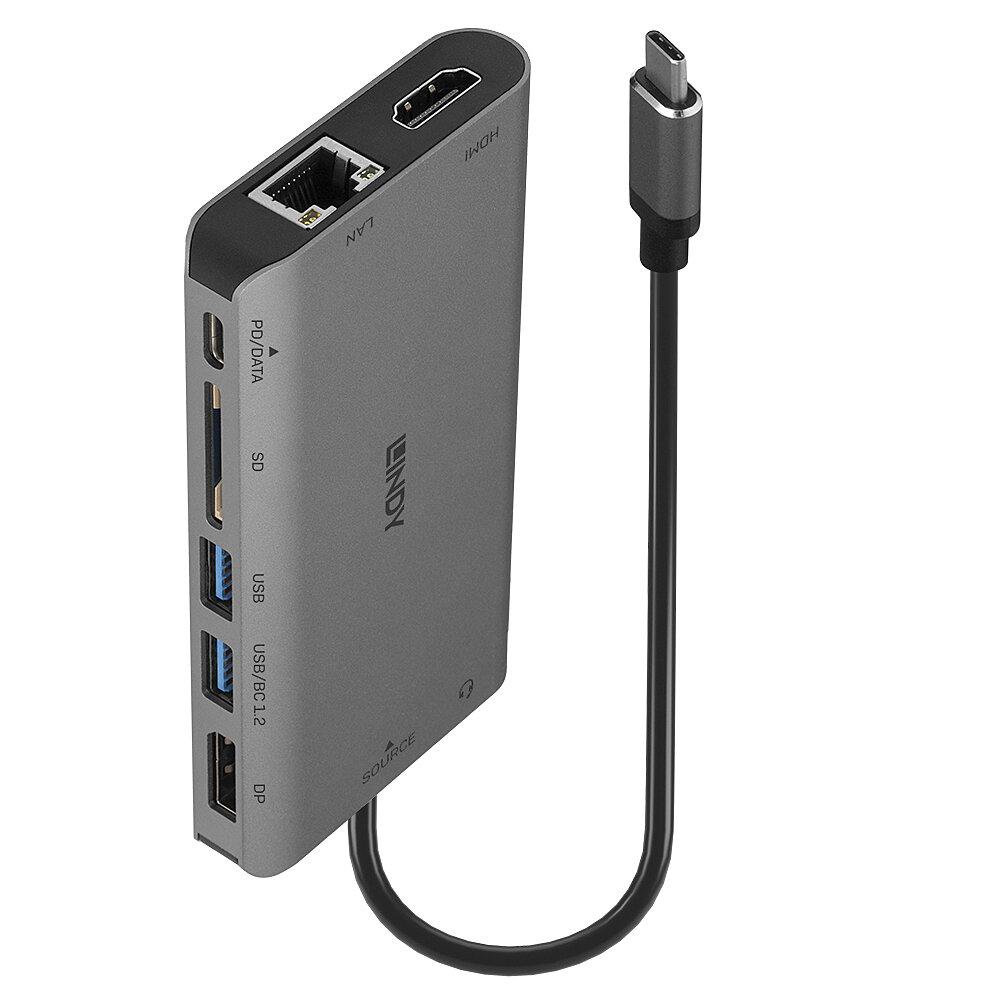

Outputs: 1x HDMI (Female), 1x DisplayPort (Female), 1x RJ45 (Female), 2x USB Type A (Female), 1x USB Type C (Female) / 1x SD slot, 1x 3.5mm Audio (Female)
Power: 1 x USB Type C (Female) PD port

Physical Properties

Dimensions WxDxH: 116.5x61x16mm (4.59×2.4×0.63in)
Housing Material: Aluminium
Net Weight: 0.115kg (0.25lb)
Operating Temperature: 0° – 55°C (32°F – 131°F)
Storage Temperature: -10°C – 70°C (-14°F – 158°F)
Humidity: 0 – 85% RH (non-condensing)
Power Requirements: Bus-powered
Colour: Grey

Miscellaneous

Packaging Type: Carton Box
Packaging Dimensions: 150x137x120mm (5.91×5.39×0.79in)
Gross Weight: 0.15kg (0.33lb)
Warranty (Years): 2
Certificated: CE, UKCA, FCC, REACH & RoHS, California Proposition 65

Package Contents

USB 3.2 Type C Laptop Mini Dock
Lindy Manual

Livrare

Informații suplimentare

Connectivity technology	Wired
Combo headphone/mic port	Yes
Card reader integrated	Yes
Data transfer rate	5 Gbit/s
Ethernet LAN data rates	1000 Mbit/s
Ethernet LAN	Yes
HDMI ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
HDMI version	1.4
USB 2.0 ports quantity	0
USB Power Delivery (USB PD)	Yes
HDCP	Yes
Maximum refresh rate	30 Hz
USB Power Delivery revision	3.0
HDCP version	1.4
DisplayPort version	1.2
USB Power Delivery up to	100 W
DisplayPorts quantity	1
Interfata	USB-C
Tip port USB	USB 3.2
Porturi	peste 5
Alimentare separata	Nu
Port HDMI	Da
Port RJ-45	Da
Card Reader	Da
Culoare	Gri
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Maximum digital resolution	3840 x 2160 pixels
HD type	4K Ultra HD
Compatible memory cards	SD
Quantity per pack	1 pc(s)
Storage temperature (T-T)	-10 – 70 °C
Product colour	Black, Grey
Ethernet LAN (RJ-45) ports	1
Operating relative humidity (H-H)	0 – 85%
Power source type	USB
Harmonized System (HS) code	84733020
Manual	Yes
Housing material	Aluminium
Package height	120 mm
Compliance certificates	CE, REACH, RoHS
Microphone in	No
Headphone outputs	0
Package width	150 mm
Operating temperature (T-T)	0 – 55 °C
Package depth	137 mm
Weight	115 g
Package weight	150 g
Height	16 mm
Width	116.5 mm
Depth	61 mm
Producator	LINDY
Garantie	24
