Descriere

Lifecycle

Obsolete Date 31-05-2025
End of support date 30-09-2027

Specifications

Warranty HPE Solid State Drives and Add-In Cards have a standard 3/0/0 warranty; Customer Self Repair (CSR) subject to maximum usage limitations. Maximum usage limit is the maximum amount of data that can be written to the drive. Drives that have reached this limit will not be eligible for warranty coverage.
Weight 0.5 kg
Product dimensions (imperial) 5 x 9 x 7 in
Product dimensions (metric) 12.7 x 22.86 x 17.78 cm
Weight 1.1 lb
Platform supported HPE Compute Mainstream Platforms, see QuickSpecs for more information
Drive form factor SFF
Carrier type Smart Carrier
Capacity 1.6 TB
Interface NVMe
Workload Mixed Use
Height 15mm
Write IOPS Random Write IOPS (4KiB, Q=16) 180,000 Max Random Write IOPS (4KiB) 225,000@Q64
Read IOPS Random Read IOPS (4KiB, Q=16)=180,000 Max Random Read IOPS (4KiB)=950,000@Q256
Lifetime writes 8,560
Endurance DWPD (Drive Writes Per Day) 3
Plug type Hot Pluggable
Power (Watts) 14

Quickspecs

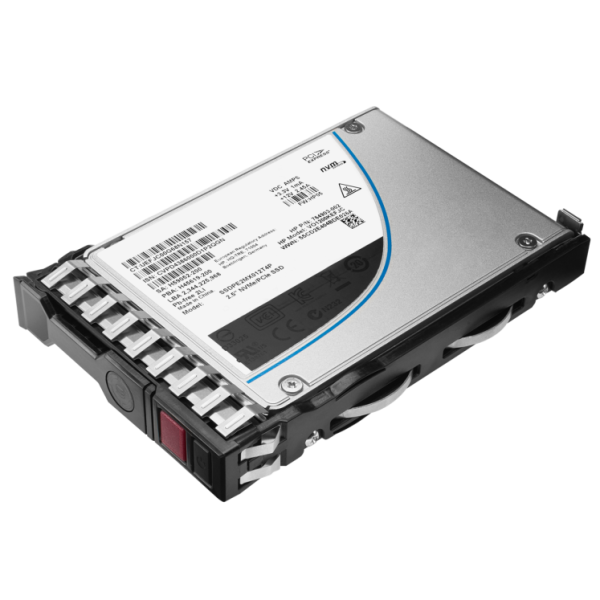

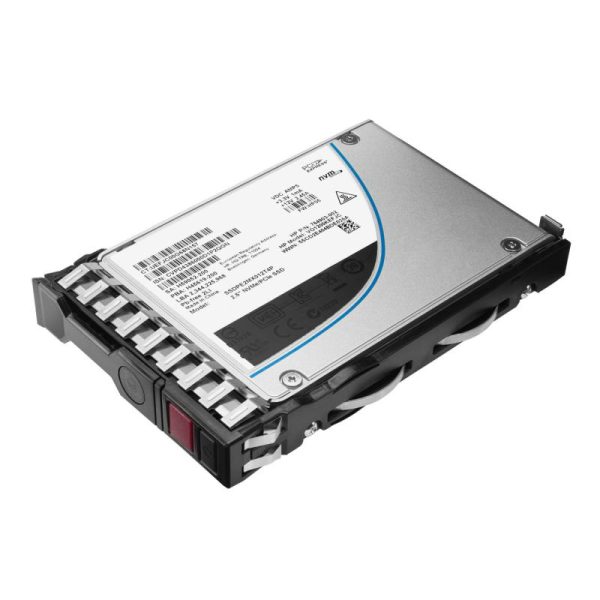

Overview

Do you need to accelerate the performance of your mixed use applications? HPE NVMe High Performance Mixed Use (MU) SSDs are best suited for high I/O applications that require a balanced performance between reads and writes to deliver high performance and endurance for data intensive applications. NVMe High Performance MU SSDs communicate directly to applications via the PCIe bus to boost I/O bandwidth and reduce latency. HPE NVMe High Performance MU SSDs deliver high performance and lower latency data transfers from storage significantly faster than SAS or SATA SSDs. It utilizes the high bandwidth of PCIe Gen4 in select servers for mixed use workloads such as Big Data analytics, HPC, and virtualization.

What’s new

Offer HPE 1.6 TB, 3.2 TB, and 6.4 TB NVMe High Performance Mixed Use SFF SSDs.

Features

Achieve higher IOPS and lower latency to enhance the performance of your data center.

Maintain data accuracy with full data-path error detection.

Choose from a broad portfolio of enhanced solutions in a wide variety of capacities.

HPE NVMe PCIe Gen4 U.3 Dynamic SSDs are 100% backwards compatible with NVMe U.2 SSD backplanes on selected HPE ProLiant servers.

HPE NVMe PCIe Gen4 U.3 SSDs deliver higher performance for server-storage solutions to better meet the challenges within high performance workloads.

HPE Continues to Enhance its SSD Portfolio by Offering NVMe PCIe Gen4 U.3 SSDs
High Performance, Exceptional Reliability, and Efficiency for Faster Business Results

HPE NVMe High Performance Mixed Use (MU) Solid State Drives are ideal for Big Data analytics, cloud computing, high performance compute, business intelligence, database applications, and virtualization.
