Descriere

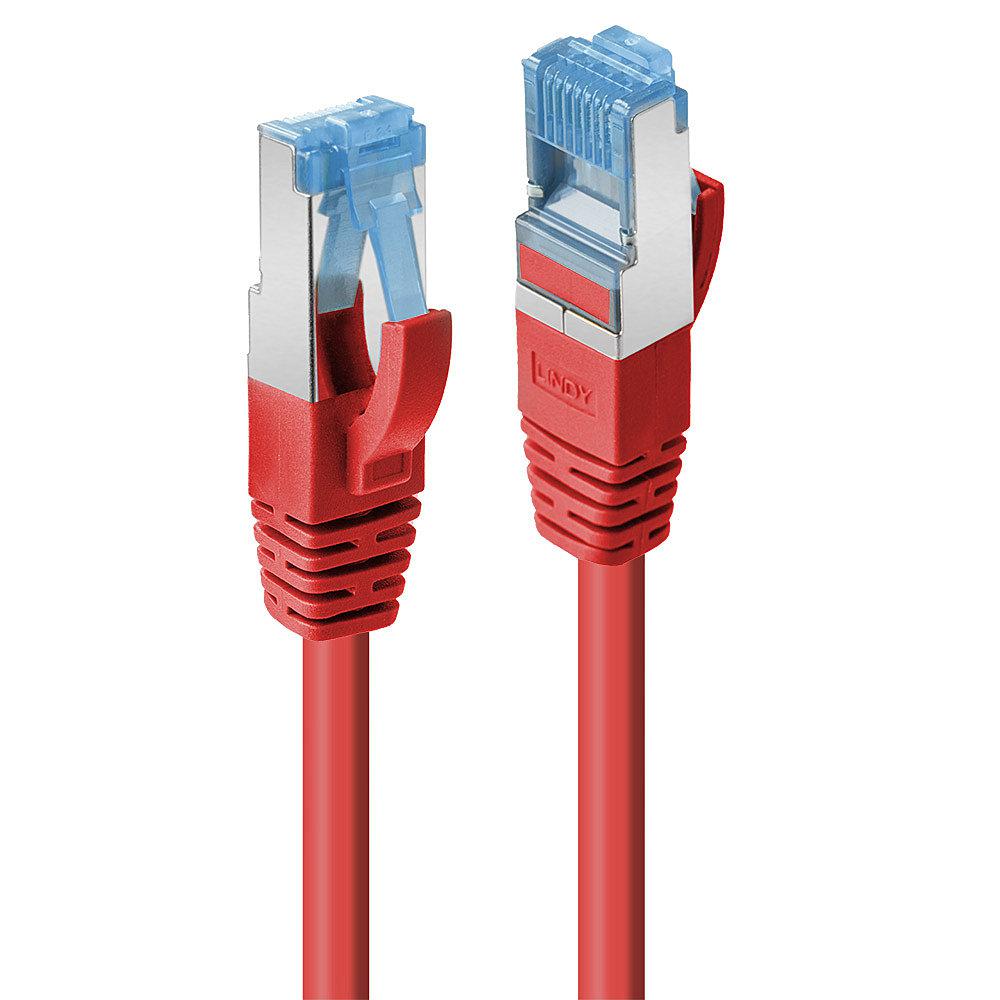

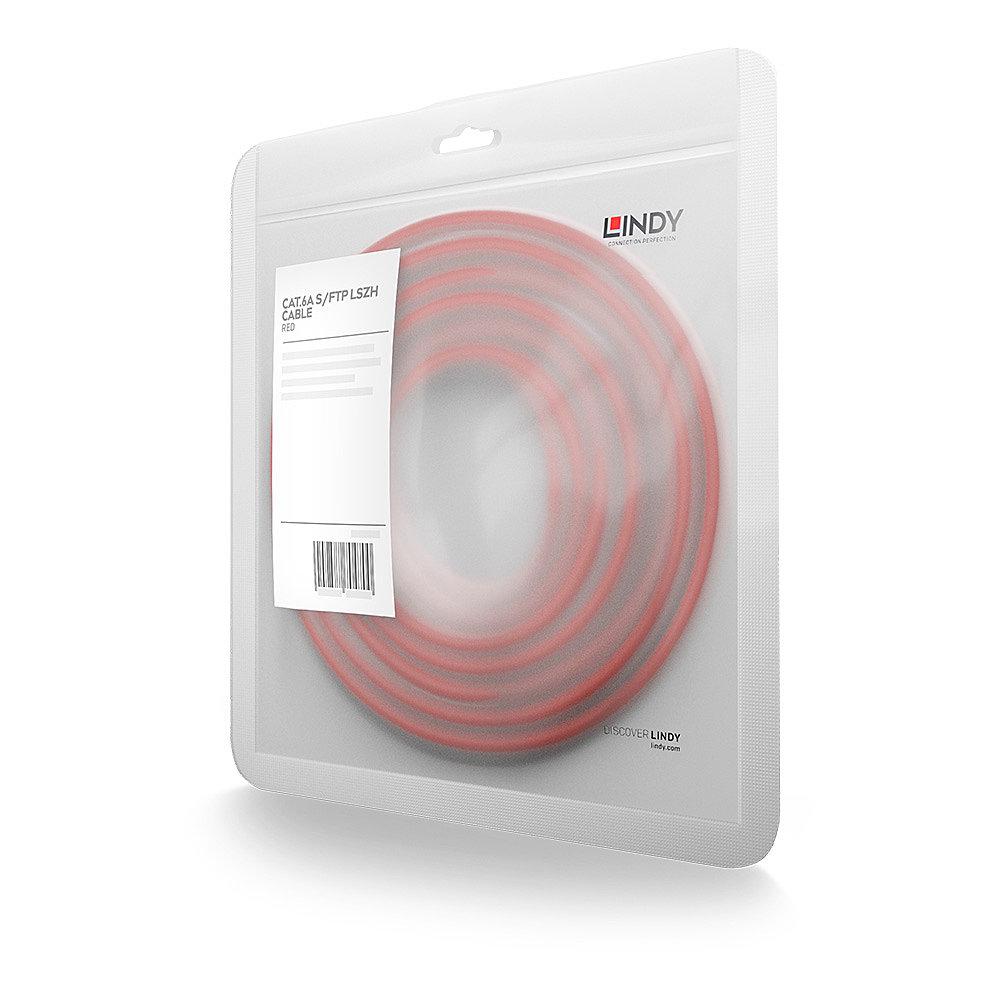

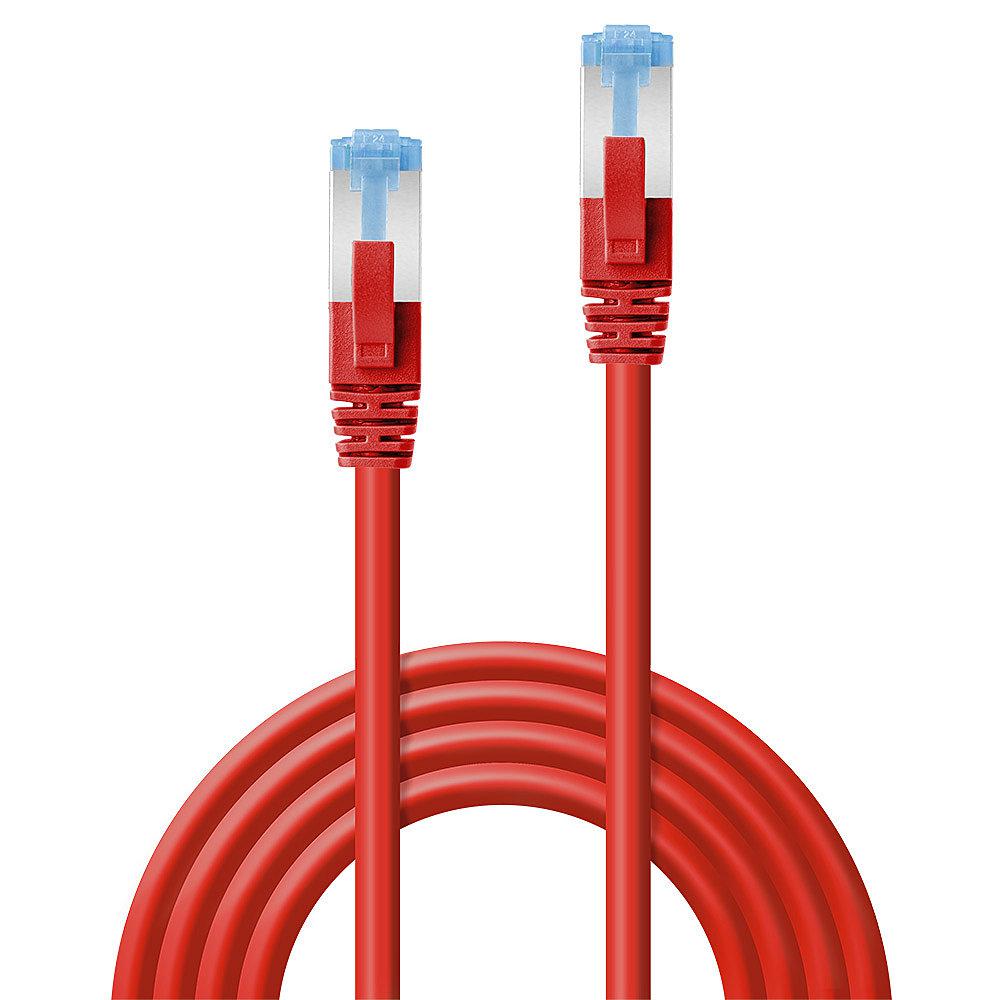

Cablu Lindy 1m Cat.6A S/FTP LSZH Network Cable, Red RJ45, M/M, 500MHz, Copper Technical details Connectors Connector A: RJ45 Male Connector B: RJ45 Male Housing Material: Polycarbonate Connector Plating: Nickel Pin Construction: Brass Pin Plating: Gold plated Dimensions (approx.) WxDxH: 11.6×21.5×8.3mm (0.46×0.85×0.33in) Cable Construction Length: 1m (3.28ft) Colour: Red Type: Cat.6A Jacket Diameter: 6.0mm (0.24in) Jacket Material: LSZH Conductor Material: Copper Conductor Gauge: 27AWG Shielding: Aluminium Braid Specifications Supported Bandwidth: 500MHz Nominal Attenuation: 49.3dB/100m @ 500MHz Minimum Bend Radius: 72mm (2.84in) Operating Temperature: -10°C – 60°C (14F – 140°F) Storage Temperature: -20°C – 75°C (-4F – 167°F) Miscellaneous Packaging Type: Polybag Warranty (Years): 10 Certificated: RoHS, REACH, UL Purchasing Information No.: 47162 EAN: 4002888471626 https://www.lindy-international.com/1m-Cat-6A-S-FTP-LSZH-Network-Cable- Red.htm?websale8=ld0101.ld021102&pi=47162&ci=80

Livrare

Informații suplimentare

Coating	LSZH
CO-Cable-Type	SFTP
Plug and Play	Yes
Cabling technology	10/100/1000Base-T(X)
Data transfer rate	1000 Mbit/s
Connector 1 gender	Male
Connector 2 gender	Male
Connector shield material	Aluminium
Conductor material	Copper
Connector shielding	Yes
AWG wire size	27
Connector contacts plating	Nickel/Gold
Connector 2	RJ-45
Conector 1:	RJ45
Conector 2:	RJ45
Lungime:	1 m
Standard cablu	Cat6a
Ecranare/Protectie	S/FTP (S-STP)
PoE	Nu
Culoare	Rosu
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Cable class	E
Cable standard	Cat6a
Jacket material	Low smoke zero halogen (LSZH)
Frequency	500 MHz
Bend radius (min)	7.2 cm
Outer diameter	6 mm
Quantity per pack	1 pc(s)
Harmonized System (HS) code	84733080
Cable length	1 m
Package type	Polybag
Product colour	Red
Storage temperature (T-T)	-20 – 75 °C
Certification	RoHS, REACH, UL
Connector 1 dimensions (WxDxH)	11.6 x 21.5 x 8.3 mm
Connector 2 dimensions (WxDxH)	11.6 x 21.5 x 8.3 mm
Producator	LINDY
Garantie	24
