Descriere

Lifecycle

Obsolete Date 15-11-2024
End of support date 31-08-2029

Specifications

Transfer rate 1Gb
Protocol supported 802.3, 802.3ab, 802.3u, 802.3x, Dynamic 802.3ad, 802.1Q, 802.3az, 1588, 802.1as
Network controller Broadcom BCM5719
Port speed 8 Gb/s
Connector type Base-T
Supported cables Category 6A (Cat6A) (RJ-45)
Bus type PCIe 2 x4
IEEE compliance 802.3, 802.3ab, 802.3u, 802.3x, Dynamic 802.3ad, 802.1Q, 802.3az, 1588, 802.1as
Data rate 1Gb
Form factor Stand Up
Compatible operating systems Microsoft Windows Server 2008, HPC Server 2008,icrosoft Windows 2008 Red Hat Enterprise Linux 5.7 (AMD64/EM64T) Red Hat Enterprise Linux 6.1 (AMD64/EM64T) SLES 10 and 11 Oracle Solaris 10 VMware ESX and ESXi Microsoft Windows Hyper-V
Power Typical – 1.0W Max – 4.3W
Network processor Broadcom BCM5719 chipset
Server type supported ProLiant servers
Number of ports 4-port
Product dimensions (metric) 5.72 x 24.13 x 19.05 cm
Technology Network processor
Weight 1 lb
Product dimensions (imperial) 2.25 x 9.5 x 7.5 in
Weight 0.45 kg
Power availability 6W (maximum)

Quickspecs

Overview

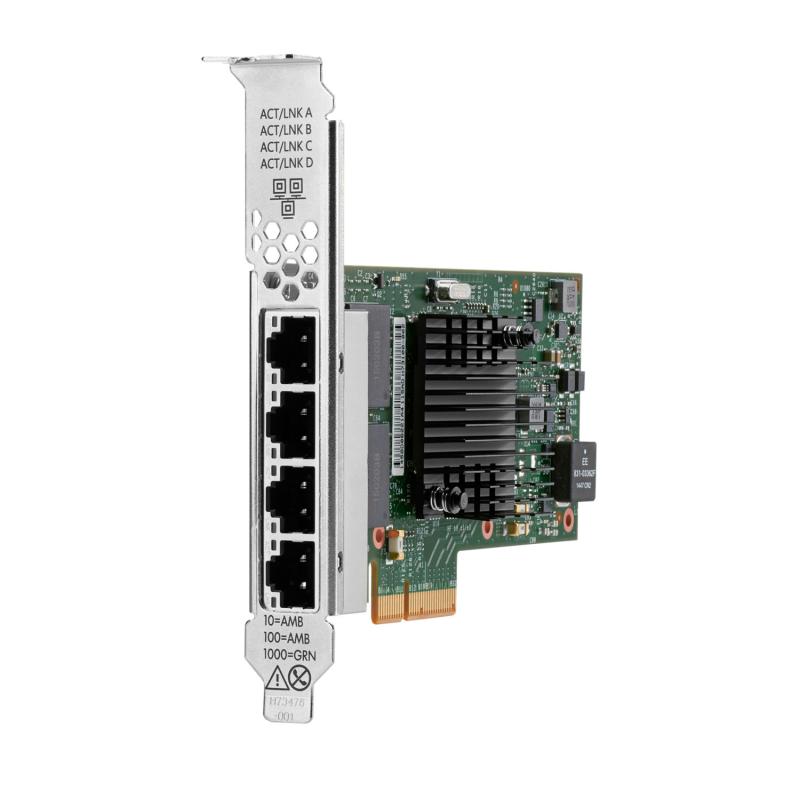

Do you need a 1GbE adapter with low power, high port density and virtualization features? The HPE Ethernet 1Gb 4-port BASE-T BCM5719 Adapter features the next generation of Ethernet integration, offering a single chip solution that reduces power requirements and optimizes I/O slot utilization. It delivers full line-rate performance across all ports with low power consumption. The HPE Ethernet 1Gb 4-port BASE-T BCM5719 Adapter is ideal for virtualization, security, server consolidation, network segmentation, and other applications requiring maximum throughput and port density. The total aggregate throughput of 8 Gb meets the needs of customers desiring high bandwidth. The HPE Ethernet 1Gb 4-port BASE-T BCM5719 Adapter supports advanced features such as Large Send and Receive offload capability, TCP checksum and segmentation, VLAN tagging, MSI-X, jumbo frames, IEEE 1588, and virtualization features such as VMware NetQueue and Microsoft VMQ.

Features

Support for Energy Efficient Ethernet (EEE) reduces operating expenses.

Support for MSI/MSI-X provides performance benefits for multi-core servers by load balancing interrupts between CPUs/cores.

Virtualization support for VMware NetQueue and Microsoft VMQ help meet the performance demands of consolidated virtual workloads.

An aggregate, full duplex transfer rate of 8 Gb/s per adapter delivers outstanding network performance that improves response time and removes bottlenecks.

Comprehensive stateless offloads optimize host efficiency and VM density by leaving host CPU available for other duties.

Designed for Maximum Throughput and High Port Density.
