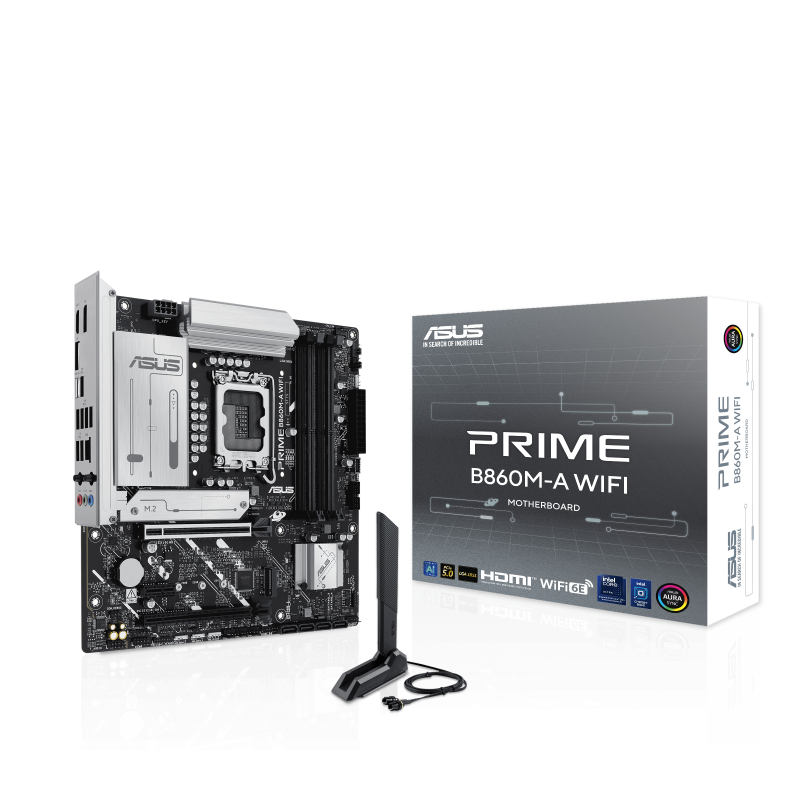

Placa de baza ASUS PRIME B860M-A WIFI, Socket 1851, DDR5,

Name: Placa de baza ASUS PRIME B860M-A WIFI, Socket 1851, DDR5,
SKU: PRIME B860M-A WIFI
Availability: OutOfStock

1,696.48 lei

Stoc epuizat

Adaugă la favorite

SKU: PRIME B860M-A WIFI Categorie: Placi de baza

Descriere

Placa de Baza ASUS PRIME B860M-A WIFI LGA1851, 4x DDR5, 2x DP 1x HDMI, 1x PCIE 5.0 x16 1x PCIE 4.0 x16 1x PCIE 4.0 x1, 2x M.2, 4x SATA 6GB/s, mATX

Livrare

Informații suplimentare

PCI	0
Serial-or-Paralel	No/No
Video-Connection	HDMI/DP
Wi-FI	Yes
Onboard-CPU	No
RAID support	Yes
Component for	PC
Memory channels	Dual-channel
Processor manufacturer	Intel
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet LAN	Yes
HDMI ports quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 2.0 ports quantity	4
Audio output channels	7.1 channels
DisplayPorts quantity	2
PCI Express x16 (Gen 5.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
Supported storage drive types	HDD & SSD
Number of M.2 (M) slots	2
Screws included	Yes
VGA (D-Sub) ports quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
Windows operating systems supported	Windows 10 x64, Windows 11
Model Chipset	B860
Gaming	Nu
Soclu Procesor	Socket 1851
Tip Memorie:	DDR5
Numar sloturi memorie	4
Memorie maxima	256 GB
Tip slot interfata grafica	PCIe 5.0 x16
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
Bluetooth	Da
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	2
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Processor socket	LGA 1851 (Socket V1)
Supported processor sockets	LGA 1851
Supported memory types	DDR5-SDRAM
Maximum internal memory	256 GB
Number of HDDs supported	4
RAID levels	0, 1, 5, 10
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
TPM connector	Yes
RGB LED pin header	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Motherboard chipset family	Intel
Motherboard chipset	Intel B860
1st M.2 highest PCI Express generation	5.0
2nd M.2 highest PCI Express generation	4.0
Antenna included	Yes
12V power connector	Yes
ECC сompatibility	Non-ECC
Number of storage drives supported	6
S/PDIF out connector	Yes
Number of COM connectors	1
WiFi-AP antenna jack	1
Compatible processor series	Intel Core Ultra (Series 2)
Thunderbolt headers	1
Chassis intrusion connector	Yes
Number of chassis fan connectors	3
1st M.2 largest key size	2280
2nd M.2 largest key size	2280
USB 2.0 connectors	1
PCI Express x1 (Gen 4.x) slots	1
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Bluetooth version	5.3
Cables included	SATA
Width	244 mm
Package depth	275 mm
Package width	275 mm
Package height	67.5 mm
Package weight	1.44 kg
Depth	24.4 mm
Format	Micro-ATX
Producator	ASUS
Garantie	36
