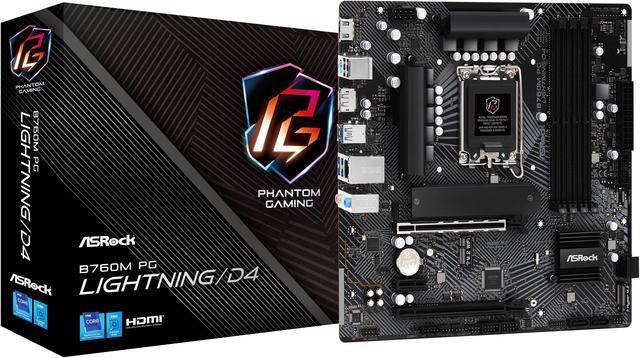

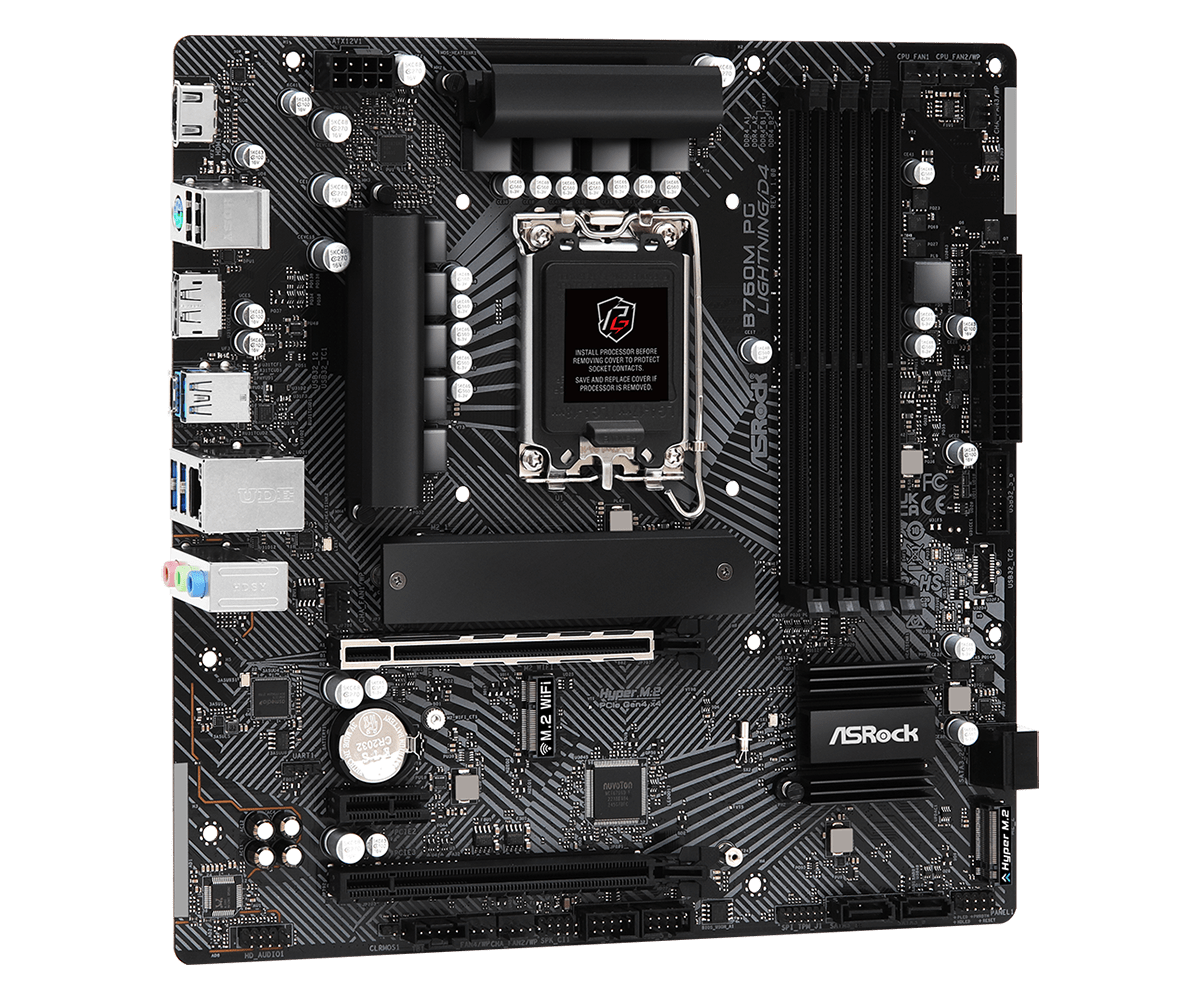

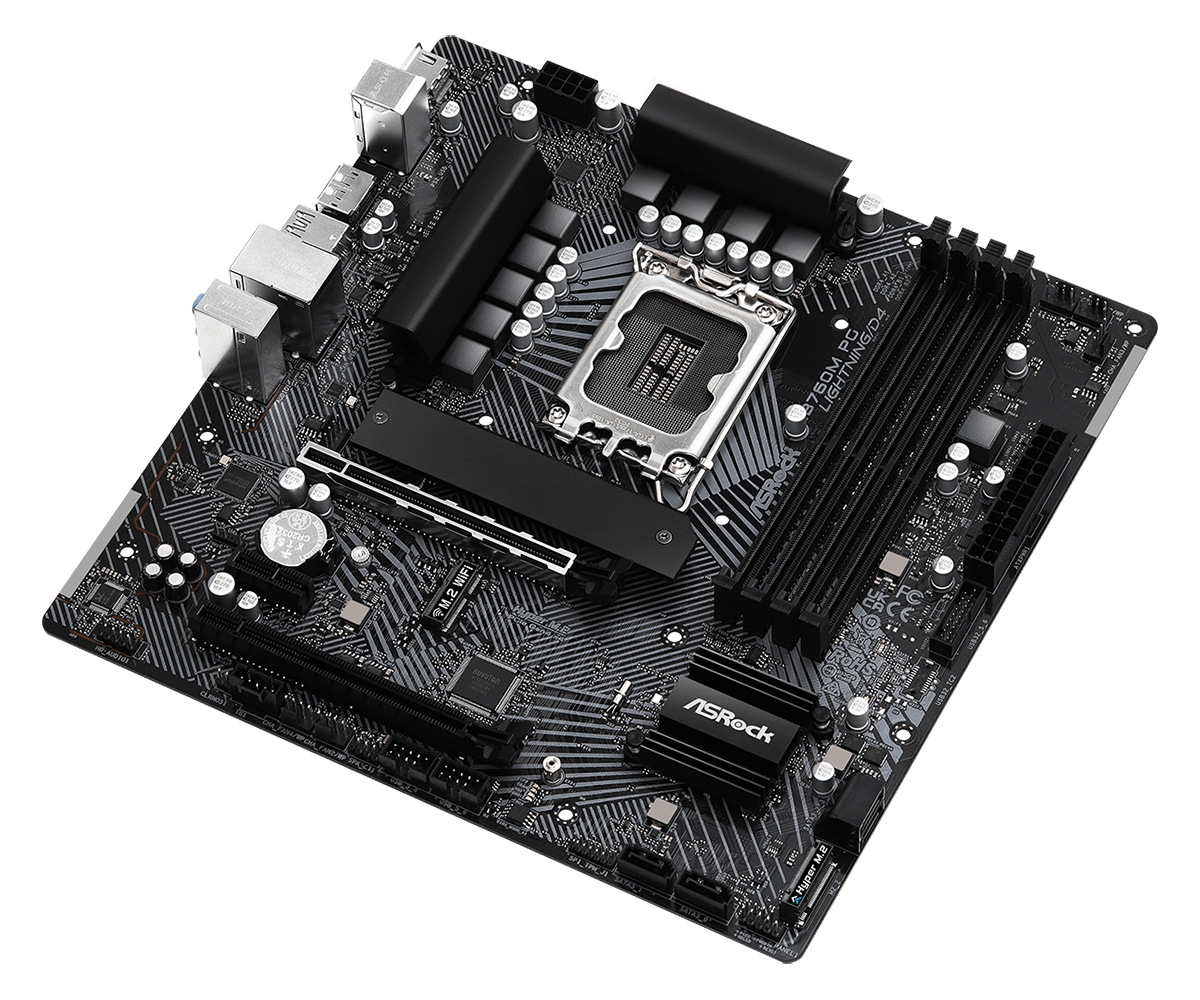

Placa de bază ASRock B760M PG LIGHTNING LGA1700
736.58 lei
Stoc epuizat
Report Abuse
Descriere
Placa de baza ASROCK B760M PG LIGHTNING LGA1700 4xDDR4, 2x PCIE 4.0 x16 1x PCIE 4.0 x1, 2x Hyper M.2, 1x HDMI 1x DP, 4x SATA 6GB/s, mATX
Livrare
Informații suplimentare
| PCI |
0 |
|---|---|
| Serial-or-Paralel |
No/No |
| Video-Connection |
HDMI/DP |
| Wi-FI |
No |
| Onboard-CPU |
No |
| RAID support |
Yes |
| Component for |
PC |
| DisplayPort version |
1.4 |
| Ethernet interface type |
Gigabit Ethernet |
| Memory channels |
Dual-channel |
| Processor manufacturer |
Intel |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
1 |
| Maximum internal memory |
128 GB |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| Audio output channels |
7.1 channels |
| Line-in |
Yes |
| Audio Chip |
Realtek ALC897 |
| Supported storage drive types |
HDD & SSD |
| Supported memory types |
DDR4-SDRAM |
| LAN controller |
Realtek RTL8111H |
| Number of M.2 (M) slots |
1 |
| PCI Express x16 (Gen 4.x) slots |
2 |
| DisplayPorts quantity |
1 |
| VGA (D-Sub) ports quantity |
0 |
| DVI-D ports quantity |
0 |
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| Model Chipset |
B760 |
| Gaming |
Nu |
| Format |
Micro-ATX (mATX) |
| Soclu Procesor |
Socket 1700 |
| Tip Memorie: |
DDR4 |
| Numar sloturi memorie |
4 |
| Memorie maxima |
128 GB |
| Tip slot interfata grafica |
PCIe 4.0 x16 |
| Chipset audio integrat |
Realtek |
| Canale audio |
7.1 |
| Wireless |
Nu |
| Bluetooth |
Nu |
| USB Type-C |
Da |
| HDMI |
Da |
| Thunderbolt |
Nu |
| Sloturi M.2 |
2 |
| RJ-45 LAN |
1 |
| Number of memory slots |
4 |
| Memory slots type |
DIMM |
| Unbuffered memory |
Yes |
| Supported storage drive interfaces |
M.2, SATA III |
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| Number of SATA III connectors |
4 |
| Front panel audio connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| PS/2 ports quantity |
1 |
| Motherboard form factor |
micro ATX |
| BIOS type |
UEFI AMI |
| RAID levels |
0, 1, 5, 10 |
| TPM connector |
Yes |
| Motherboard chipset family |
Intel |
| Processor socket |
LGA 1700 |
| Maximum number of SMP processors |
1 |
| ECC сompatibility |
Non-ECC |
| Motherboard chipset |
Intel B760 |
| BIOS memory size |
128 Mbit |
| Thunderbolt headers |
1 |
| PCI Express x1 (Gen 4.x) slots |
1 |
| Compatible processor series |
Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Microphone in |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Width |
244 mm |
| Depth |
24.4 mm |
| Producator |
ASROCK |
| Garantie |
